Rotary inclined tube furnace with touch screen
model:PT-1200TX

Rotary inclined tube furnace with touch screen

    Application:  Widely used in experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Introduction:
This rotary inclined tube furnace with touch screen is mainly used for homogeneous sintering of inorganic compounds (mineral compounds) in powder metallurgy, ceramics, refractories, batteries, new energy and other research.
Technical Parameter:

Product Name

Rotary inclined tube furnace with touch screen

Model

PT-1200TX

Display

Touch Screen

Furnace Strutrue

Double-layer housing

Cooling system

Air-cooling system





Tube Material

Reducer Quartz Tube



Tube Diameter

80-110-80mm(OD)/74-104-74mm(ID)

Heating zone length

750mm

Max Tem.

1200C

Working Tem.

≦1100℃

Temperature Control

PID automatic control via SCR power control

Heating Cruves

30 steps programmable

Safety Device

Ultra high temperature alarm

Chamber Material

Alumina fiber

Heating Rate

0--10℃/min

TemperatureControl Accuracy

±1℃

Furnace door structure

Split type

Heating element

Electric wire with mo

Power Supply

230-400V 50/60 HZ

Max output power

About 6kw

Tilting Angle

0-30℃

Tube rotating Speed

0-10rpm



Mobile box

The lower box is a movable box, and can also be used as a material rack, and the whole furnace is easy to

move.

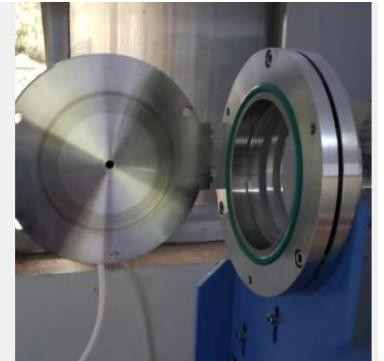

Sealing Flange

Right side is hinge vacuum flange



Left side is standard manual vacuum flange





Valve

Including on Check valve

















2-Channel Mass flow meter

(Touch Screen)

Two precision mass flow meters :

MFC1: 0 to 3 SLM(L/min), accuracy ±1.5 % F.S(full scale) N2

MFC2: 0 to 3 SLM(L/min), accuracy ±1.5 % F.S(full scale) CO2

Gas type according to your choice

3 stainless steel needle valves is installed on left side of bottom case to control 2 type gases mixing manually









Standard Accessories

Reducer Quartz tube ×1pc

Furance handle hook×1pc

Protective gloves x 1 pair

Sealing flange x1set

Allen key x 1 pc

Package

Wooden box

Warranty

One year limited warranty (Consumable parts such as

heating elements are not covered by the warranty)
