Rotary Tube Furnace

Rotary Tube Furnace

    Application:  Widely used in experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

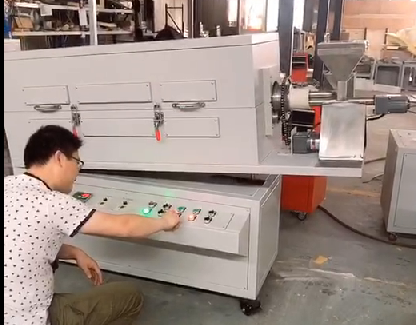

Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment

Technical Parameter:





Max. Temperature

1400℃ Max for < 1 hours

Continuous working Temperature


Heating Rate

Suggestion 0~10℃/min

Temperature Zone

300+400+300 mm

3 hot zones

Temperature Control Accuracy


Tube Diameter

Ф110 mm OD

Tube Material

Mulite tube

Tube sealing

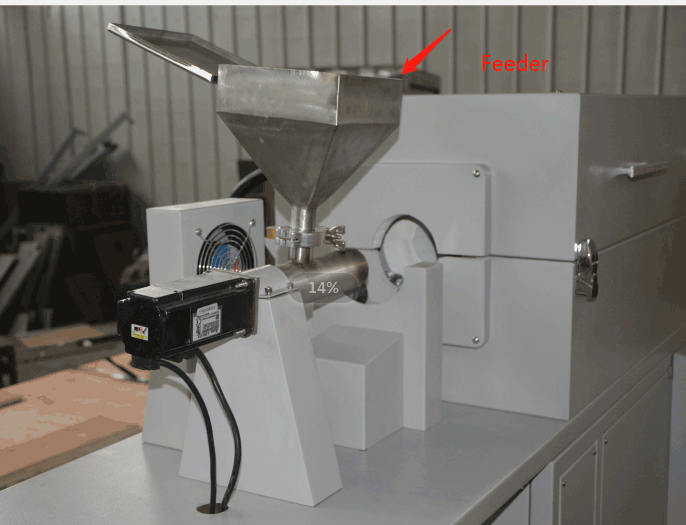

One side of tube is with feeder


The other side is with outlet

cover for tube and container for samples.

Heating Element

Sic heating elements

Tube Rotating Speed

0-10 RPM

Furnace Tilt Angle



S Type x 3 pcs

Tube Function

Rotating and tilt function.

Max. Power

15 KW

Working Voltage

AC 380V 3 phases, 50Hz

Temperature Control

3 sets PID automatic control via SCR power control

Heating curves

30 steps programmable

Chamber material

Alumina Fiber


One year limited warranty (Consumable parts such as heating elements and mulite tube are not covered by the warranty)
