model:PT-V1800

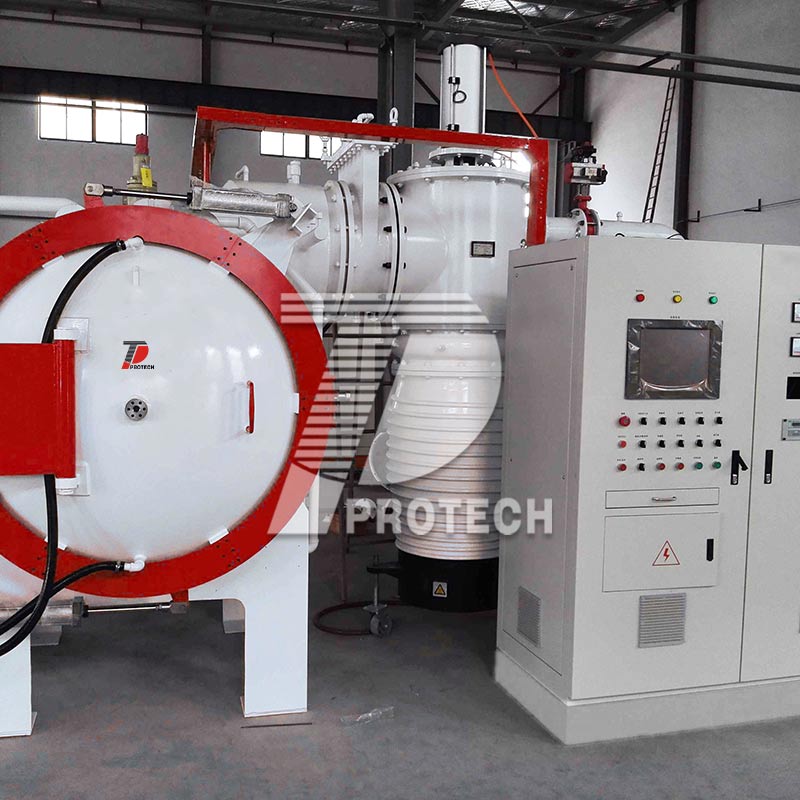

Oxide Ceramic Vacuum Sintering Furnace
Application: This furnace is specially developed for sintering oxide ceramic materials under vacuum environment. It reaches max 1800°C with stable heating and precise temperature control. The high-vacuum chamber removes air and impurities to avoid pores and oxidation,
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
Introductionk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnack3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThis furnace is specially developed for sintering oxide ceramic materials under vacuum environment. It reaches max 1800°C with stable heating and precise temperature control. The high-vacuum chamber removes air and impurities to avoid pores and oxidation, producing dense, high-purity ceramic parts.k3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnack3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnack3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacCore advantagesk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnack3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac1. Uniform heating for consistent sintering resultsk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac2. Vacuum atmosphere to boost ceramic density & surface qualityk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac3. Touch screen with editable multi-stage sintering curvesk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac4. Safe double-layer water-cooled furnace bodyk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac5. Customizable chamber size for lab or small mass productionk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Applicationk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
k3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Dental Ceramicsk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Zirconia crowns, bridges, dental frameworks and all-ceramic restorations.
2. Electronic Oxide Ceramicsk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Alumina substrates, insulating ceramic components, ceramic heat sinks.
3. Transparent & High-purity Ceramicsk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Yttria, magnesia transparent ceramics for optical and precision parts.
4. Industrial Wear-resistant Ceramicsk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Alumina ceramic cutting pieces, wear-resistant ceramic fixtures.
5. Laboratory R&Dk3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Sample sintering of new oxide ceramic materials for university labs & research institutes.
| Model |
Effective heating area sizek3cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(width * height * depth/mm） |
Maximum temperature(℃) |
Ultimate vacuum(pa) |
Temperature uniformity(℃) |
Pressure rise rate(Pa/h) |
| PT-V1800-96W |
400×400×600 |
1600-1800 |
10-3Pa-100pa |
±5 |
≤0.67 |
| PT-V1800-175W |
500×500×700 |
1600-1800 |
10-3Pa-100pa |
±5 |
≤0.67 |
| PT-V1800-324W |
600×600×900 |
1600-1800 |
10-3Pa-100pa |
±5 |
≤0.67 |
| PT-V1800-768W |
800×800×1200 |
1600-1800 |
10-3Pa-100pa |
±5 |
≤0.67 |
