model:PT-V1800

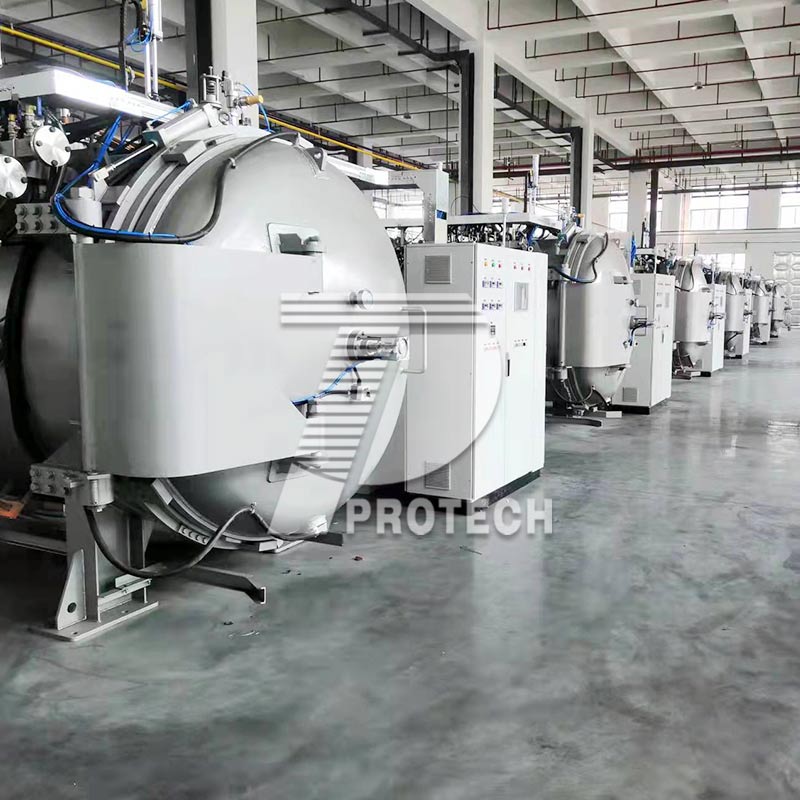

Silicon carbide reaction sintering furnace
Application: Silicon carbide reaction sintering furnace is used for vacuum sintering of metals such as cemented carbide, copper-tungsten alloy and alloy materials composed of refractory metals, as well as high-temperature sintering of ceramic materials and silicon carbide.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
Introduction9vGMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
9vGMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Silicon carbide reaction sintering furnace is used for vacuum sintering of metals such as cemented carbide, copper-tungsten alloy and alloy materials composed of refractory metals, as well as high-temperature sintering of ceramic materials and silicon carbide. The mechanical design of the equipment is advanced and reasonable, and the design and manufacturing comply with the corresponding national and industry standards and specifications to meet the user's requirements. Its supporting products and components are at the international advanced level, and can adapt to long-term, stable, safe and reliable production needs, and the equipment has a good energy-saving effect. The use, operation and maintenance of the equipment are convenient and simple, the shape is beautiful, safe and reliable, and the after-sales service is fast and efficient.9vGMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
9vGMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The composite ceramics produced by the silicon carbide reaction sintering furnace are widely used in military bulletproof, lithium battery new energy, semiconductors, sanitary and building ceramics, chemicals, power plants and automobiles.
9vGMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
| Model |
Effective heating area size9vGMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(width * height * depth/mm） |
Maximum temperature(℃) |
Ultimate vacuum(pa) |
Temperature uniformity(℃) |
Pressure rise rate(Pa/h) |
Loading capacity(kg) |
| PT-V1800-936W |
600*600*2600 |
1800 |
5Pa |
±5 |
≤0.67 |
600 |
| PT-V1800-1260W |
600*600*3500 |
1800 |
5Pa |
±5 |
≤0.67 |
800 |
| PT-V1800-1470W |
700*700*3000 |
1800 |
5Pa |
±5 |
≤0.67 |
1000 |
| PT-V1800-1960W |
700*700*4000 |
1800 |
5Pa |
±5 |
≤0.67 |
1200 |
| PT-V1800-2200W |
700*700*4500 |
1800 |
5Pa |
±5 |
≤0.67 |
1500 |
