model:PT-VX1100-54CLD

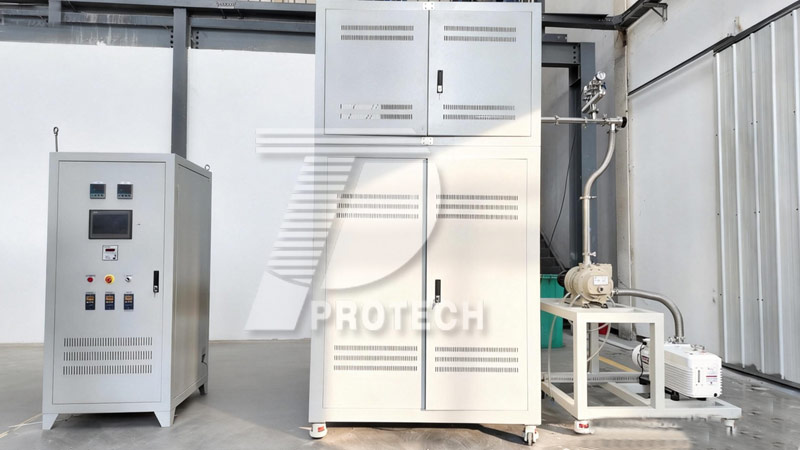

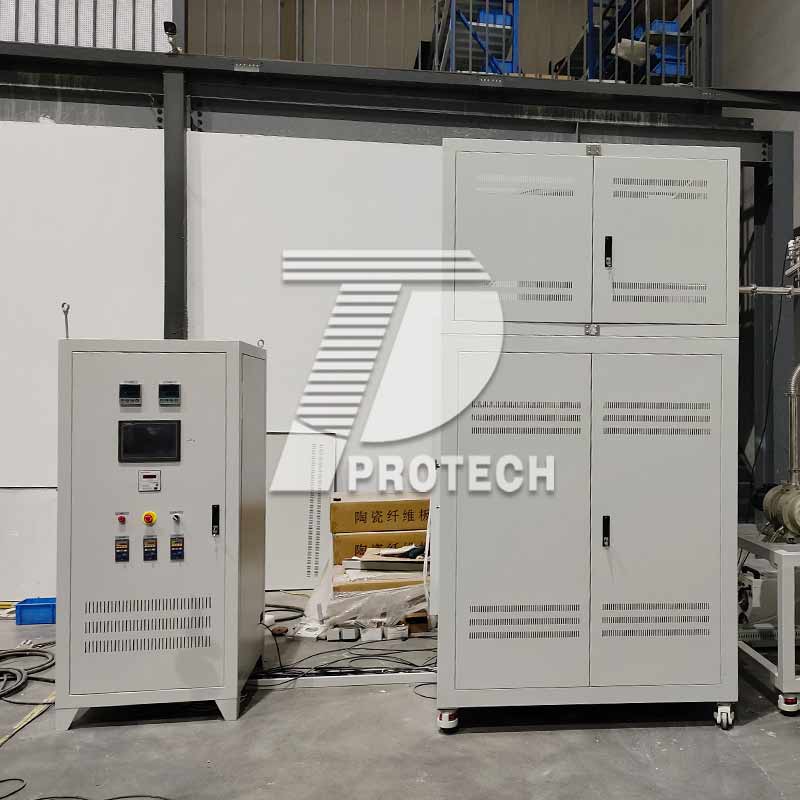

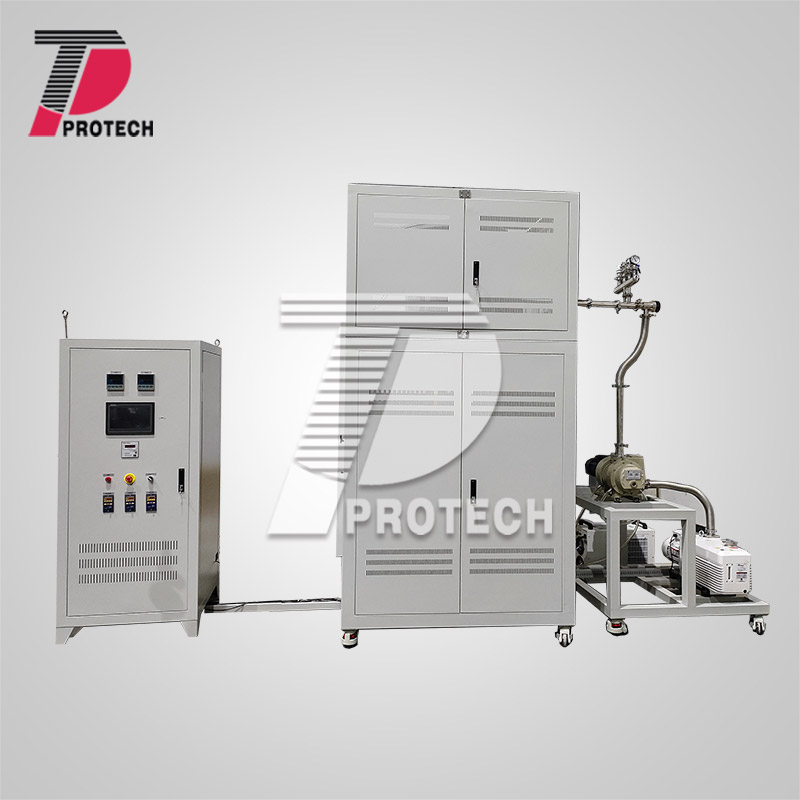

Vertical Dual-Temperature Zone Vacuum Furnace
Application: This vertical dual-zone vacuum furnace is engineered for high-precision, stable thermal processing of advanced materials. Its chamber is built with high-purity alumina polycrystalline fiber, which delivers exceptional insulation and minimizes heat loss for energy-efficient operation.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Introduction
This vertical dual-zone vacuum furnace is engineered for high-precision, stable thermal processing of advanced materials. Its chamber is built with high-purity alumina polycrystalline fiber, which delivers exceptional insulation and minimizes heat loss for energy-efficient operation.kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The upper heating zone is powered by silicon carbide rods, enabling continuous, non-stop operation at temperatures up to 1200°C. The lower zone features resistance wire heating (with a quartz tube liner) for reliable performance up to 1100°C.An intuitive touchscreen controller allows you to program descent stroke and speed, and the integrated 30-segment PID temperature control system ensures accuracy of ±1°C.With a customizable temperature gradient (10–20°C) and adjustable slow descent speed (0.01–2 mm/h), it is perfectly suited for crystal growth applications. Additional features include crucible rotation (0–20 r/min) and mechanical vertical movement (0–30 cm/min) to accommodate a wide range of experimental needs.kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The furnace achieves an ultimate vacuum level of ≤10 Pa (under cold, empty, and purified conditions) through a rotary vane pump + roots pump configuration, and can be filled with any inert gas via a dedicated inlet.
Applications
This vertical vacuum furnace is a versatile platform for high-temperature material research and manufacturing, with key uses including:kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnackDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacCrystal growth: Enables the growth of high-quality single crystals (semiconductors, oxides, and other functional materials) through its precise temperature gradient and ultra-stable slow descent control.kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnackDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacAdvanced materials sintering: Provides a controlled vacuum environment for sintering ceramics, magnetic components, powder metallurgy parts, rare earth materials, and precious metal alloys.kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnackDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacHeat treatment: Ideal for annealing, brazing, and degassing metals and alloys to enhance mechanical properties and eliminate contaminants.kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnackDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacMaterial analysis & testing: Supports thermal performance evaluation and phase analysis of novel materials under high-temperature and vacuum conditions, accelerating R&D progress.
kDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnackDYMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical parameters
| project |
Specifications |
| Structural type |
Vertical dual-temperature zone structure |
| Effective furnace size |
Inner diameter 90mm * height 850mm |
| Furnace material |
alumina polycrystalline fiber |
| Upper heating zone heating element |
silicon carbide rods |
| Upper heating zone operating temperature |
1200℃ |
| Lower temperature zone heating element |
resistance wire |
| Lower temperature zone operating temperature |
1100℃ and below |
| control Panel |
The touchscreen control panel allows users to set and control the descent stroke and speed. |
| Temperature control system |
It can set 30 temperature ranges and uses PID control to adjust the temperature, with a temperature control accuracy of ±1℃. |
| Crystal growth temperature gradient |
Adjustable between 10℃ and 20℃ |
| slow descent speed |
0.01-2 mm/h (adjustable) |
| Slow descent |
300mm |
| Crucible rotation speed |
0-20r/min |
| Up and down movement speed of the mechanical system |
0-30cm/min |
| heating rate |
0-10℃/min |
| Ultimate vacuum |
≤10Pa (empty furnace, cold state, purified) |
| Vacuum unit |
Rotary vane pump + Roots pump unit |
| Vacuum gauge |
Resistance vacuum gauge |
| Gas can pass through |
The furnace body has a pre-installed air inlet, which can be used to pass any inert gas. |
