All products are customizable, leave message immediately, we will reply as soon as possible.
The 1200 ℃ six sided heating muffle furnace is mainly used for material degreasing, pre sintering, sintering, etc. The use of simultaneous heating on six surfaces improves heating efficiency and results in a more uniform temperature field.Click to view more models of Box Furnace!Or click to consult online customer service for more product details!

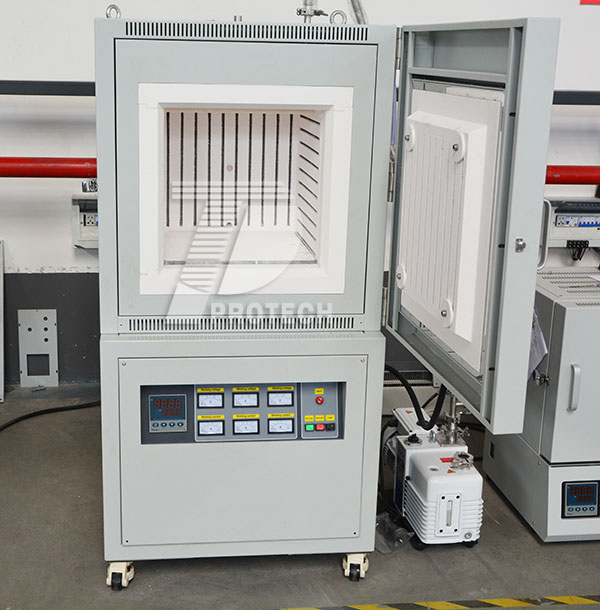

Actual photo of 1200 ℃ six sided heating box furnace
3. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4. Power control with 30 segments programmable.
| Furnace Shell | Carbon Steel |
| Chamber Structure | Side door |
| Display | LED or LCD (Can be customized according to customer needs) |
| Max. Temp. | 1200°C |
| Working Temperature | ≤1100°C |
| Heating Rate | Suggestion 0~10°C/min (Max. 20°C/min ) |
| Temp. Control Accuracy | ±1°C |
| Inside Chamber Size | 400x400x400mm Can be customized according to customer needs |
| Effective Volume | 64 L Customizable |
| Heating Element | Resistance wire |
| Thermocouple | N Type |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Alumina Fiber |
| Customized Function | Gas Port on the back side of furnace shell |
| Warranty | One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
