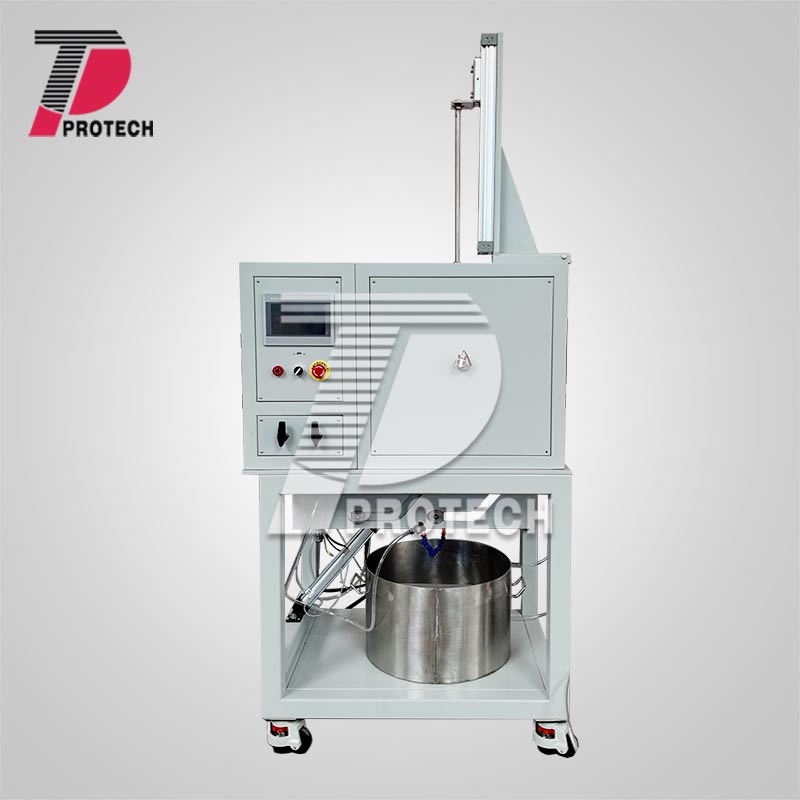

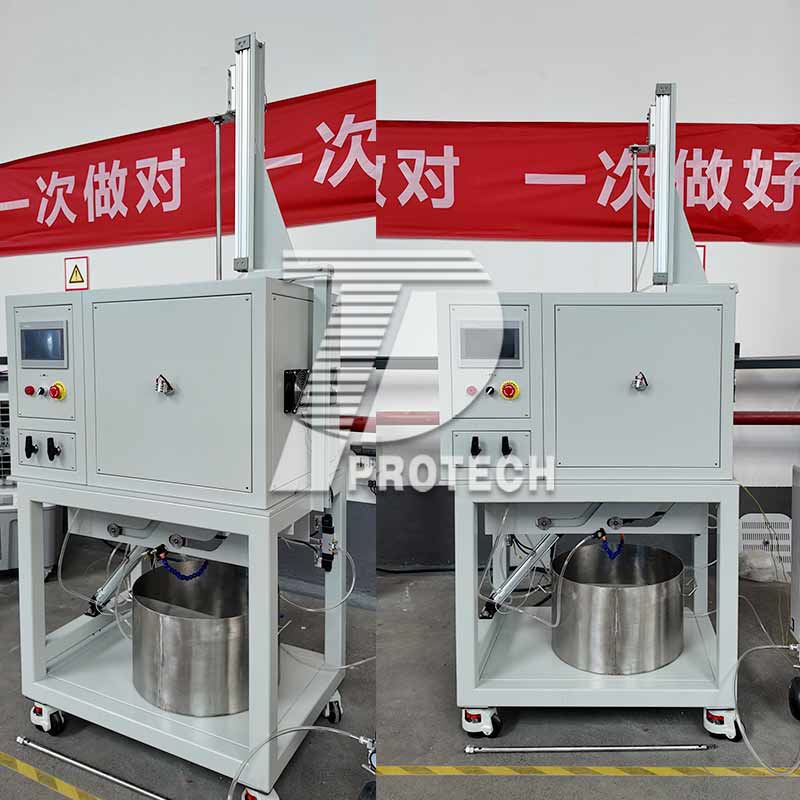

The Vertical Box-Type Quenching Furnace is an advanced thermal processing system engineered for precision, efficiency, and reliability. Its robust structure includes a dual-section frame—supporting the heating chamber, lifting mechanism, and integrated spray cooling system—along with a dedicated control unit housing intelligent electrical and power distribution components. The furnace employs high-purity silicon carbide heating elements and an energy-efficient alumina polycrystalline fiber chamber, ensuring superior thermal uniformity and low energy consumption. With a fully automated lifting mechanism and dual air/water quenching capability, the system enables rapid heating and controlled cooling processes. Operation is simplified through a centralized 7-inch touchscreen interface, which offers real-time monitoring and adjustment of temperature, flow rates, and movement, all supported by S-type thermocouples and PID control for exceptional accuracy.
Ideal for a wide range of industrial heat treatment processes, this box-type quenching furnace is widely used in metallurgy, automotive, aerospace, and tool manufacturing sectors. It performs critical operations such as hardening, tempering, and quenching of metal components including gears, shafts, molds, and structural parts. The flexible spray cooling system allows users to switch between air and water quenching, accommodating different material requirements from alloy steels to non-ferrous metals. With built-in safety protections like over-temperature and heating element burnout alarms, this system ensures both process repeatability and operational safety, making it suitable for both laboratory research and high-volume production environments.
Technical Parameters：
| Model | PT-MZ1200-12CX |
| Furnace structure | Vertical box type |
| Heating element | High-quality silicon carbon rods |
| Max.temperature | 1300℃ |
| Working temperature | ≤1200℃ |
| Temperature calibration | Equipped with temperature calibration function. (The purpose is: if the furnace temperature deviates from the actual temperature measured by the external thermocouple, the temperature deviation value can be quickly entered on the touch screen to achieve control and adjustment of the furnace temperature.) |
| Furnace chamber size | 200*300*200mm(Width*Height*Depth) |
| Constant temperature zone | Length ≥ 200mm (temperature uniformity ≤ ±3℃) |
| Working time | 5 hours |
| Workpiece size | ≤Φ40mm×length 150mm (the workpiece is wrapped with 10mm cotton blanket) |
| Workpiece weight | 2kg |
| Thermocouple | S type |
| Reserved temperature measurement hole | Side reserve. |
| Heating rate | 0-10℃/min |
| distribution cabinet | Furnace side |
| Controller | 7-inch touch screen, intelligent PID program temperature control |
| Temperature control accuracy | ±1℃ |
| Insulation material | Alumina polycrystalline fiber |
| Temperature control protection | With over-temperature and burnout protection function |
| Shell structure | Double shell structure |
| Lifting structure | The electric lifting system on the top drives the material to rise and fall quickly and position automatically. |
| Workpiece hanger/support ring | Made of 601 nickel-based alloy rod, about 1 meter long (subject to actual design), and can withstand 1200℃ for long-term use. |
| Lower insulation plug | Electric lifting + sliding. |
| Water/air spray structure | Share 1 set, bottom spray water/air, water spray and air jet are interchangeable. |
| Water flow meter | 1 set |
| Gas flow meter (can pass nitrogen/argon/compressed air) | 1 set |
| water trough | Material 304, diameter 500mm, height 300mm, with a drain valve at the bottom. |
