All products are customizable, leave message immediately, we will reply as soon as possible.
PT-M600 high temperature muffle furnace uses aludirome as heating element. Max. temperature inside furnace can be reached at 600℃ . The furnace temperature profile can be set up by 30 segments and run automatically by the 518P type advanced temperature controller. The furnace has no door, it is specially designed for small part heat treatment.Click to learn more about Muffle Furnace!

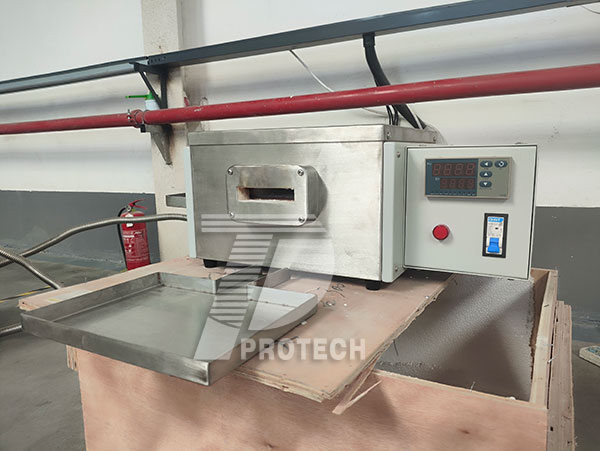

Short term heating mini fuse real-life photos
| Model | PT-M600 |
| Display | LED |
| Limiting Temperature | 600℃ |
| Working Temperature | ≤550℃ |
| Heating Rate | 0~20℃/min(suggest 0~10C/min) |
| Accuracy | ±1℃(high temperature state) |
| Chamber size | 90*20*180 mm(w*h*d) Customizable |
| Heating Element | Resistance wire with Mo |
| Thermocouple | N Type |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Alumina Fiber |
| Warranty | One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
Short term heating mini fuse real-life photos
