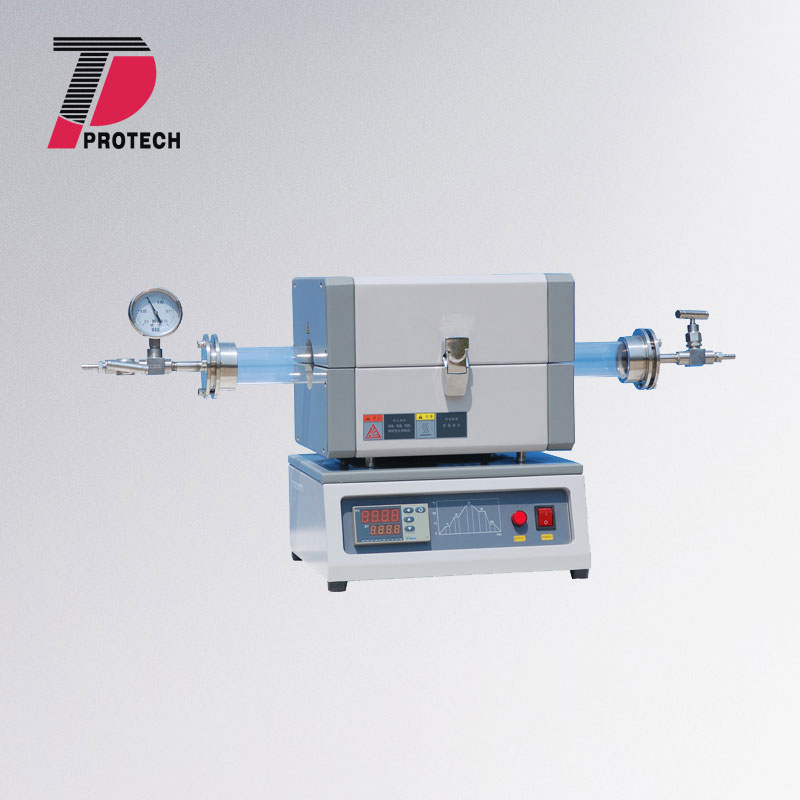

1200℃ Mini tube furnace

1200℃ Mini tube furnace

    Application:  Widely used in experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

1200℃ mini tube furnace is a laboratory equipment used for various heat treatment materials. The main industries are follows: Rare earth preparation, electronic lighting, crystal annealing, biological ceramics, electronic ceramics, special alloy, magnetic materials, precision casting industry such as vacuum sintering, protective atmosphere sintering, vacuum coating, CVD experimental measurement, material composition, ect.

1.Features of 1200 Mini tube furnace :
(1). Operation Temperature: 1100℃ ( 1200℃ for short time).
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
(3). Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
(5). Power control with 30 segments programmable.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Technical parameters of 1200C Mini tube furnace :
Model PT-1200T
Display LED
Limit temperature 1200℃
Working temperature ≤1100℃
Heating rate Suggestion 0~20℃/min
Temperature accuracy ±1℃
Temperature zone Single
Chamber size Φ50×200(mm)
Heating element electric wire with mo
Thermal couple K Type
Rated power 1.2 KW
Working voltage AC 110-480V  50/60 Hz
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Warranty 12 month (exclusive wearing part)
Mini tube furnace
1200C Mini tube furnace can be customized according to customers’requirements.
