Process Optimization and Cost Control of Furnace Heat Treatment for New Energy Materials

Heat treatment is the core post-processing process of new energy materials, and the targeted optimization of tube furnace and atmosphere furnace processes can effectively improve material electrochemical performance, consistency and production efficiency, while realizing precise control of production costs.

With the rapid development of new energy industries such as lithium-ion batteries, hydrogen energy, and photovoltaic power generation, ternary cathode materials, lithium iron phosphate, silicon-carbon anode materials, and hydrogen storage materials have put forward higher requirements for heat treatment processes. Tube furnaces and atmosphere furnaces serve as the mainstream processing equipment for sintering, annealing and surface modification of new energy materials.

Their process parameters, internal atmosphere environment and automatic operation mode directly determine the final performance quality and comprehensive manufacturing cost of finished materials. This paper systematically summarizes the key pain points of traditional heat treatment processes, proposes targeted and implementable process optimization schemes, and explores efficient lean cost control strategies, aiming to provide practical technical references for industrial mass production and high-quality manufacturing of new energy materials.

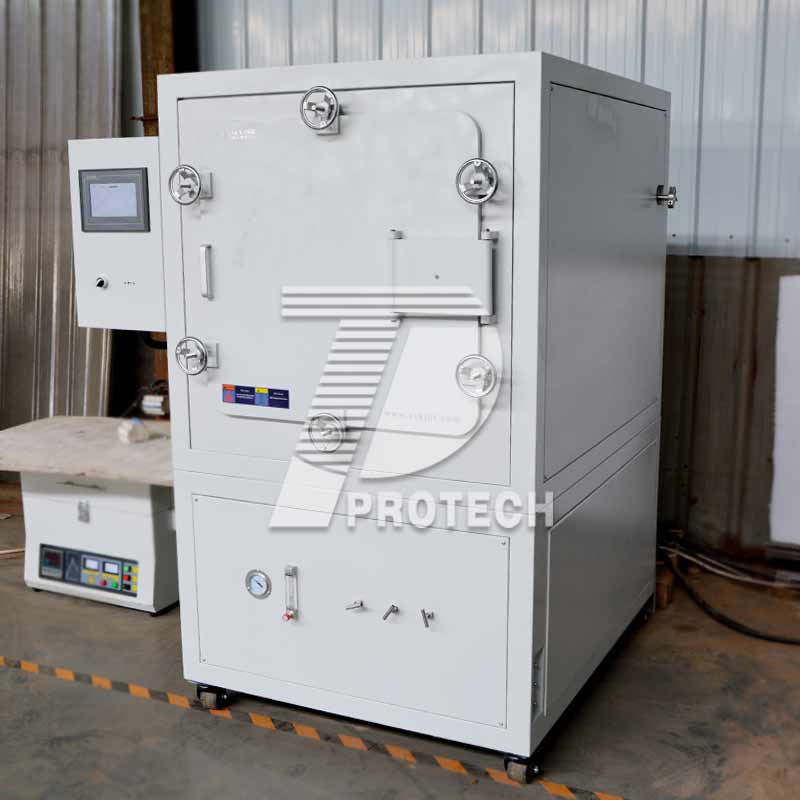

atmosphere furnace,atmosphere muffle furnace

1. Core Application Characteristics of Tube Furnace and Atmosphere Furnace

Tube furnaces and atmosphere furnaces have unique advantages in atmosphere controllability and temperature uniformity, which make them irreplaceable core equipment for high-purity and high-performance new energy material heat treatment.

Different from traditional industrial furnaces with open heating structures, tube furnaces and atmosphere furnaces support fully closed-end heat treatment. They can strictly stabilize the oxygen content, moisture content and gas flow rate in the furnace cavity, effectively avoiding common defects such as material oxidation, surface decarburization and impurity contamination during high-temperature heating.

The tube furnace features simple mechanical structure, flexible real-time temperature adjustment and fast atmosphere replacement. It is highly suitable for small-batch, multi-variety trial production and precision heat treatment in laboratory and pilot stages. Typical applications include low-temperature annealing of silicon-carbon anode materials and surface modification of battery separator materials.

The atmosphere furnace is oriented to continuous and batch industrial production, with large effective furnace volume and highly uniform temperature field distribution. It fully meets the mass sintering requirements of core battery materials such as ternary cathode materials and lithium iron phosphate. In the production of hydrogen storage alloys and photovoltaic semiconductor materials, its low-vacuum and high-purity atmosphere simulation capability can perfectly match the precise crystal transformation and phase formation requirements of high-end new energy materials.

However, there are widespread technical and operational problems in actual industrial application of the two types of equipment. Unreasonable temperature gradient setting, insufficient atmosphere exchange efficiency, and mismatched heating and holding time are the three major pain points.
These problems directly lead to inconsistent batch performance of finished materials, low energy utilization efficiency of equipment, and elevated unit production cost, which seriously restrict the large-scale, low-cost and high-quality development of new energy material manufacturing industry.

2. Key Process Optimization Strategies for Heat Treatment

Taking temperature field calibration, atmosphere parameter adjustment and heating curve optimization as the core can significantly improve the heat treatment consistency and yield of new energy materials.

The heat treatment process of new energy materials is extremely sensitive to process parameters. Tiny changes in temperature, atmosphere composition and holding time will directly affect the material crystal structure, specific surface area and electrochemical activity. Therefore, systematic and refined process optimization is the core key to improving product comprehensive quality and batch stability.

First, optimize the temperature field distribution and heating curve.
Traditional fixed single heating curves are prone to local overheating or insufficient heating in the furnace, resulting in uneven material crystallization and inconsistent internal structure. By adopting segmented temperature control technology, independent heating rates and holding temperatures are set for the preheating stage, high-temperature sintering stage and constant-temperature cooling stage according to the physical and chemical characteristics of different materials.
This optimization can control the temperature difference in the furnace cavity within ±1℃. For tube furnaces, the rotating furnace tube design is adopted to realize 360° uniform heating of materials. For large-scale industrial atmosphere furnaces, the layout of internal heating elements is optimized to eliminate temperature dead zones, ensuring consistent crystallization degree of materials placed in different positions of the furnace body.

Second, precisely control the atmosphere environment parameters.
Oxygen content, nitrogen/hydrogen/argon flow rate and atmosphere replacement frequency are the core parameters that determine material purity and final performance. For oxidative sintering of battery cathode materials, a closed-loop gas supply system is adopted to stably control the internal oxygen concentration at 20%-22% to ensure complete material oxidation and uniform grain growth.
For the reduction treatment of anode materials, high-purity argon is used for vacuum pre-replacement to reduce the oxygen residual rate in the furnace to below 10ppm, thoroughly avoiding material oxidation failure and performance degradation. At the same time, the gas flow rate matching scheme is optimized to prevent heat loss and energy waste caused by excessive gas flow, as well as residual impurity defects caused by insufficient gas circulation.

Third, optimize the feeding mode and process cycle.
Dense stacking of materials in traditional feeding mode easily leads to uneven internal and external heating, affecting batch consistency. A graded feeding and layered placement mode is adopted to loosen material accumulation and ensure uniform heat absorption of each material particle.
On the premise of guaranteeing material electrochemical performance and structural stability, invalid redundant holding time in the process is shortened. Equipped with intelligent temperature rise and fall linkage program, the single-batch process cycle is reduced by 15%-20%, which effectively improves the continuous production capacity and operational efficiency of the equipment.

3. Low-Cost Control Measures for Heat Treatment Process

On the premise of guaranteeing material heat treatment quality, equipment energy consumption optimization, gas cost reduction and failure rate control are the three core dimensions of heat treatment cost control for new energy materials.

The heat treatment link accounts for 30%-40% of the total manufacturing cost of new energy materials, which is the main cost node in the whole production process. The core cost components include electric energy consumption, high-purity industrial gas consumption, daily equipment maintenance cost and product scrap loss cost. Scientific and refined cost control can effectively reduce invalid expenditure and greatly improve the economic benefits of production lines.
Optimize equipment energy consumption to reduce power cost.

Most traditional furnaces adopt continuous constant-power heating mode, with serious surface heat loss and low energy utilization rate. By configuring intelligent self-adaptive temperature control systems and furnace body heat preservation and waste heat recovery devices, automatic power adjustment according to real-time furnace temperature changes is realized.

The waste heat generated in the cooling stage is fully recycled and reused for preheating of the next batch of materials, reducing the comprehensive power consumption by more than 25%. In addition, regular calibration of temperature sensors and maintenance of furnace body heat preservation layers can effectively avoid energy waste caused by temperature detection deviation and furnace body heat leakage.

Optimize gas usage strategy to cut raw material cost.

High-purity inert gas and reducing gas are the main consumables for atmosphere heat treatment, and traditional full-open continuous gas supply mode causes serious gas waste and high production cost. The optimized process adopts vacuum pre-pumping + graded precise gas supply technology.

The gas flow is adjusted in real time according to the furnace volume and different process stages, reducing the gas consumption per unit product by about 30%. At the same time, a complete gas circulation purification system is configured to realize filtration, purification and recycling of qualified tail gas, further reducing the comprehensive gas use cost.

Reduce product scrap and equipment maintenance costs.
Process optimization significantly improves the batch consistency of material heat treatment, effectively reducing defective products and scrap losses caused by process fluctuations and parameter deviations. Establishing a standardized regular equipment maintenance system is essential for stable operation.

Regularly clean furnace body attachments, detect overall air tightness and replace aging vulnerable parts to avoid equipment failure and process abnormality. This measure reduces unplanned downtime loss and extends the service life of tube furnaces and atmosphere furnaces, realizing a significant reduction in long-term comprehensive operation cost of equipment.

4. Industrial Application Effect and Future Prospect

The optimized tube furnace and atmosphere furnace heat treatment process can simultaneously realize quality improvement and cost reduction, with high industrial promotion value and broad application prospects.

After the optimized process is applied to the mass production of lithium iron phosphate and ternary cathode materials, the core performance indicators of materials such as capacity retention rate and cycle stability are significantly improved. The product batch pass rate is increased from 92% to 99%, and the comprehensive production cost per ton of materials is reduced by 8%-12%, achieving remarkable industrial application results.

With the continuous upgrading of new energy material systems towards high energy density, long cycle life and low-carbon environmental protection, higher precision and intelligence requirements are put forward for supporting heat treatment processes and equipment.

In the future, the deep integration of intelligent monitoring, digital twin and automatic control technology will realize full-process intelligent closed-loop control of tube furnace and atmosphere furnace heat treatment. This will further improve process precision and production efficiency, and promote the high-quality, low-cost and sustainable industrial development of new energy materials.
