Industrial Furnace Process Full Analysis: Technical Comparison from Vacuum Sintering to CVD Coating

Introduction

Vacuum sintering and CVD coating are the two most critical thermal processing technologies in modern industrial furnaces, serving entirely different goals: one optimizes bulk material densification, the other enhances surface performance. Both rely on high-temperature, closed environments and precise control systems, but they differ fundamentally in working principle, process parameters, material adaptability, and application scenarios. This article clearly defines the core characteristics of vacuum sintering and CVD coating, compares their technical advantages and limitations, and provides a clear selection guide for industrial production.

1. What Is Vacuum Sintering?
Vacuum sintering is a high-temperature densification process that uses atomic diffusion in a vacuum environment to eliminate pores and improve the strength and density of powder materials.
It is carried out in a sealed vacuum furnace, usually at a vacuum level of 10⁻²–10⁻⁵ Pa. The material is heated below its melting point so that particles bond and densify without melting. This process effectively prevents oxidation, carbon deposition, and gas inclusions, making it ideal for high-performance alloys and ceramics.
The main purpose of vacuum sintering is to improve the overall density and mechanical properties of bulk materials.
Typical steps include powder pretreatment, vacuum pumping, step-by-step heating, sintering holding, pressure maintenance, and controlled cooling. It is widely used in cemented carbide, high-entropy alloys, structural ceramics, and 3D-printed metal parts.

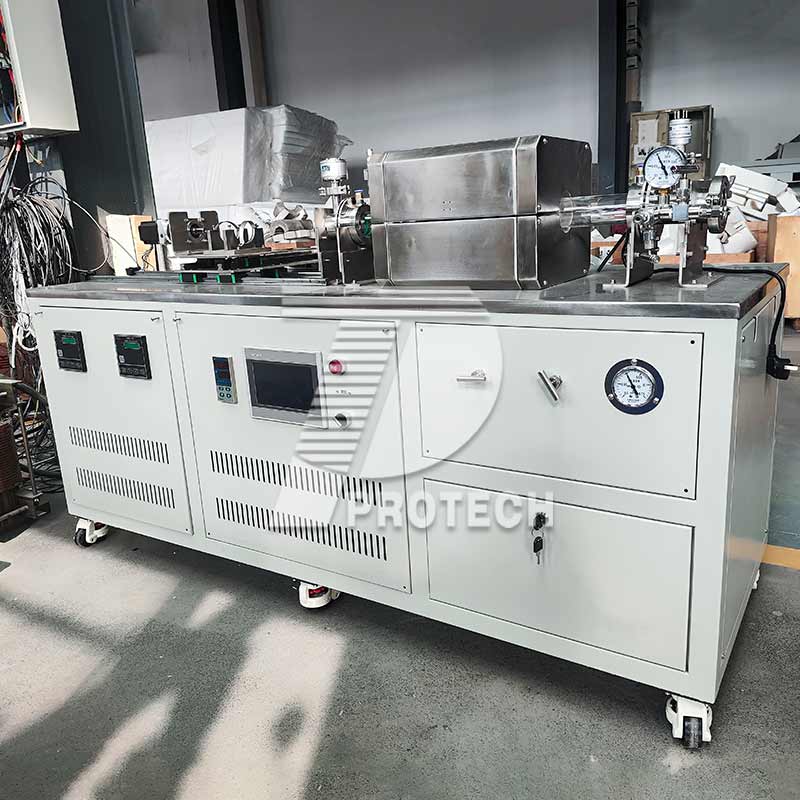

2. What Is CVD Coating?
CVD coating is a chemical vapor deposition technology that forms a thin functional film on the substrate surface through high-temperature gas-phase reactions.
In a closed reaction furnace, gaseous precursors are introduced and decomposed or reacted at 800–1500 ℃. Solid compounds deposit uniformly on the workpiece surface to form wear-resistant, corrosion-resistant, or high-temperature films.
CVD coating focuses on surface modification without changing the internal structure of the substrate.
Compared with physical deposition methods, CVD offers better uniformity, stronger adhesion, and excellent coverage on complex surfaces. It is widely used in cutting tools, aerospace parts, semiconductor wafers, and optical components.

3. Core Differences Between Vacuum Sintering and CVD Coating

3.1 Working Principle
Vacuum sintering is a physical densification process based on atomic thermal diffusion.
No chemical changes occur; only particle bonding and pore elimination take place. The process is mild and requires no additional chemical reagents.
CVD coating is a chemical reaction process that generates new substances on the surface.
It depends on gas decomposition and synthesis, requiring precise control of temperature, gas flow, and pressure to ensure coating quality.

3.2 Process Parameters
Vacuum sintering uses high vacuum, solid powder materials, long cycles, and high temperatures.
Typical conditions: 1100–1800 ℃, 10⁻²–10⁻⁵ Pa, 6–24 hours.
CVD coating uses low vacuum, gaseous precursors, short cycles, and moderate temperatures.
Typical conditions: 800–1500 ℃, 10⁻¹–10⁻³ Pa, 2–8 hours.

3.3 Applicable Materials
Vacuum sintering is designed for powder compacts and bulk materials that require overall densification.
Suitable for cemented carbide, refractory metals, ceramics, and 3D-printed parts.
CVD coating is designed for formed solid substrates that need surface performance improvement.
Suitable for tools, turbine blades, wafers, and precision parts.

3.4 Advantages and Limitations
Vacuum sintering provides high purity, uniform internal structure, and excellent bulk mechanical performance.
Limitations: long cycle, low efficiency, cannot modify surface functions.
CVD coating provides uniform, dense, high-performance surface films with strong adhesion.
Limitations: high precursor cost, toxic gas risk, strict sealing requirements.

4. How Do They Affect Production Efficiency?
Vacuum sintering determines material integrity and structural performance, which directly affects product reliability.
Insufficient sintering leads to high porosity, low strength, and early failure.
CVD coating determines surface life, wear resistance, and high-temperature stability.
Poor coating causes rapid wear, peeling, and insufficient protection.

5. How to Choose the Right Process?

Choose vacuum sintering if you need to improve the density, strength, or internal structure of bulk materials.
Prioritize it for powder metallurgy, ceramics, refractory metals, and 3D printing components.
Choose CVD coating if you need to enhance surface hardness, wear resistance, or corrosion resistance.
Prioritize it for cutting tools, engine parts, semiconductor devices, and precision molds.

6. Summary
Vacuum sintering and CVD coating are complementary core technologies in industrial furnace engineering.
Vacuum sintering builds high-performance bulk materials through physical densification. CVD coating upgrades surface functions through chemical deposition. They have no absolute superiority; the right choice depends on product goals, material type, and cost budget. Mastering their differences helps enterprises optimize processes, improve quality, and enhance competitiveness.
