Vacuum annealing furnace
model:PT-1200V

Vacuum annealing furnace

    Application:  It is widely used in the heat treatment of metal materials under low vacuum, reducing and protective atmosphere, and can also be used in the heat treatment of special materials. The thermal insulation material adopts alumina fiber, which has a good thermal insulation and energy saving effect; the whole machine has a novel structure and is easy to operate.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Description：
Protech series Vacuum annealing furnace is widely used for heat treatment of metal materials in high vacuum,recursive,protective atmosphere,also can be used for heat treatment of special materials such as carbonization fiber with excellent thermal insulation.Vacuum Reservoir with water cooling system.The vacuum can reach 7x10^-3 Pa with diffusion pump or molecular pump.

Features of vacuum laboratory furnace:
1.Double layer steel casting with air cooling fans to keep case temperature lower;
2.High purity fiber alumina board chamber for the best energy saving;
3.The temperature is controlled by precision SCR(Silicon Controlled Rectifier) with accuracy +/-1 C and 30 segments programmable control;
4.The fast rate of temperature increasing.
5.The furnace chamber is ceramic fiber brick with excellent thermal insulation,vacuum reservoir with water cooling system; 6.The furnace is equipped with the function of power off automatically when door furnace opening,function of over temperature alarm,etc.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of vacuum laboratory furnace:

Chamber dimension 150x150x150mm
Max. temperature 1600℃
Working temp. <1600℃
Furnace atmosphere Nitrogen,Argon and other inert gas
Heating rate 0-10℃/min
Temp. control 30 steps programmable and PID automatic control
Vacuum degree 10-3 torr
Temp. accuracy +/-1℃
Heating element MoSi2 heating elements
Voltage 415V 50HZ
Furnace chamber Stainless steel
Furnace structure Heavy duty double layer structure with cooling fan
Payment term T/T in advance
Shipment by Air, Sea, etc.
Delivery time 3-7 working days
Packing Packing - Plastic paper inside, Polyfoam filled,
Wooden case outside

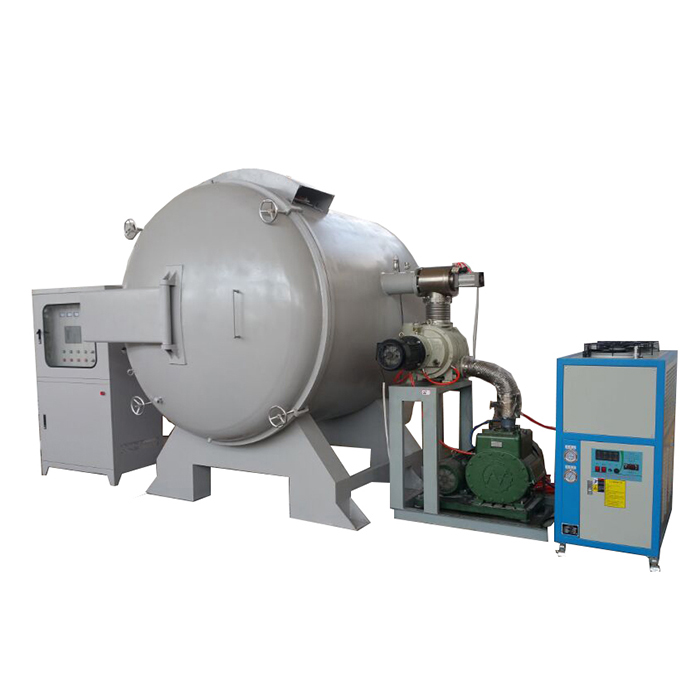

vacuum furnaces for sale

Vacuum laboratory furnace can be customized according to customers’requirements.
