Detailed Parameters Of The Product
Description:

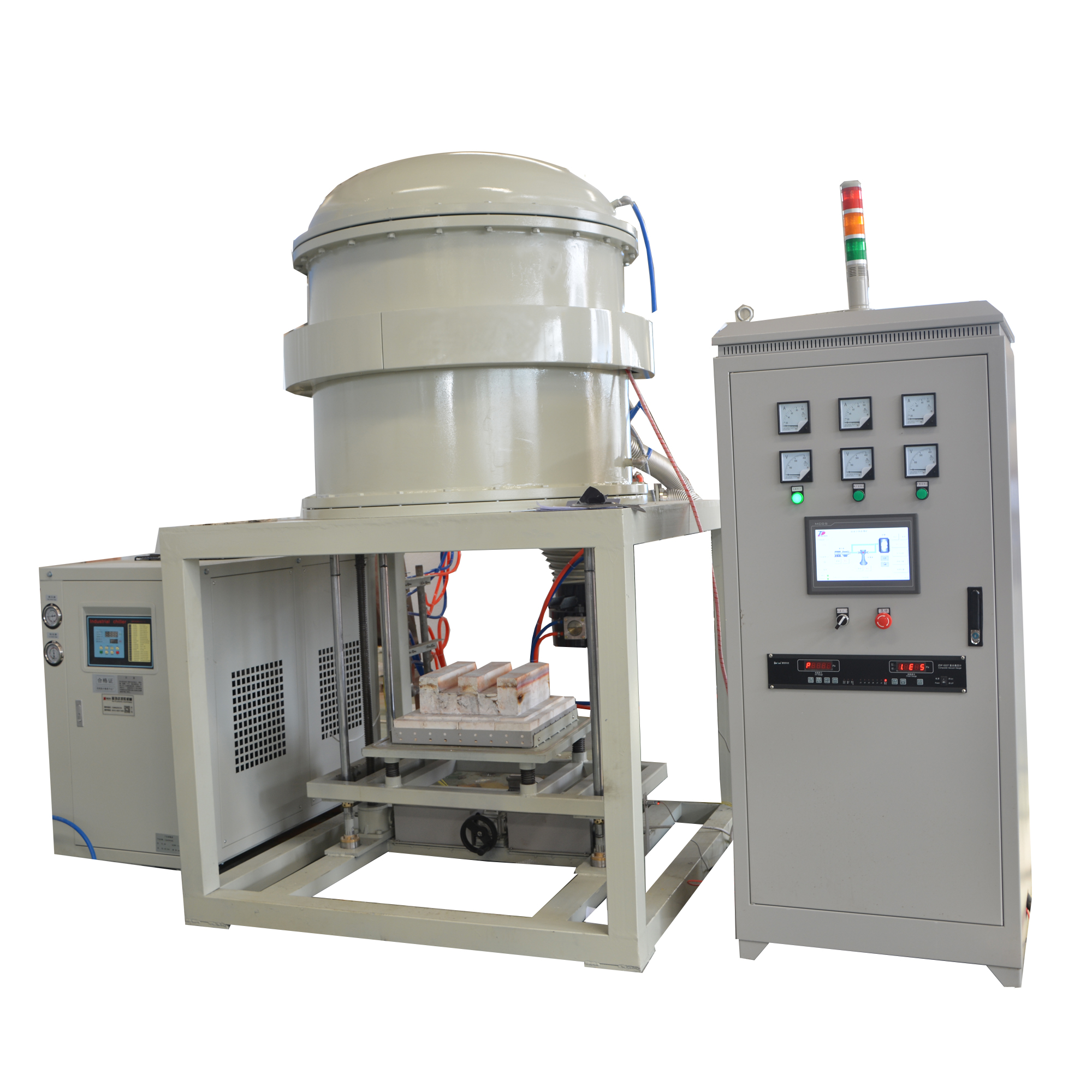

Vacuum hot pressing furnace integrated vacuum system,high temperatures heating, and mechanical pressure together, to force mechanical pressure in high temperatures heating and vacuum environment,mainly used for inorganic materials, cemented carbide, ceramics, composites, etc sintering treatment under vacuum (or atmosphere) hot conditions.
Technical Parameters:
Model |
Heating Zoon
(mm) |
Max Temperature
(℃) |
Max Vacuum Degree
(Pa) |
Heating Rate
(Kw) |
Mechanical Pressure
(T) |
PT-V1600- 10R |
Ф100×120 |
2000 |
6.7x10-3 |
15 |
10 |
PT-V1600-16R |
Ф160×160 |
2000 |
6.7x10-3 |
40 |
20 |
PT-V1600-25R |
Ф250×250 |
2000 |
6.7x10-3 |
60 |
30 |
PT-V1600-32R |
Ф320×320 |
2000 |
6.7x10-3 |
100 |
50 |
PT-V1600-40R |
Ф400×300 |
2000 |
6.7x10-3 |
160 |
100 |
PT-V1600-60R |
Ф600×450 |
2000 |
6.7x10-3 |
250 |
200 |
Other sizes can be designed and manufactured according to customer requirements.
