| Model | PT-VS-2200-1.6CLG |
| Furnace Part | |
| Display |

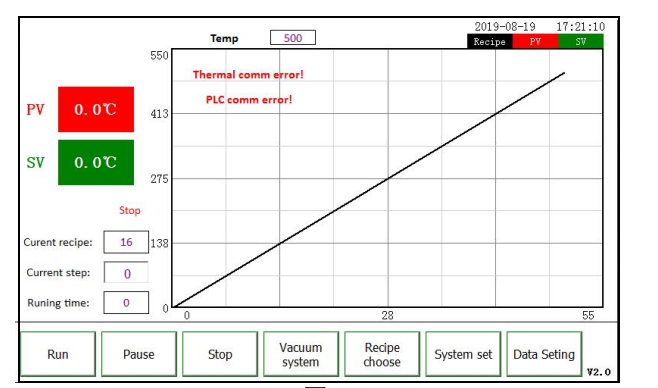

Touch Screen 7” LCD touch screen can operate both furnace and vacuum pump systems. |
| Body structure | Double Layer steel casting support water jacket |
| Furnace shell | High intensity carbon steel with electrostatic spraying |
| Furnace chamber | Graphite |
| Max temp. | 2300℃ |
| Working temp. | <=2200℃ |
| Heating rate | Suggest 10℃/min（≤1600℃），5℃/min（1600℃-2200℃） |
| Heating elements | Graphite |
| Chamber size | 200*200mm(Diameter*Height) |
| Temperature control accuracy | +/-1℃ |
| Temperature Control | The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set 2. Temperature control accuracy ±1ºC 3, with over-temperature protection, broken couple protection 4. The instrument has the function of temperature self-tuning |
| Sealing method | Vacuum tank |
| Over-temperature alarm | Yes |
| Over-current protection | Yes |
| Thermocouple broken indication | Yes |
| Temperature measuring | Infrared temperature measurement |
| Suction mouth | 1 pc |
| Gas Outlet Port | 1 pc |
| Gas Inlet Port | 1 pc Support to insert protective gas( Micro pressure <=0.02mpa) |
| Vacuum Breaker | 1pc |
| Cooling Rate | Natural cooling |
| Vacuum System Part | |
| Max. Vacuum | 6.67x10-3Pa (Cool State) Kindly noted above vacuum is based on empty furnace |
| Vacuum Tank | Double layer water cooling carbon steel Silicone sealing device Hand wheel locking device |
| Vacuum system |
A vacuum pressure tank, rotary vacuum pump and diffusion pump with digital compact vacuum gauge |
