model:PT-XW446

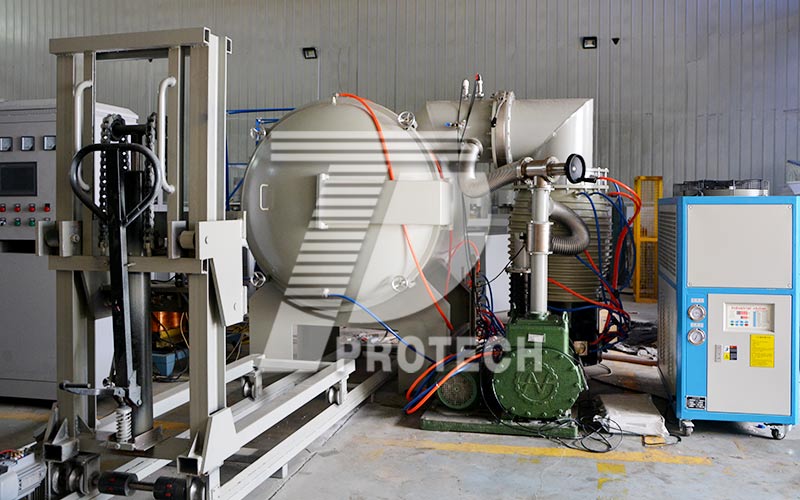

Vacuum heat treatment furnace

Application

Detailed Parameters Of The Product

Product introduction:
This PT-XW series vacuum heat treatment furnace is widely used for heat treatment of metal materials under low vacuum, reducing and protective atmosphere, and can also be used for heat treatment of special materials. The refractory material adopts alumina fiber, which has good heat preservation and energy saving effect; the whole machine has a novel structure and is convenient to operate.

Product features:
The high-temperature vacuum furnace is composed of a host, a vacuum system, a water cooling system, and an electric control system.
1. Achieve high vacuum to ensure the quality of workpiece processing.
2. The heating element silicon carbide rods are evenly arranged to ensure the uniformity of the furnace temperature.
3. The touch screen interface is friendly and practical. It can display and monitor the operating status of the equipment, call, edit and store the sintering process, and has the functions of dynamic display and historical data recording and exporting.
4. It has functions of safety interlock, fault diagnosis and abnormal alarm.

Technical Parameters:

Model	PT-XW223 (optional)	PT-XW334 (optional)	PT-XW446	PT-XW557 (optional)	PT-XW669 (optional)
Heating area (mm)	200×200×300	300×300×400	400×400×600	500×500×700	600×600×900
Maximum temperature (℃)	1400	1400	1400	1400	1400
Ultimate vacuum (Pa)	10pa, 6.7×10-3pa
Heating element	Silicon carbide
structure	Single indoor thermal horizontal structure
Heating rate	0-10℃/min
More specifications can be customized according to requirements
