LCD Touch Screen Mini Tube Furnace
model:PT-T1200-S

LCD Touch Screen Mini Tube Furnace

    Application:  LCD Touch Screen Mini Tube Furnace is mainly used for sintering, coating, Nanotube study, soldering in both vacuum condition and atmosphere condition in laboratories and enterprises.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech Zhengzhou Protech
Detailed Parameters of the Product
Introduction:gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The quartz tube with flanges and the vacuum pump, it can work both for vacuum and atmosphere conditions.gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Application:gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
LCD Touch Screen Mini Tube Furnace is mainly used for sintering, coating, Nanotube study, soldering in both vacuum condition and atmosphere condition in laboratories and enterprises.gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Features:gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Compact structure, Low power dissipation, Accurate control, Stable performance, Easy operation.gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Parameters:
Model PT-T1200-S25K1 PT-T1200-S30K1 PT-T1200-S40K1 PT-T1200-S50K1
Top Temperature 1200℃
Working Temperature ≤1100℃
Quartz Tube Diameter(customized) Φ25 Φ30 Φ40 φ50
Heating zone length 200/300mm (Can be customized according to customer needs)
Insulation layers High-Purity Alumina Ceramic fiber
Heating Rate 0-20℃/min
Control Accuracy ±1℃
Temperature Sensor N-type Thermocouple
Heating Element 0Cr27Al7Mo2 Resistance Wire
Sealing Flanges
Structure Split
Accessories Gloves, Crucibles, Tongs, Crucible hook.
gXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
A standard temperature-controlled mini tube furnace is also available:

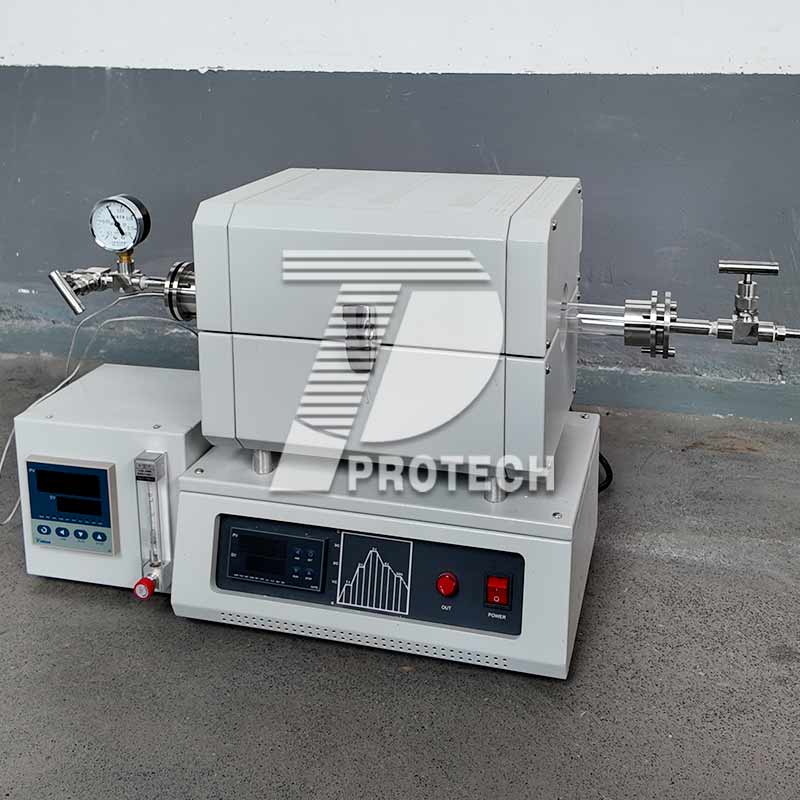

mini tube furnacegXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

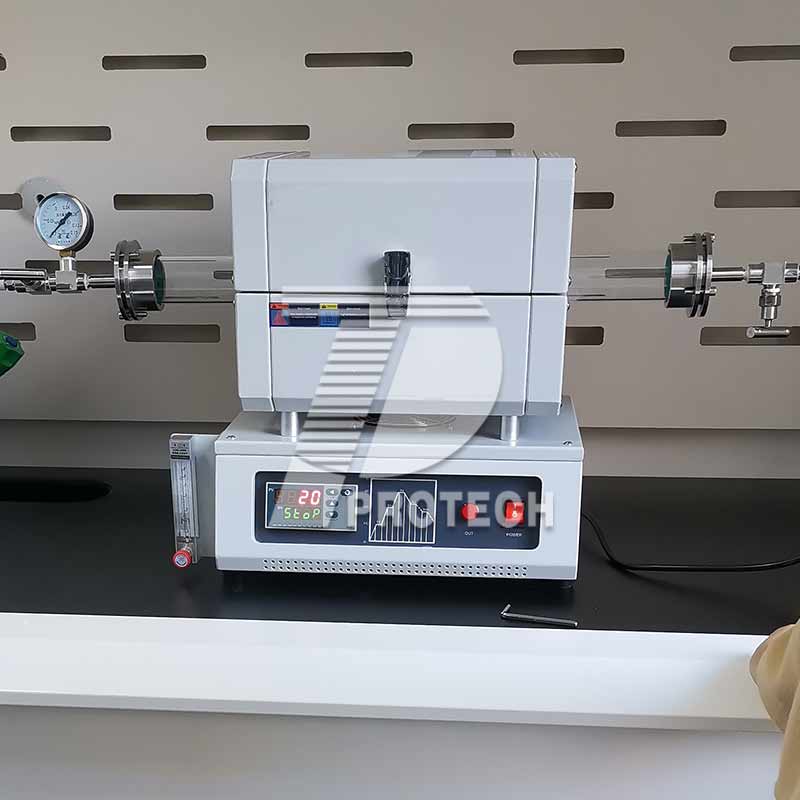

mini tube furnacegXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

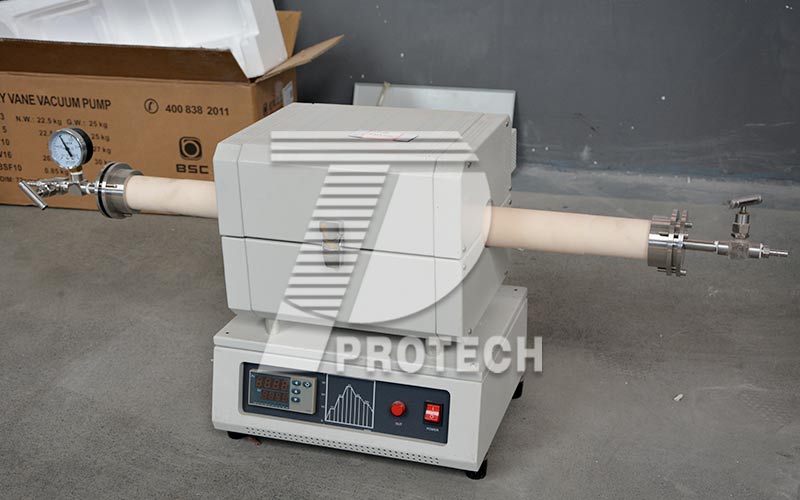

1600°C tube furnacegXyMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

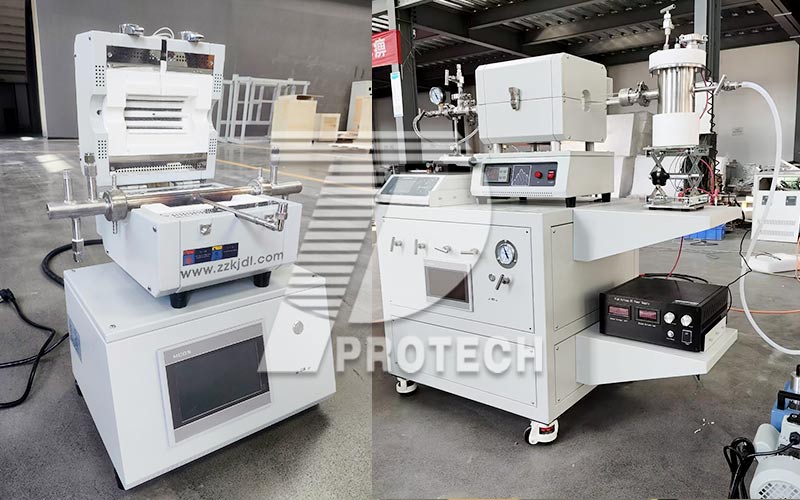

1200°C mini tube furnace
