model:PT-1200T

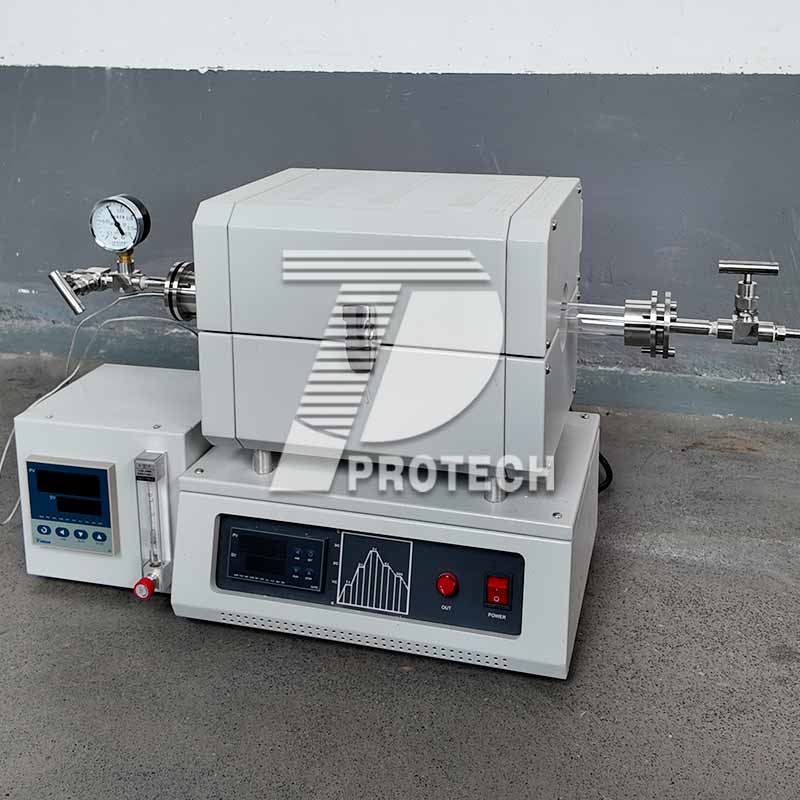

1200℃ Mini tube furnace

Application

Detailed Parameters Of The Product

Description：
1200℃ mini tube furnace is a laboratory equipment used for various heat treatment materials. The main industries are follows: Rare earth preparation, electronic lighting, crystal annealing, biological ceramics, electronic ceramics, special alloy, magnetic materials, precision casting industry such as vacuum sintering, protective atmosphere sintering, vacuum coating, CVD experimental measurement, material composition, ect.

1.Features of 1200℃ Mini tube furnace :
(1). Operation Temperature: 1100℃ ( 1200℃ for short time).
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
(3). Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
(5). Power control with 30 segments programmable.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Technical parameters of 1200C Mini tube furnace :

Model	PT-1200T
Display	LED
Limit temperature	1200℃
Working temperature	≤1100℃
Heating rate	Suggestion 0~20℃/min
Temperature accuracy	±1℃
Temperature zone	Single
Chamber size	Φ50×200（mm）
Heating element	electric wire with mo
Thermal couple	K Type
Rated power	1.2 KW
Working voltage	AC 110-480V 50/60 Hz
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Warranty	12 month (exclusive wearing part)
