Detailed Parameters Of The Product
Description：g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
This PT-T1200 series tube furnace is mainly used for sintering, coating, Nanotube study, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises.g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

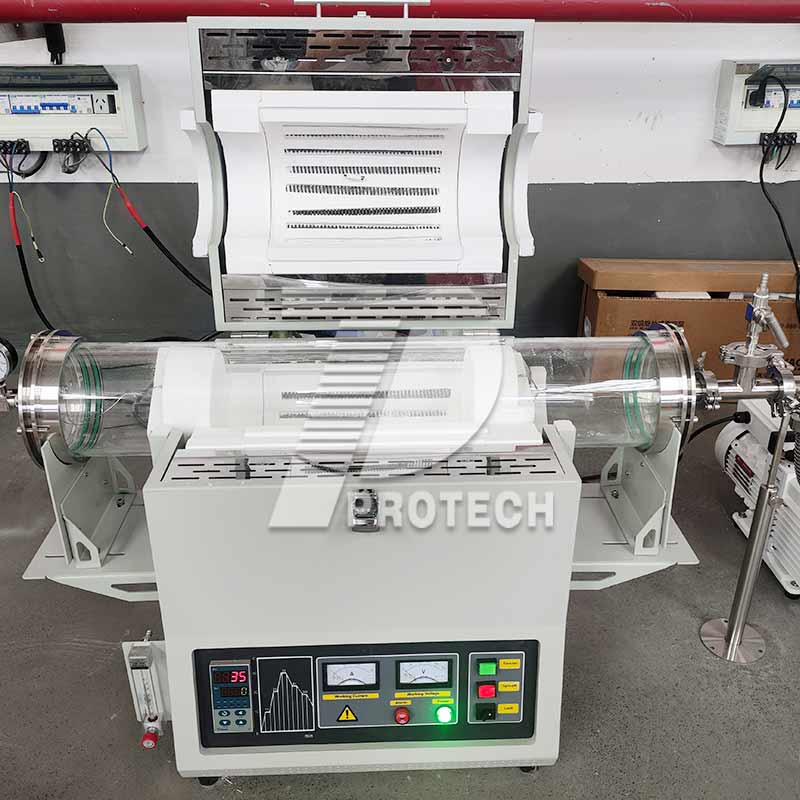

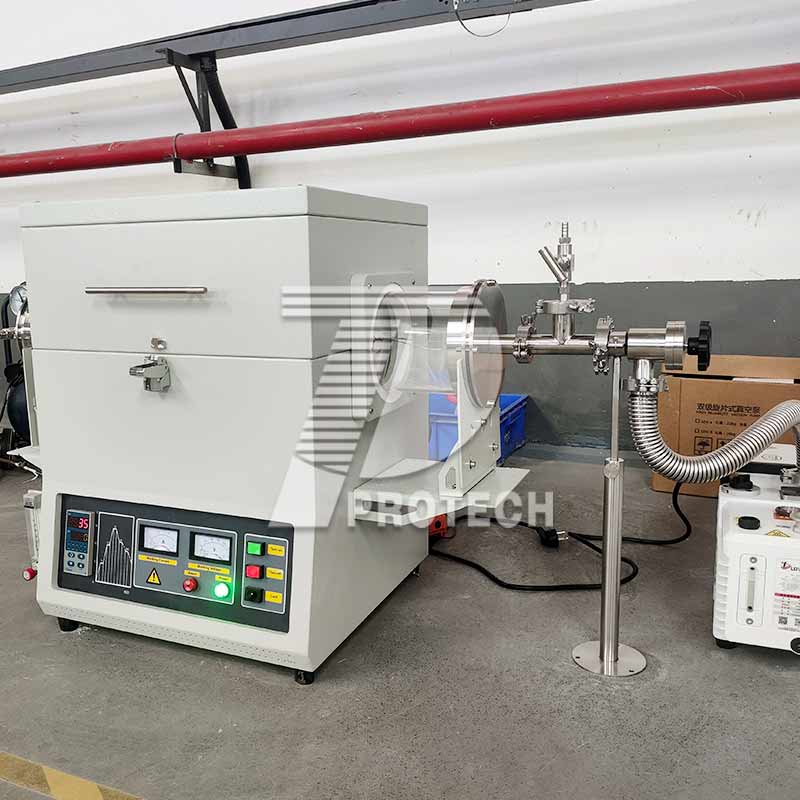

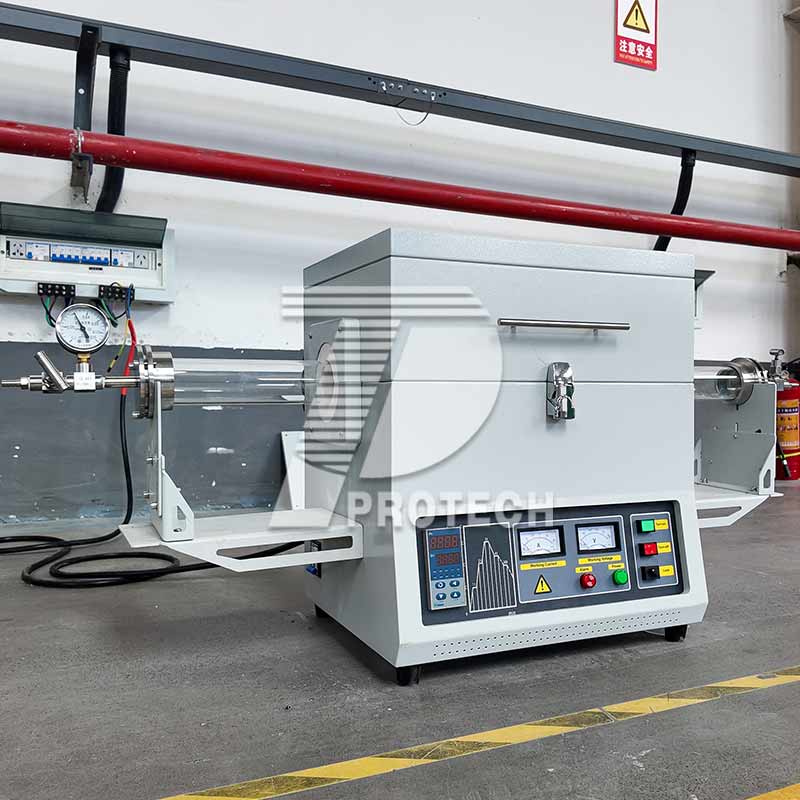

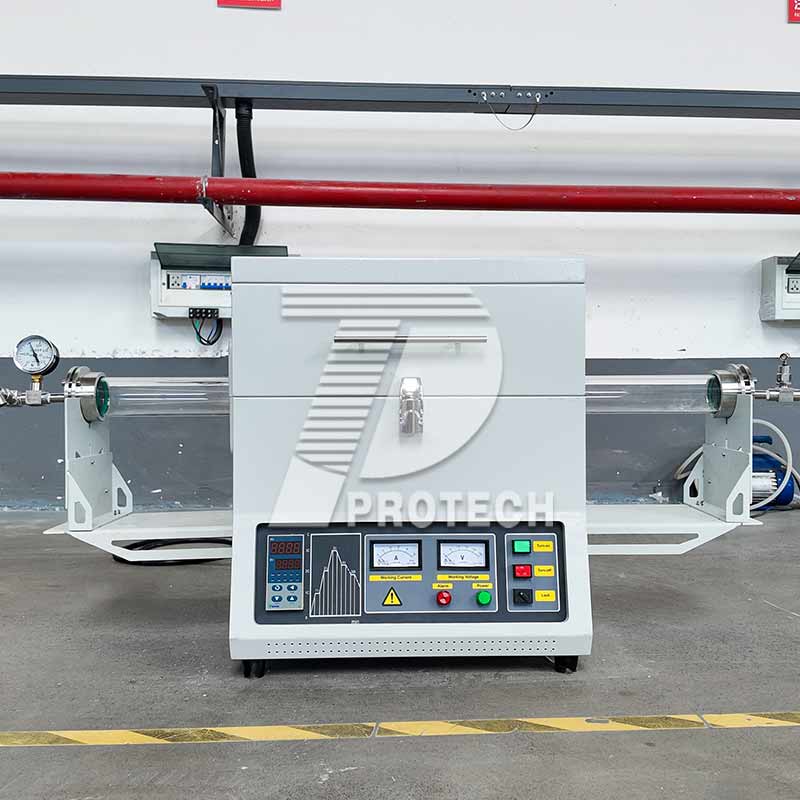

This quartz tube furnace features a quartz tube and a pair of stainless steel vacuum-sealed flanges, along with a needle valve and pressure gauge, allowing sample heating under vacuum or airflow. The furnace's temperature is controlled by a high-precision digital controller with 30 programmable steps and an accuracy of ±1°C. The maximum operating temperature is 1200°C.g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The 1200°C quartz tube furnace is a high-temperature experimental device primarily used in scientific experiments and industrial production, including material heat treatment, chemical vapor deposition (CVD), nanomaterial synthesis, and catalyst research. Its core feature is its high-purity quartz tube reaction chamber, which offers high-temperature resistance and excellent chemical and thermal stability.
g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Features of quartz tube furnace :g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Working Temperature: ≤1100℃ ( 1200℃ for short time). g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. Heavy duty double layer structure with cooling fan. Lower temperature in outside case. g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier). g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Power control with 30 segments programmable.
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnacg9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacParameters:
| Model |
PT-T1200-60/80 |
PT-T1200-100/120 |
PT-T1200-150 |
PT-T1200-230 |
| Max. Temperature |
1200℃ |
| Working Temperature |
≤1100℃ |
| Quartz Tube Diameter/mm (Customizable) |
Φ60/80 |
Φ100/120 |
Φ150 |
Φ230 |
| Heating zone length |
300/440/500/600mm Customizable |
| Tube material |
Quartz tube |
| Insulation layers |
High-Purity Alumina Ceramic fiber |
| Heating Rate |
0-20℃/min |
| Control Accuracy |
±1℃ |
| Temperature Sensor |
N-type Thermocouple |
| Heating Element |
0Cr27Al7Mo2 Resistance Wire |
| Sealing |
Flanges |
| Structure |
Split |
| Optional |
Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters. |
| Customization is available. |
Note: there are different tube sizes for your choice.g9cMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
