model:FBCVD-10/20/100

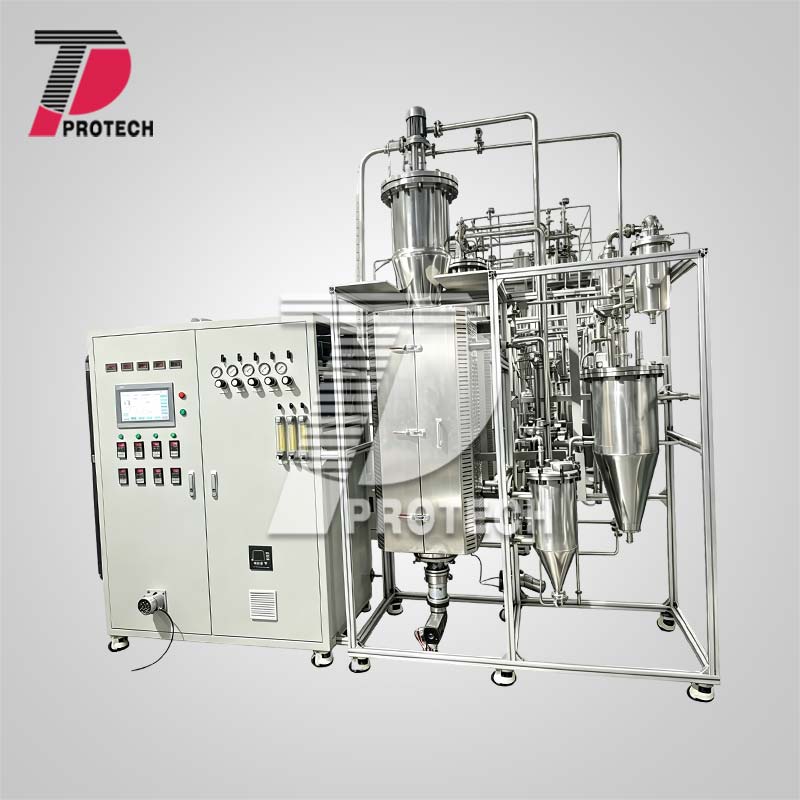

Fluidized Bed Chemical Vapor Deposition (FB-CVD) Reactor
Application: The FB-CVD reactor is widely applied in surface modification, functional powder preparation, new energy materials and advanced chemical manufacturing fields.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
Introduction
In the fluidized bed chemical vapor deposition (FB-CVD) reactor system, carrier gas is employed to fluidize particulate raw materials inside the reaction chamber, which enables the subsequent surface coating and thermal sintering procedures. The fluidized bed-based CVD reaction mode stands out for its capability to form homogeneous coating layers on powder substrates, delivering outstanding coating uniformity that serves as its core technical feature. Compared with traditional fixed-bed and moving-bed reactors, FB-CVD exhibits comprehensive superiorities in heat and mass transfer, temperature control, production efficiency and operational safety, making it an advanced vapor deposition reaction device.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Advantages
The prominent technical strengths and application-oriented advantages of the FB-CVD reactor are summarized as follows:oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Superior Heat and Mass Transfer PerformanceoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The heat and mass transfer coefficients of FB-CVD reactors are over ten times higher than those of conventional fixed-bed and moving-bed reactor configurations, laying a solid foundation for efficient reaction progression.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Uniform In-Reaction Thermal FieldoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The entire reaction zone maintains a consistent temperature environment, which facilitates efficient heat diffusion and rapid heat supplementation during reactions, effectively boosting overall thermal efficiency.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. Accurate and Stable Temperature ControloWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Benefiting from the uniform thermal field characteristics of the fluidized bed, the system achieves far superior temperature control accuracy and operational consistency compared with traditional fixed-bed reaction equipment.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. High Unit Production CapacityoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
With optimized energy utilization efficiency and full contact between reaction gas and powder materials, the FB-CVD system realizes a substantial improvement in unit-bed production capacity, possessing exclusive production advantages over conventional fixed-bed reactors.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Simplified Material Handling and High Energy EfficiencyoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The fluidized state of powder materials in the reaction chamber simplifies the loading and unloading processes of raw and finished materials, effectively reducing energy consumption and elevating overall production efficiency, with comprehensive performance advantages over fixed-bed and moving-bed reactors.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6. Automated Control and Stable OperationoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The reactor is equipped with a mature automatic control system that aligns with commercial production equipment standards, greatly enhancing the stability and repeatability of long-term operation.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
7. Integrated Structure with Explosion-Proof SafetyoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The equipment adopts an all-in-one integrated structural layout, which fully complies with industrial explosion-proof specifications and meets the safety requirements of industrial production scenarios.oWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical SpecificationsoWjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
| Model |
Type |
Level |
| FBCVD-10 |
1 KG |
Experimental level |
| FBCVD-20 |
3 KG |
Experimental level |
| FBCVD-100 |
20 KG |
Pilot stage |
| Feeding amount |
1L~1000L，higher volumes can be customized |
| Gas source |
H2、N2、Ar、O2、CO2、CH4、C2H2、SiH4、C3H6、Water vapor, etc. |
| Working temperature |
≤950℃，higher temperatures can be customized |
| Material handling requirements |
D50≥2μm |
