All products are customizable, leave message immediately, we will reply as soon as possible.

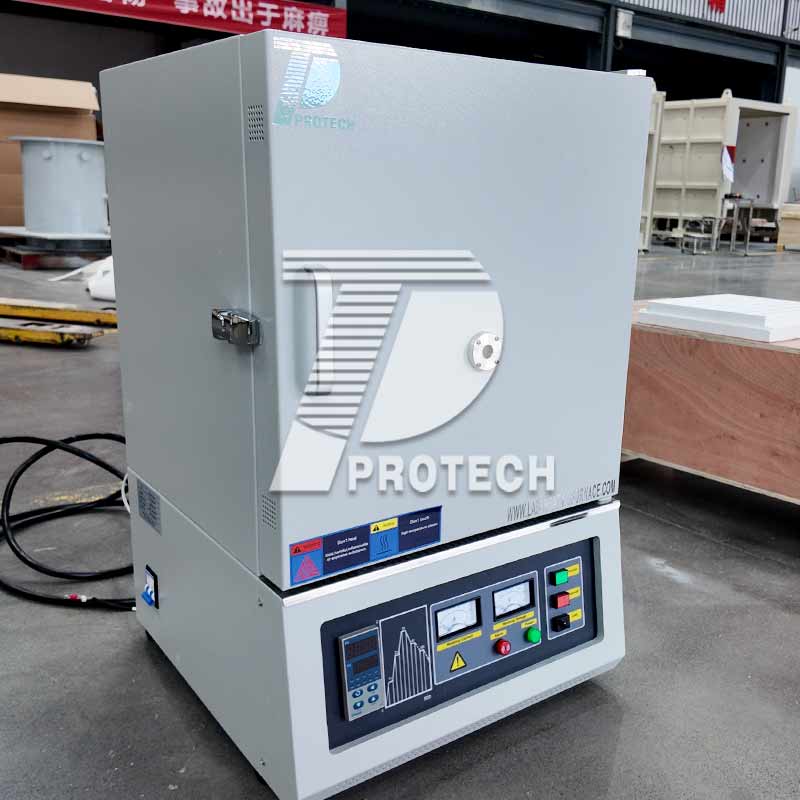

| Model | PT-M1700 | ||
| Chamber mode | Side door | ||
| Display | Touch screen (LCD) | ||
| Maximum temperature | 1600 degrees Celsius | ||
| Operating temperature | <= 1500 degrees Celsius | ||
| Heating rate | It recommended 0~ 10 deg.] C / min | ||
| Temperature zone | single | ||
| Accuracy | + -1 degrees Celsius | ||
| Inner cavity size | 120 * 120 * 130 (mm) Customizable | ||
| Heating element | MoSi2 | ||
| Thermocouple | B Type | ||
| Temperature control | PID automatic control through SCR power control | ||
| Heating curve | 30 steps programmable | ||
| Cabinet material | Alumina fiber | ||
| Guarantee | One year limited warranty (for wearing parts, such as heating elements Not covered by warranty) |
||
| Chamber size(mm) | Effective volume(L) | ||
| 150*150*150 | 3.4 | ||
| 150*150*200 | 4.5 | ||
| 200*200*200 | 8 | ||
| 200*200*300 | 12 | ||
| 300*300*300 | 27 | ||
| 300*300*400 | 36 | ||
| 400*400*400 | 64 | ||
| 500*500*500 | 125 | ||
| 600*600*600 | 216 | ||
| 800*800*800 | 512 | ||
| Can be customized according to customer needs | |||
| Optional Features: Powder off when door open,LCD touch screen,Remote Control,Computer Monitor,Door Open way (Up,Down,Lift,Right) | |||
