1000°C Large-Capacity Atmosphere Box Furnace

Application: The Protech furnace is perfectly suited for mass sintering of advanced ceramics, metal powders and oxide materials. It can complete sintering processes under inert argon atmosphere or reactive ammonia atmosphere, effectively preparing high-density, high-strength finished parts with uniform and stable microstructure, delivering consistent product batch quality.

send-email:

info@lab-furnace.com

Introduction

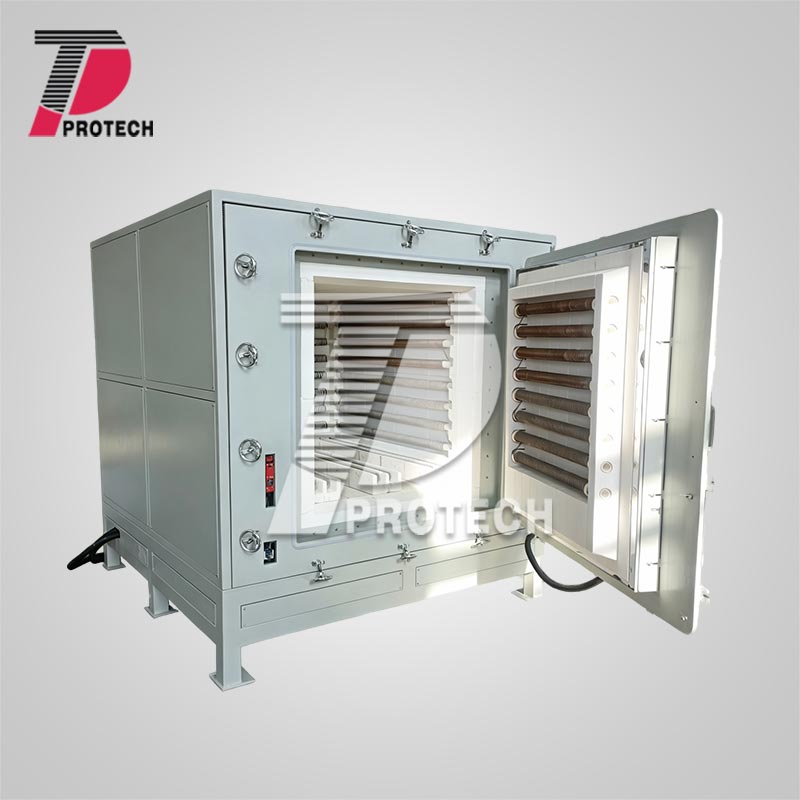

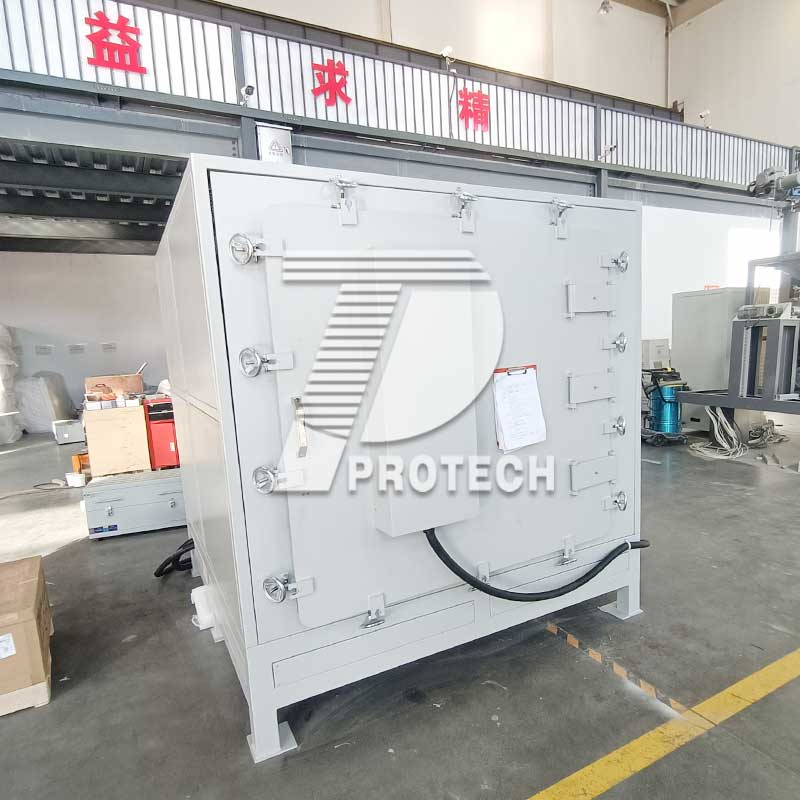

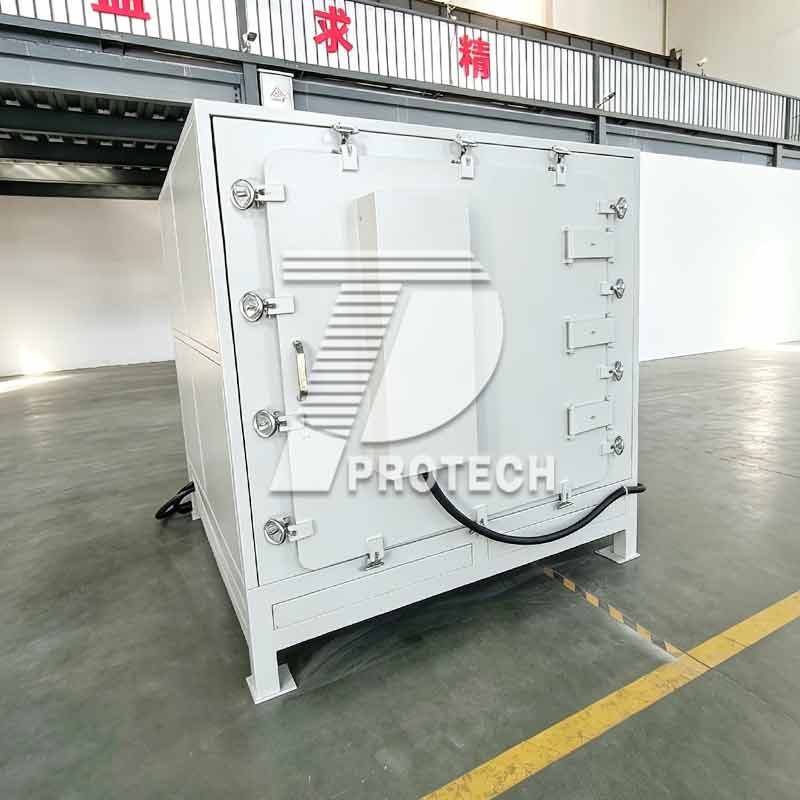

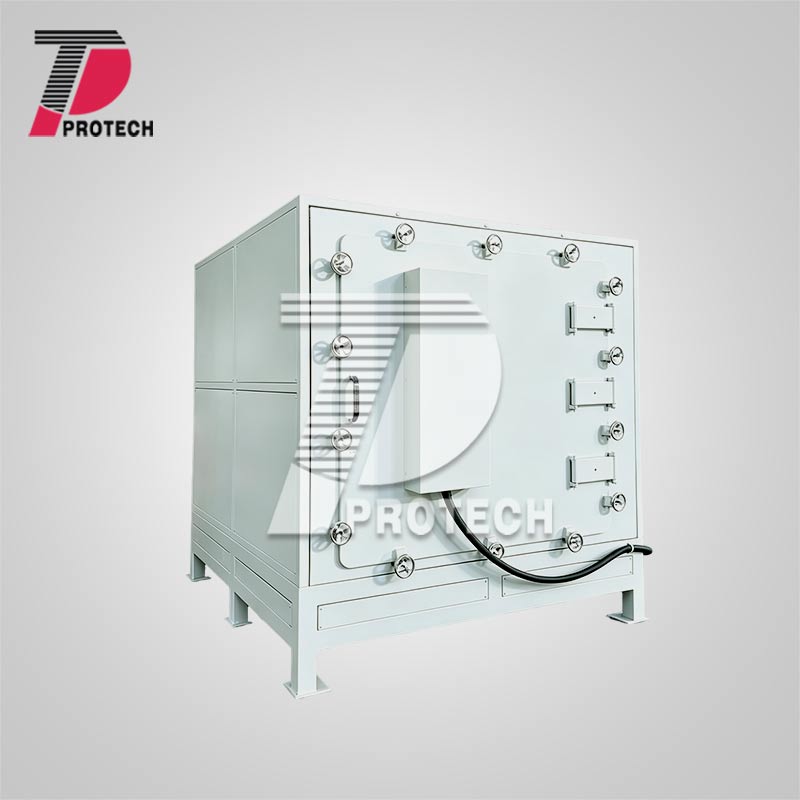

The Protech 1000°C large-capacity atmosphere box furnace is a high-performance, industrial-grade thermal processing equipment tailor-made for high-yield, high-precision heating scenarios. Adopting a premium alumina fiber furnace chamber and user-friendly manual side-opening door structure, this furnace achieves a maximum loading capacity of 800 kg, greatly optimizing material loading and unloading efficiency and meeting the demands of bulk industrial production and pilot testing.

Designed with a five-sided heating system (left, right, rear, bottom and door panels) and external resistance wire heating components, the equipment delivers ultra-uniform temperature distribution throughout the furnace chamber. It supports a programmable heating rate ranging from 0 to 20°C/min and achieves a precise temperature control accuracy of ±1°C. Equipped with dual N-type thermocouples, the furnace ensures stable, accurate and real-time temperature detection with excellent anti-interference performance and measurement reliability.

In terms of atmosphere control, the Protech atmosphere box furnace features an ultimate vacuum degree of -0.1 MPa and dual rotameter configuration, enabling independent and precise regulation of argon inert gas and ammonia reactive gas flow to create a stable and controllable furnace atmosphere environment. It is fitted with an independent 10-inch touchscreen control cabinet, featuring intuitive human-computer interaction, flexible program setting and real-time operating data monitoring functions. Meanwhile, built-in thermocouple break protection and over-temperature alarm systems provide comprehensive safety guarantees, supporting stable unattended continuous operation and reducing operational risks effectively.

Applications

1. Advanced Ceramic and Powder Metallurgy Sintering
The Protech furnace is perfectly suited for mass sintering of advanced ceramics, metal powders and oxide materials. It can complete sintering processes under inert argon atmosphere or reactive ammonia atmosphere, effectively preparing high-density, high-strength finished parts with uniform and stable microstructure, delivering consistent product batch quality.

2. Precision Controlled Atmosphere Heat Treatment
This equipment supports multiple conventional heat treatment processes including annealing, normalizing and stress relief for various metals and alloys. By virtue of its reliable sealed atmosphere control capability, it thoroughly avoids workpiece oxidation and decarburization defects. Additionally, it realizes professional ammonia atmosphere nitriding treatment, significantly improving the surface hardness, wear resistance and corrosion resistance of steel structural parts.

3. High-End Material R&D and Pilot Production
Widely applicable in laboratory research and pilot production lines for new energy and electronic materials, the furnace provides ultra-precise temperature and atmosphere control conditions. It is ideal for the synthesis and processing of battery electrode materials, electronic ceramics and other high-tech advanced materials, supporting customers’ new product development and process verification.

4. Large-Scale Industrial Batch Production
With its 800 kg super-large single-batch loading capacity and stable continuous operation performance, the Protech 1000°C atmosphere box furnace can be seamlessly integrated into automated production lines. It provides efficient and scalable thermal processing solutions for aerospace, automotive manufacturing, electronic information and other high-end industrial fields, helping enterprises improve production efficiency and reduce comprehensive production costs.

Technical Specifications

Model	PT-A1000-1053CZ
Furnace Chamber	Alumina fiber furnace chamber
Loading Capacity	800 Kg
Door Structure	Manual side-opening door
Design Temperature	1000°C
Operating Temperature	≤ 900°C
Heating Rate	0~20°C/min
Temperature Control Accuracy	±1°C (at high temperature range)
Furnace Chamber Dimensions	900×900×1300 mm
Heating Element	Externally mounted resistance wire
Heating Element Distribution	Five-sided heating
Thermocouple	2 pcs of N-type thermocouples
Ultimate Vacuum	-0.1 MPa
Gas Flow Control	Two rotameters for argon and ammonia respectively
Control System	Independent control cabinet with 10-inch touch screen
Emergency Alarm	Power failure alarm and over-temperature alarm
