model:PT-A1000-2160CS

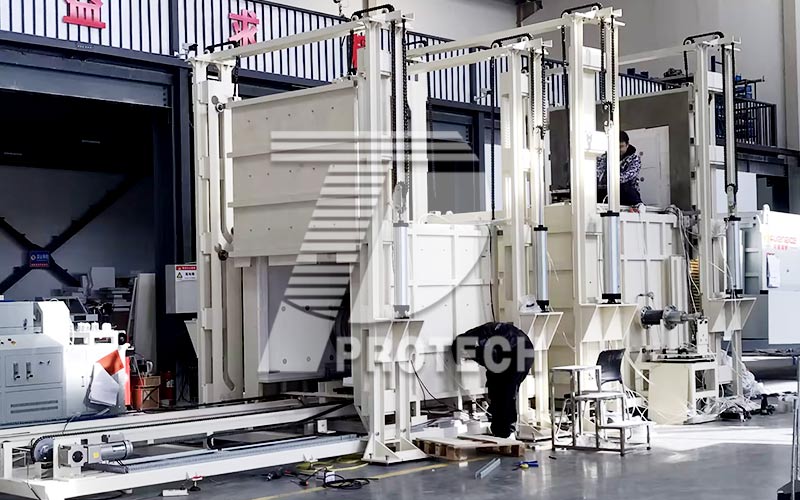

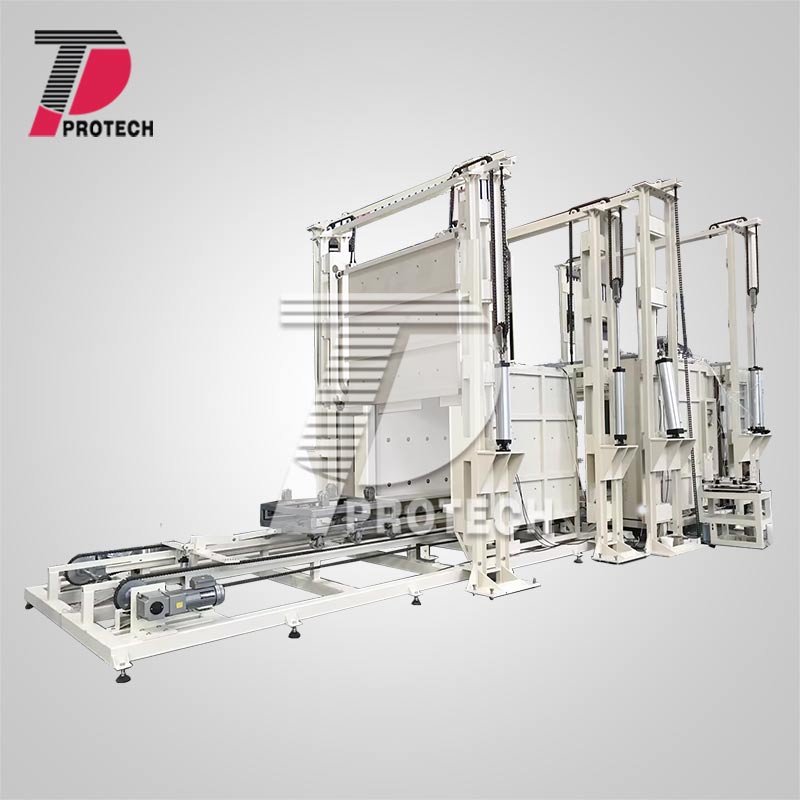

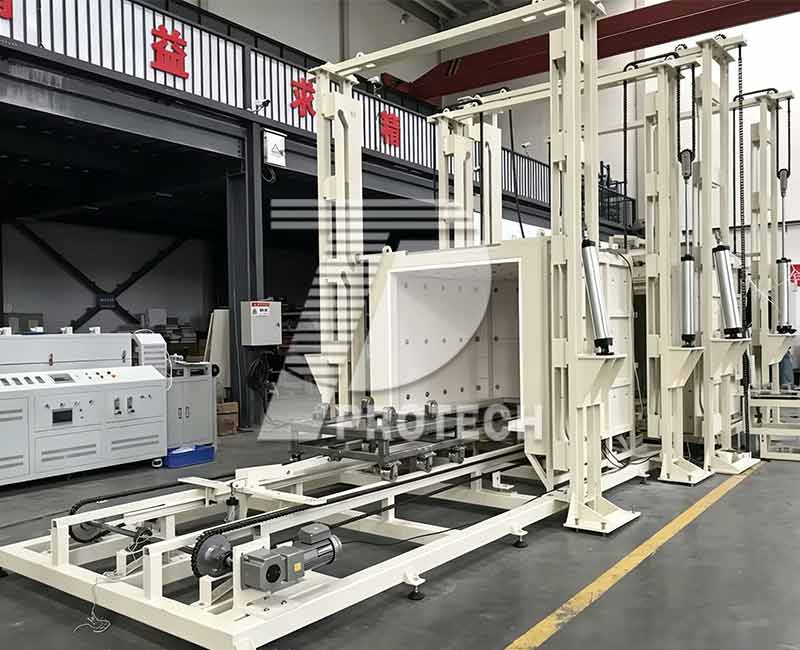

Industrial Atmosphere Trolley Furnace

Application

Detailed Parameters Of The Product

Introduction:
Industrial atmosphere trolley furnaces are commonly used heat treatment equipment. The furnace lining is made of high-quality imported alumina polycrystalline fiber vacuum adsorption material, achieving 50% energy savings. The furnace door and top are sealed with high-temperature silicone rubber, and the furnace door is equipped with a water-cooling system. The furnace body has an inlet, outlet, and vacuum port; it can accommodate hydrogen, argon, nitrogen, and other gases, and can pre-vacuum, with a vacuum pressure reaching 0.1 MPa. The box-type structure design makes loading and unloading workpieces convenient and operation relatively simple, eliminating the need for complex operating procedures and specialized technicians, thus reducing operational difficulty and labor costs. Meanwhile, the intuitive operating interface and control system, such as a touch screen, allows operators to easily set parameters such as temperature, time, and atmosphere, and monitor the furnace's operating status in real time. Some models also support remote monitoring, further improving operational convenience and flexibility. Atmosphere furnaces are ideal experimental and production equipment for research institutions, universities, and industrial and mining enterprises.

Applications:
Industrial atmosphere trolley furnaces are common heat treatment equipment widely used in the following fields:

Sintering: Used for material sintering, heat treatment, and material analysis and testing, such as sintering of magnetic materials, powder metallurgy materials, rare earth materials, and precious metal materials.

Heat Treatment: Performing heat treatment processes such as annealing and tempering on metals and their alloys under atmospheric conditions; precision annealing and microcrystallization of glass; precision annealing of crystals.

Electronics Industry: Manufacturing of electronic components, preparation of semiconductor materials, and curing of electronic packaging materials.

Nanomaterials: The preparation of nanomaterials requires a harsh reaction environment. Atmosphere furnaces can provide a stable atmosphere and precise temperature control, which is beneficial for the synthesis and growth of nanomaterials.

Ceramic Materials: Sintering of electronic ceramics and high-temperature structural ceramics; preparation of ceramic glazes; by controlling the atmosphere, the interfacial reactions between different components in composite materials can be adjusted, improving the performance of composite materials.

Parameters:

Model	PT-A1000-2160CS
Door Design	Vertical sliding (pneumatic cylinder)
Max. temperature	1000℃
Max working temperature	600℃(continuously)
Heating Rate	0~20℃/min(suggest 0~10C/min)
Thermal Control Accuracy	±1℃
Chamber Size	W1200 H1200L1500mm
Tray size	W1000 H1000L1000mm
Heating Element	Resistance wire (top, left, right)
Thermal Couple	N type temperature control thermocouple + monitor thermocouple
Insulation Material	Alumina fibers
Temperature controller	Independent controller cabinet； 10 inch touch screen； PID automatic control via SCR power control; 16 programs with 30 steps programmable; Over temperature protection and alarm.
Gas system	N₂ or other inert gas injection and air circulating system for temperature maintenance.
Tray system	Rotary drum with open/close door
Cooling zone	Chamber size: W1200 H1200L1500mm With N type monitor thermocouple
Transfer system	With tray transfer system
Safety system	Over temperature and thermocouple break alarm; Equip the system with an automatic stop and emergency alarm in case of operational errors.
