Horizontal/Vertical Alumina Tube Furnace Selection and Energy Consumption Optimization Guide

1. Overview of Alumina Tube Furnace Heat Treatment Process
1.1 Core Application Characteristics of Alumina Thermal Treatment
Alumina tube furnace is the mainstream high-temperature thermal treatment equipment for ceramic sintering, powder purification and precursor crystallization, featuring high temperature resistance, corrosion resistance and precise atmosphere controllability.
Alumina materials cover multiple application scenarios such as high-purity alumina powder sintering, ceramic substrate annealing, catalyst carrier heat treatment and refractory material modification. The thermal treatment process requires stable high-temperature environment, uniform temperature field and low-pollution atmosphere conditions. Different from quartz tube furnaces, alumina tube furnaces can stably operate at 1200–1700℃, adapting to high-temperature crystallization, densification sintering and impurity removal reactions of alumina materials. Horizontal and vertical furnaces are the two mainstream structural forms in the industry, with obvious differences in process adaptation, operational stability and energy consumption level.

1.2 Industry Pain Points of Furnace Type Mismatch and High Energy Consumption
Blind selection of horizontal or vertical furnace leads to uneven sintering quality, low batch consistency and high comprehensive energy consumption, restricting high-efficiency production of alumina products.
In actual industrial and laboratory production, many alumina heat treatment projects have prominent problems: using horizontal furnaces for high-precision high-purity sintering causes particle pollution and poor temperature uniformity; adopting vertical furnaces for large-batch conventional sintering results in low production efficiency and cost waste. Meanwhile, unreasonable parameter setting and non-standard operation lead to high invalid heat loss, long heating cycle and high unit energy consumption. Equipment type matching and energy consumption optimization have become the key bottlenecks restricting the refined and low-carbon development of alumina heat treatment industry.

1.3 Practical Value of Standardized Selection and Energy Saving Control
Precise matching of horizontal and vertical furnace types with alumina heat treatment processes, combined with targeted energy consumption optimization strategies, can stabilize product quality and reduce comprehensive production costs.
Different furnace structures correspond to unique temperature field distribution, gas flow mode and heat dissipation characteristics. Scientific furnace type selection can eliminate process defects caused by structural mismatch and improve the qualification rate of alumina sintered products. On the basis of correct selection, optimizing heating curves, heat preservation strategies and atmosphere operation modes can effectively reduce invalid energy consumption, shorten production cycles and realize dual improvement of production quality and energy efficiency, providing standardized technical support for large-scale and low-cost production of alumina thermal treatment.

2. Structural Differences and Process Adaptability of Horizontal and Vertical Tube Furnaces
2.1 Structural Principle and Temperature Field Distribution Differences
Horizontal furnaces adopt horizontal tube layout with excellent axial temperature uniformity; vertical furnaces adopt vertical tube structure with stable radial temperature field and natural convection heat transfer advantage.

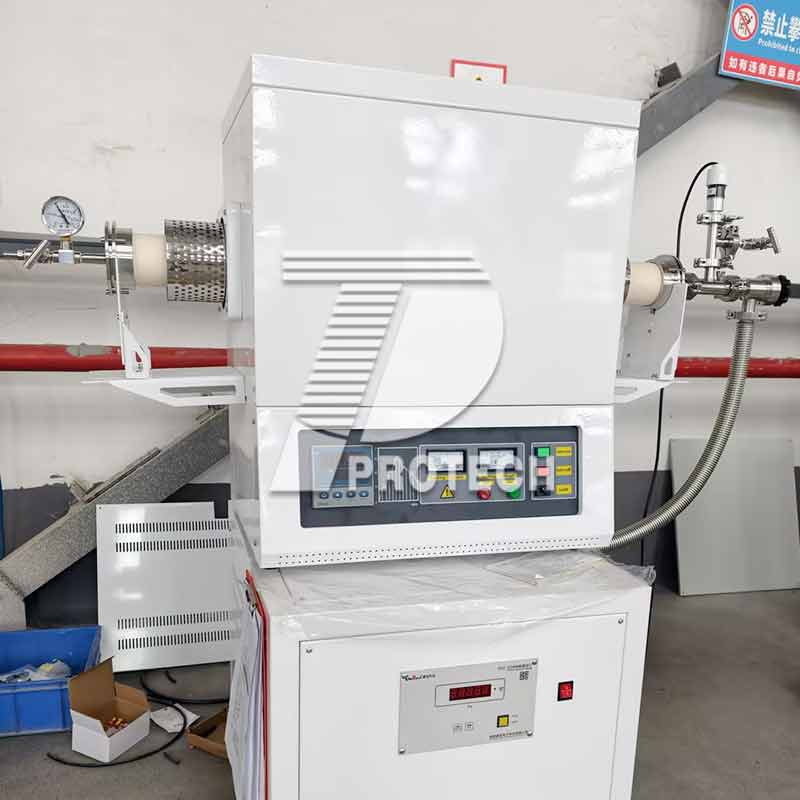

The heating zone of the horizontal alumina tube furnace is distributed horizontally, with a long and uniform axial constant temperature zone, small temperature difference in the material advancing direction, and stable overall heat transfer. It is suitable for long-size workpieces and large-area batch sintering. The vertical tube furnace adopts an upright furnace tube design, relying on natural hot air convection to form a balanced radial temperature field, with no transverse temperature gradient, small internal heat fluctuation, and effectively avoiding local overheating or underheating of samples. The two structural modes form completely different thermal response characteristics, determining their respective applicable process scenarios.

2.2 Process Advantages and Defect Analysis of Horizontal Furnaces
Horizontal tube furnaces are dominant in large-batch and long-size alumina product processing, with low operation threshold and high production efficiency, but slightly poor anti-pollution and energy-saving performance.
Horizontal furnaces have large loading space and convenient sample access, which can meet the batch heat treatment of alumina ceramic plates, long strip workpieces and mass powder materials. The axial constant temperature zone is wide, ensuring consistent sintering degree of front and rear samples, with high production flexibility and low equipment maintenance cost. However, the horizontal structure has large side heat dissipation area, obvious hot air overflow, and relatively high invalid heat loss. In addition, dust and impurities in the furnace are easy to settle on the sample surface, which is not suitable for high-purity and ultra-precision alumina sintering scenarios.

2.3 Process Advantages and Defect Analysis of Vertical Furnaces
Vertical tube furnaces are suitable for high-purity and high-precision alumina heat treatment, with outstanding energy-saving effect and stable atmosphere, but limited batch processing capacity.
The vertical structure of the vertical furnace effectively reduces heat dissipation loss, and the hot air circulates naturally in the closed furnace tube, with high heat utilization rate. The top-in and bottom-out gas flow mode forms a stable laminar flow field, which can effectively isolate dust and impurities, avoid sample contamination, and is very suitable for high-purity alumina powder, semiconductor ceramic substrates and high-precision carrier sintering. The disadvantages are limited single-batch loading capacity, strict requirements on sample placement flatness, low adaptability for super-long and super-large workpieces, and slightly higher equipment investment cost than horizontal furnaces.

3. Targeted Furnace Selection Strategy Based on Alumina Heat Treatment Goals
3.1 Selection Scheme for Conventional Batch Sintering Scenarios
For ordinary alumina ceramics, refractory materials and large-batch powder pretreatment, horizontal tube furnaces are preferred to balance production efficiency and operating cost.
Conventional alumina heat treatment focuses on batch output and cost control, with low requirements for material purity and ultra-precision uniformity. Horizontal furnaces have the advantages of large loading capacity, convenient operation and strong raw material adaptability, which can meet the needs of large-scale continuous sintering, annealing and impurity removal processes. By virtue of the wide axial constant temperature zone, it ensures stable batch sintering quality, avoids repeated feeding and discharging, and effectively improves the overall production efficiency of the production line, which is the optimal choice for mass industrial production.

3.2 Selection Scheme for High-Precision High-Purity Sintering Scenarios
For high-purity alumina powder, electronic ceramic substrates and functional carrier materials, vertical tube furnaces are matched to ensure ultra-low pollution and high uniform sintering.
High-end alumina products have extremely strict requirements on impurity content and sintering uniformity. Vertical furnaces rely on vertical closed heat circulation and stable laminar atmosphere, which can avoid dust deposition and micro-oxidation defects. The radial temperature field is highly uniform, ensuring consistent densification degree and structural stability of each position of the sample. It is suitable for precision processes such as high-temperature crystallization of high-purity alumina, stress relief annealing of electronic ceramics and surface modification of functional materials, meeting the high-standard preparation requirements of high-value-added alumina products.

3.3 Selection Scheme for Special Process and Space Limited Scenarios
For laboratory research, small-batch precision preparation and narrow installation space, vertical furnaces are prioritized; for special long-size workpieces, horizontal furnaces are exclusively matched.
Vertical tube furnaces occupy a small floor area, saving more than 30% of space compared with horizontal furnaces of the same power, and are suitable for laboratory and compact workshop layout. The stable temperature and atmosphere environment are convenient for repeated experimental verification and process parameter optimization. For ultra-long alumina strip workpieces and large-size plate products that cannot be vertically placed, horizontal furnaces are the only feasible option, relying on the advantages of axial long constant temperature zone to complete special-shaped workpiece heat treatment.

4. Full-Dimensional Energy Consumption Optimization Technology for Alumina Tube Furnace
4.1 Structural Energy Saving: Furnace Body Insulation and Heat Loss Reduction
Optimize furnace body insulation structure and sealing performance, reduce invalid heat dissipation, and improve internal heat utilization rate from equipment hardware.
For horizontal furnaces with large heat dissipation area, upgrade multi-layer composite high-temperature insulation lining to reduce side and end heat loss; optimize furnace door sealing structure to avoid hot air overflow and cold air infiltration. For vertical furnaces, optimize the top and bottom sealing components to reduce convection heat loss, and adopt low-heat-conduction refractory materials to reduce heat dissipation of the furnace body. The optimized structure can increase the overall thermal efficiency by 10%–15%, effectively solving the problem of high long-term standby energy consumption of traditional furnaces.

4.2 Process Energy Saving: Heating Curve and Cycle Optimization
Formulate staged gradient heating and intelligent constant temperature strategy, eliminate excessive temperature rise and invalid holding, and shorten production cycle.
Aiming at the characteristics of alumina material heat absorption and crystallization, optimize the heating program: adopt low-speed preheating in the low-temperature stage to avoid thermal stress and excessive power consumption; accelerate heating in the medium-temperature stage to shorten idle time; stabilize gradient constant temperature in the high-temperature stage to ensure sufficient sintering reaction. Avoid long-term ultra-high temperature standby and frequent temperature rise and fall. According to the sample thickness and batch density, dynamically calibrate the holding time to realize precise energy-saving control of the heating process and reduce unit product energy consumption.

4.3 Operation Energy Saving: Atmosphere and Batch Management Optimization
Standardize atmosphere purging flow and batch loading standards, avoid energy waste caused by unreasonable gas supply and empty furnace operation.
Optimize the inert gas and air atmosphere supply mode, adopt variable-flow staged air supply: increase flow for rapid purging in the early stage, and reduce micro-positive pressure flow in the sintering stage to avoid excessive gas flow taking away heat. Strictly implement full-load batch production, prohibit empty furnace and low-load long-time operation, and reasonably match the furnace model according to the sample output. Regularly calibrate temperature control parameters to eliminate energy waste caused by temperature drift and parameter deviation, realizing refined energy-saving operation of the equipment.

5. Matching Summary and Industrial Development Prospect
5.1 Core Logic of Furnace Selection and Energy Saving Operation
Horizontal furnaces focus on high-efficiency batch production, vertical furnaces focus on high-precision low-pollution sintering; structural matching + process optimization + standardized operation is the core of energy-saving and high-quality production.
The essential difference between horizontal and vertical alumina tube furnaces lies in temperature field distribution, heat dissipation mode and atmosphere flow characteristics. In actual production, the furnace type must be selected according to product positioning, batch demand and workpiece specifications. On the basis of accurate selection, through hardware insulation upgrading, heating curve optimization and refined operation management, the comprehensive energy consumption can be effectively reduced, product batch consistency can be improved, and the dual goals of stable quality and cost reduction can be achieved.

5.2 Industry Application and Future Development Trend
Intelligent matching, low-carbon energy saving and refined customization will become the mainstream development direction of alumina tube furnace heat treatment industry.
With the upgrading of alumina new material industry and the improvement of double-carbon energy-saving standards, extensive furnace selection and high-energy consumption operation modes will be gradually eliminated. Future alumina heat treatment equipment will develop towards intelligent parameter solidification, automatic loading and unloading, and self-adaptive energy-saving regulation. The precise matching system of horizontal and vertical furnace types will be further optimized, providing efficient, low-consumption and high-quality technical equipment support for the high-end and large-scale development of alumina ceramic, powder materials and electronic functional material industries.
