A Comprehensive Analysis of Vacuum Furnaces: Types, Core Applications, and Process Advantages

In the field of high-end manufacturing, precise control of material properties directly determines product quality. Vacuum furnaces, leveraging the unique advantages of their vacuum environment, can achieve complex processes that traditional heat treatment equipment struggles to accomplish. Covering vacuum quenching and tempering, vacuum annealing, vacuum sintering, vacuum chemical heat treatment, and other categories, they have become indispensable key equipment in industries such as aerospace, electronics, mold making, and semiconductors. This article details the mainstream types and core applications of vacuum furnaces, and delves into their process application advantages, providing a reference for industry selection.

I. Mainstream Types of Vacuum Furnaces and Their Core Applications
Vacuum furnaces are classified based on core process functions. Different types are specifically designed to meet diverse material processing needs with clear and focused applications, as follows:

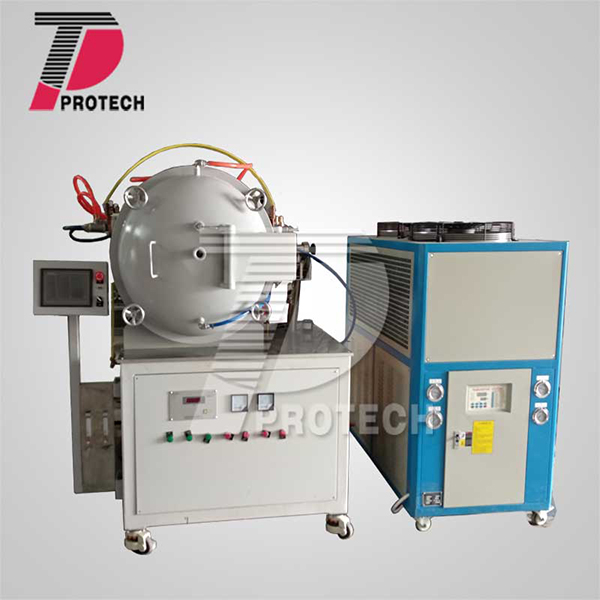

1. Vacuum Brazing Furnace
Primarily used for precision brazing and heat treatment of various materials, it is suitable for vacuum brazing of aluminum alloy heat exchangers, stainless steel heat exchangers, oil coolers, stainless steel thermos cups, and other products. It can also meet the brazing requirements of stainless steel, titanium alloy, cemented carbide, superalloy, and other materials. Additionally, it is used for vacuum tempering of high-speed steel, tool and die steel, bearing steel, as well as aging and annealing treatment of non-ferrous metals.

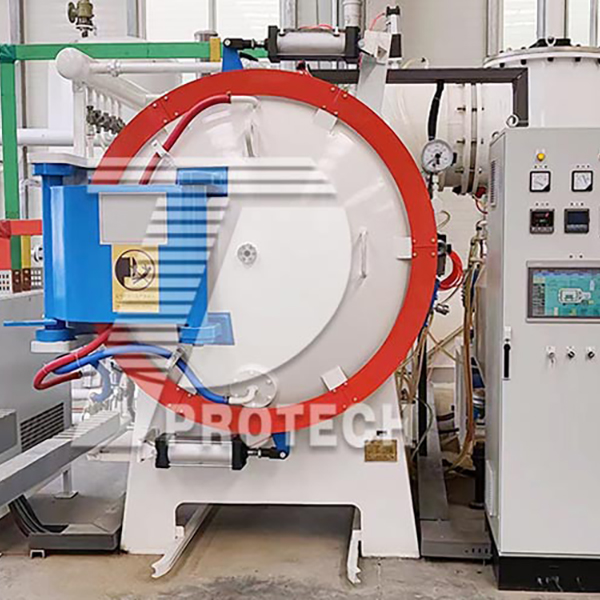

2. Vacuum Gas Quenching Furnace
Focusing on high-pressure gas quenching processes, it is applicable to the treatment of high-speed steel, tool steel, mold steel, alloy structural steel, and other materials. It integrates multiple additional functions, enabling high-temperature brazing and solution treatment of stainless steel, as well as sintering and aging treatment of powder materials. It also features rapid cooling during annealing and solution processes, adapting to multi-scenario material processing needs.

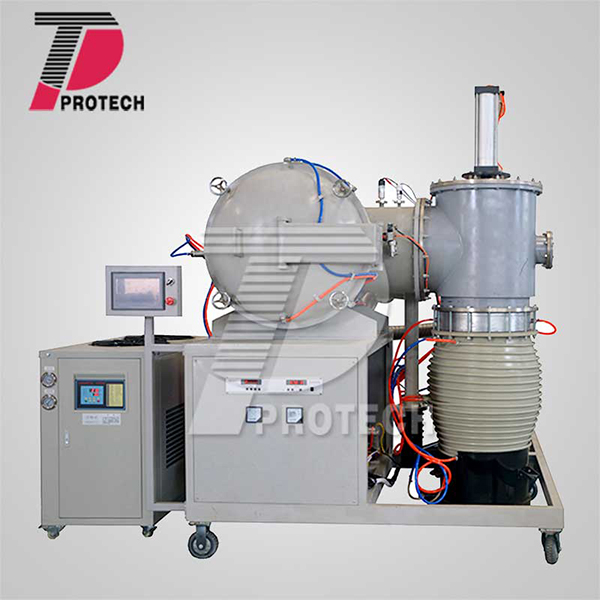

3. Vacuum Sintering Furnace
Operating on the principle of medium-frequency induction heating in a hydrogen-protected environment after vacuum pumping, it is mainly used for powder forming and sintering of refractory alloys such as tungsten, molybdenum, and their alloys. Divided into horizontal and vertical structures, it can also be applied to vacuum sintering, gas-protected sintering, and conventional sintering of semiconductor components and power rectifier devices. Meanwhile, it supports extended processes such as vacuum heat treatment and vacuum brazing, serving as key equipment in scientific research, military, and semiconductor industries.

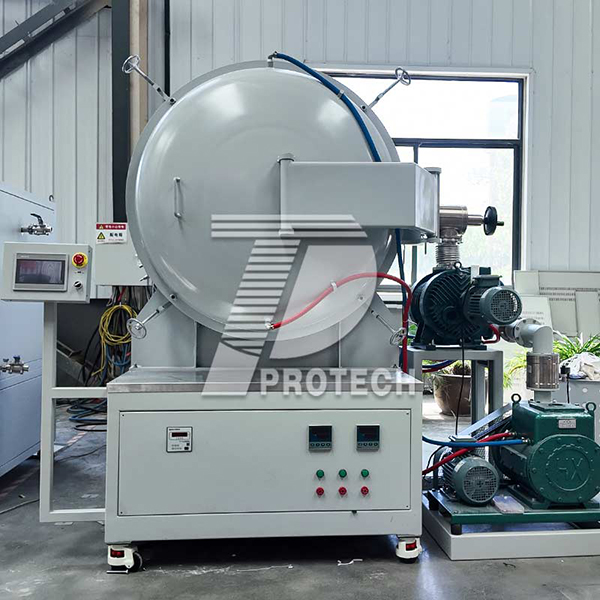

4. Vacuum Annealing Furnace
Boasting the core advantage of "no oxidation," it is suitable for processing stainless steel deep-drawn parts (such as plumbing fixtures), stainless steel bearings, cutting tools, self-tapping screws, and other products. It features high productivity and bright surface finish of processed products, and can be used in a protective atmosphere with low pollution. Its vacuum environment acts as a barrier for high-precision metal parts, preventing contact with complex gas components at high temperatures, and it can also be used as an atmosphere annealing equipment.

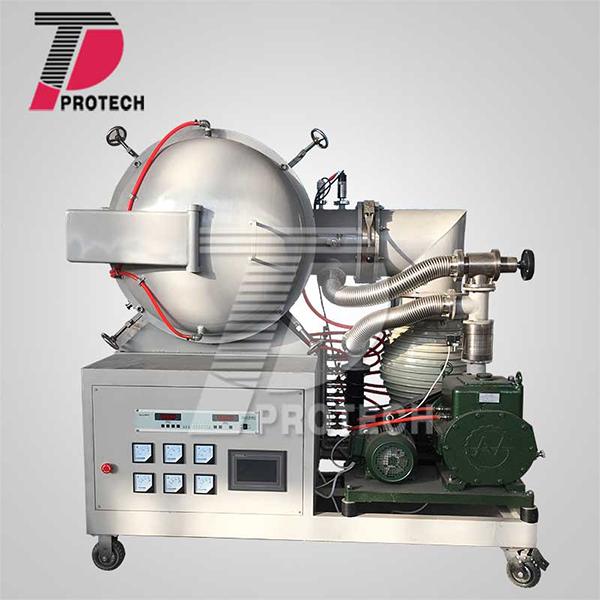

5. Vacuum Tempering Furnace
Focusing on regulating the surface quality and performance of parts after tempering, it is applicable to high-temperature tempering of tool and die steel, as well as stress relief and softening annealing of superalloys, elastic alloys, copper alloys, and titanium alloys. Its core advantage is that the parts have a bright surface without oxidation color after treatment, and it also has a rapid cooling function, meeting the processing needs of parts with high requirements for surface precision and performance.

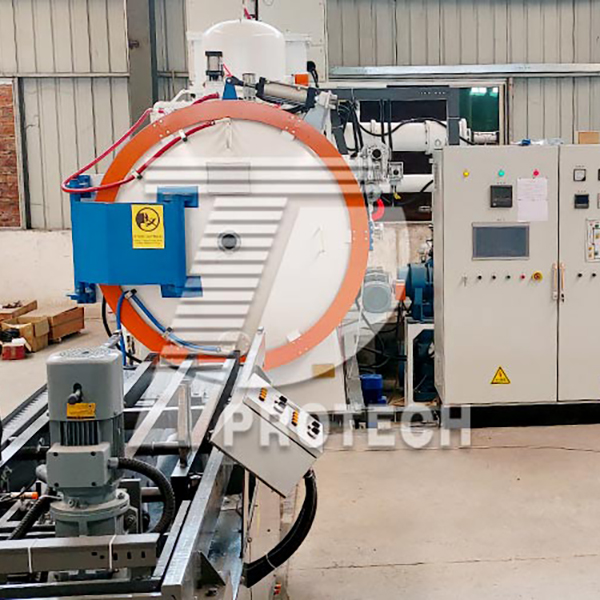

6. Vacuum Oil Quenching Furnace
With a wide range of applicable materials including mold steel, spring steel, stainless steel, bearing steel, and high-temperature alloy steel, it is mainly used for vacuum heat treatment and can also perform annealing. It features strong hardenability, low cost, and reusable quenching oil. Structurally, it can be divided into double-chamber furnaces and triple-chamber furnaces. It should be noted that the processed workpieces have a relatively large deformation and require subsequent cleaning.

II. Core Advantages of Vacuum Furnace Process Applications
Compared with traditional heat treatment equipment, vacuum furnaces exhibit significant advantages in process realization, product quality, and application scope due to the unique properties of their vacuum environment:

1. Strong Process Compatibility, Covering Complex Needs
It can one-stop realize multiple processes such as vacuum quenching and tempering, vacuum annealing, vacuum solution and aging treatment, vacuum sintering, vacuum chemical heat treatment, and vacuum coating. It can complete complex process combinations that traditional equipment cannot handle, adapting to full-scenario needs from basic heat treatment to high-end material modification, reducing equipment investment and process flow costs.

2. Excellent Product Quality, Ensuring Both Surface and Performance
The vacuum environment isolates air, avoiding oxidation and decarburization of workpieces during heating. The processed products have a bright and clean surface without the need for additional cleaning processes such as grinding and pickling. Meanwhile, precise temperature control and environmental regulation can ensure uniform material structure, improve core properties such as hardness, toughness, and wear resistance of workpieces, and guarantee product consistency.

3. Wide Range of Applicable Materials, Adapting to High-End Manufacturing
It can process various special materials such as stainless steel, titanium alloy, cemented carbide, superalloy, non-ferrous metals, and semiconductor materials. It is particularly suitable for scenarios with high material performance requirements in scientific research, military, aerospace, and other fields. Whether it is the sintering forming of refractory alloys or the stress relief treatment of precision parts, it can accurately meet technical requirements.

4. Environmental Protection and Energy Saving, Conforming to Industrial Development Trends
Vacuum furnaces emit no pollutants such as oil fume and waste gas during operation. Media such as quenching oil can be reused, reducing environmental burden and resource waste. Meanwhile, the heat transfer efficiency in a vacuum environment is higher, and the energy consumption during heating is lower, aligning with the green and energy-saving development direction of modern manufacturing and reducing enterprise production and environmental governance costs.

III. Conclusion
With their diverse types, precise application adaptation, and prominent application advantages, vacuum furnaces have become core equipment for material processing in the high-end manufacturing field. From precision components in aerospace to semiconductor devices in the electronics industry, from performance modification of mold steel to sintering forming of ceramic materials, the application scenarios of vacuum furnaces continue to expand. As manufacturing industries have increasingly high requirements for product quality and process precision, vacuum furnaces will play a key role in more high-end fields, driving material processing technology towards a more efficient, precise, and environmentally friendly direction.
