Optimization and Industrial Application of Rotary Tube Furnace in Graphene Oxide Reduction

1. Core Requirements and Technical Pain Points of Graphene Oxide Reduction
As a precursor of graphene, graphene oxide is rich in oxygen-containing functional groups such as hydroxyl, epoxy, and carboxyl groups on its surface and edges. These functional groups make it easy to disperse in aqueous solutions but destroy the conjugated structure of carbon atoms, leading to a significant decline in electrical and thermal conductivity. Therefore, the core goal of reduction treatment is to efficiently remove oxygen-containing functional groups and restore the intrinsic properties of graphene.

Current industrial reduction faces three core pain points: first, traditional static furnaces suffer from uneven heating of materials, which may easily cause local over-reduction leading to sheet damage or incomplete reduction affecting product performance; second, the expansion and carbonization processes are carried out separately, requiring manual material transfer, which not only results in low production efficiency and serious energy waste but also poses dust pollution and safety hazards; third, insufficient precision in atmosphere control may easily lead to secondary oxidation during reduction, reducing carbon yield and product consistency.
The rotating structure and sealing design of the rotary tube furnace directly address these pain points. Through full contact between materials, heat sources, and atmospheres, as well as a continuous operation mode, it serves as a key bridge connecting laboratory research and industrial production.

2. Structural Advantages and Technological Innovations of Rotary Tube Furnaces
2.1 Key Structural Design Features

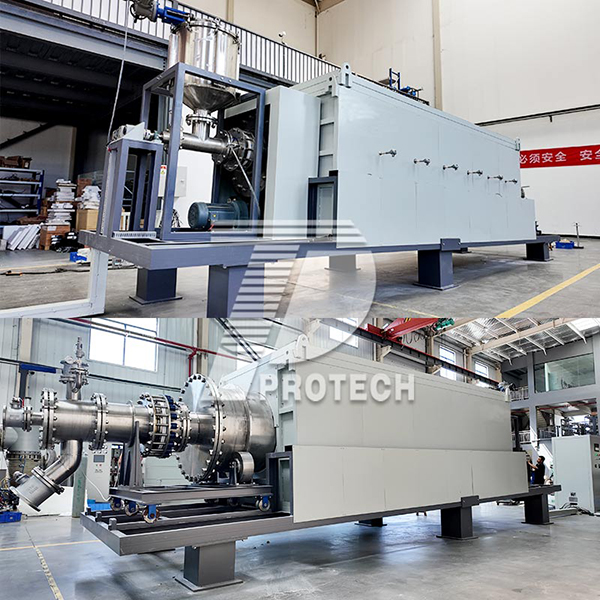

The main body of a rotary tube furnace consists of a tube, heating system, support module, transmission system, and sealing unit. As the core reaction area, the tube is usually made of 310S stainless steel, which is high-temperature resistant, acid-alkali corrosion resistant, and high-strength. It can adapt to the acidic characteristics of graphene oxide and high-temperature reduction environments. The outer diameter of mainstream tubes on the market can reach 300mm, meeting the needs of mass production.
The spiral guide plate welded on the inner wall of the tube is a key design. Through a spiral structure with a fixed lead, it can continuously push materials forward when the tube rotates, realizing the continuous connection of expansion and carbonization processes. The heating system mostly adopts a modular design, with a common configuration of 7 independent heating modules (1 for the expansion section and 6 for the carbonization section). The temperature is raised from 200°C to 1400°C in 200°C gradients. Combined with temperature sensors and PLC control systems, precise temperature control of each module can be achieved.

2.2 Breakthroughs in Key Technological Innovations
To solve the sealing and continuity problems of traditional equipment, the new rotary tube furnace uses a dynamic-static sealing unit to integrally connect the expansion furnace body and carbonization furnace body. The sealing unit includes a rotating ring flange, stationary ring, and sealing support. Combining grease sealing with a water-cooling structure, it not only ensures the tightness of the furnace body but also controls the surface temperature of the equipment below 50°C, completely solving the safety hazards of high-temperature operations.
The support module adopts a symmetric roller design, which is in direct contact with the tube to achieve central positioning, ensuring stable rotation of the tube. The transmission system can precisely control the residence time of materials in the tube by adjusting the rotation speed, adapting to different reduction process requirements. This structural innovation enables the continuous operation of expansion and carbonization processes without manual intervention, greatly improving production efficiency while reducing pollution and loss during material transfer.

3. Optimization of Key Process Parameters for Graphene Oxide Reduction
3.1 Temperature and Heating Program: Core Determinants of Reduction Degree
Temperature is a key factor affecting the removal efficiency of oxygen-containing functional groups, which needs to be precisely regulated according to product applications:
Low-temperature range (300–500°C): The removal rate of functional groups is about 50%-70%. Although the electrical conductivity recovery is limited, the sheet structure is less damaged and the dispersibility is excellent. It is suitable for scenarios requiring high dispersibility such as composite material fillers.
Medium-temperature range (600–800°C): The removal rate of functional groups reaches 70%-90%, balancing electrical conductivity and dispersibility. It is the optimal choice for general scenarios and applicable to most industrial products.
High-temperature range (800–1400°C): The removal rate of functional groups exceeds 90%, the conjugated structure is fully restored, and the electrical and thermal conductivity are excellent. However, it is prone to sheet stacking and agglomeration, with high energy consumption. It is suitable for high-end electrode materials and other scenarios requiring strict performance.
The heating rate is recommended to be controlled at 5–10°C/min to avoid sheet thermal shock damage caused by excessive heating rate. During the cooling stage, an inert atmosphere should be maintained, and natural cooling or rapid cooling can be used to prevent secondary oxidation.

3.2 Atmosphere Selection and Control: Key Guarantee Against Oxidation
The reduction process needs to isolate air or introduce reducing gases. Different atmospheres are suitable for different process requirements:
Inert atmosphere (N₂, Ar): The most common scenario with a purity requirement of ≥99.99%. It can effectively isolate oxygen, prevent secondary oxidation, and is suitable for conventional thermal reduction processes with high safety and low cost.
Reducing atmosphere (H₂, H₂/N₂ mixed gas): H₂ can reduce the reduction temperature by 100–200°C and improve reduction efficiency. However, the H₂ concentration should be controlled below 10% with explosion-proof devices to avoid safety risks.
Vacuum environment (vacuum degree ≤10⁻²Pa): It can accelerate the desorption of oxygen-containing functional groups and reduce agglomeration, suitable for high-precision laboratory preparation. However, the equipment cost is high, so it is not recommended for large-scale industrial applications.

3.3 Rotation Speed and Residence Time: Key to Balancing Efficiency and Effect
Rotation speed directly affects the contact efficiency between materials, heat sources, and atmospheres, and also determines the residence time:
The conventional rotation speed range is 5–20r/min. A rotation speed that is too low (<5r/min) may easily cause material accumulation and uneven heating; a rotation speed that is too high (>20r/min) results in too short residence time and incomplete reduction.
The residence time needs to match the temperature. It should be extended to 90–120min in a low-temperature environment and can be shortened to 30–60min in a high-temperature environment. Precise control of residence time can be achieved through the lead design of the spiral guide plate and rotation speed adjustment.

3.4 Material State and Feeding Method: Important Links to Optimize Dispersibility
Solid powder feeding: It needs to be dried at 80–100°C for 2–4h in advance to control the moisture content ≤5%, avoiding sheet agglomeration caused by water vapor during reduction. The feeding amount is 1/5–1/3 of the tube volume.
Slurry feeding: The GO dispersion (concentration 5–10mg/mL) is sprayed into the tube through an atomizer, with an atomized particle size controlled at 10–50μm. It is suitable for continuous production, which can reduce agglomeration and improve product dispersibility.

4. Process Advantages and Solutions to Common Problems
4.1 Core Process Advantages
High product consistency: Rotational movement breaks material accumulation, and combined with modular precise temperature control, the reduction degree of rGO is uniform with small performance fluctuations.
Improved production efficiency: The integrated continuous operation mode increases production efficiency by 3–5 times compared with traditional step-by-step processes, reducing energy waste and labor costs.
Safety and environmental protection: The sealed furnace body and water-cooling structure avoid dust leakage and high-temperature risks, reduce emissions of CO, CO₂ and other gases, and improve carbon yield.
Strong adaptability: It can flexibly switch between inert and reducing atmospheres, and adjust parameters such as temperature and rotation speed to meet the preparation of rGO with different performance requirements.

4.2 Common Problems and Solutions
Severe product agglomeration: Reduce the reduction temperature, increase the tube rotation speed, or add dispersants such as polyvinylpyrrolidone to GO, and assist with ultrasonic dispersion after reduction.
Insufficient reduction degree: Increase the temperature, extend the residence time, switch to a reducing atmosphere, and check the atmosphere purity and furnace tightness.
Excessive sheet damage: Reduce the heating rate (≤5°C/min), decrease the rotation speed, and avoid long-term high-temperature treatment.
Secondary oxidation: Ensure an inert atmosphere during the cooling stage, seal and store quickly after reduction, and optimize the sealing effect of the dynamic-static sealing unit.

5. Industrial Application Scenarios and Development Trends
5.1 Mainstream Application Fields
The rotary tube furnace reduction process has been widely used in multiple high-value fields:
Electrode materials: Highly conductive rGO is used in lithium batteries and supercapacitor electrodes to improve energy density and charge-discharge efficiency.
Composite materials: Highly dispersible rGO is used as a filler for plastic, rubber, and metal matrix composites to enhance mechanical properties and thermal conductivity.
Electronic devices: High-precision rGO is used in flexible electronics and sensors, leveraging its excellent conductive and sensing properties.
Environmental protection materials: rGO-based adsorbent materials are used for water pollutant treatment, utilizing a large specific surface area to improve adsorption capacity.

5.2 Future Development Trends
With the rapid development of the graphene industry, the rotary tube furnace reduction process will upgrade in three directions: first, equipment enlargement to expand the diameter and length of the tube, further increasing the single processing capacity; second, intelligent control to integrate AI algorithms to achieve adaptive optimization of parameters such as temperature, rotation speed, and atmosphere; third, multi-functional integration to integrate drying, reduction, modification and other processes into one, shortening the process flow and reducing production costs.
With its unique structural advantages and flexible process adaptability, the rotary tube furnace is becoming the core equipment for industrial reduction of graphene oxide, promoting the transformation of graphene materials from laboratory to large-scale application and providing key support for the technological upgrading of related industries.
