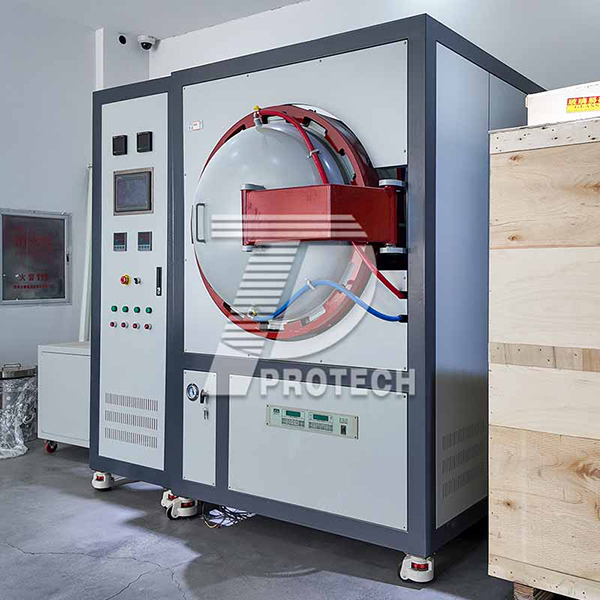

Protech Vacuum Furnace Leads the Efficiency Revolution in Industrial Heat treatment

In industrial manufacturing, heat treatment efficiency directly impacts an enterprise’s production rhythm, cost control, and market competitiveness. As key heat treatment equipment, vacuum furnace performance is the "core engine" for efficiency improvement—its heating speed, cooling uniformity, and automation level determine heat treatment cycle length, energy consumption, and product quality stability. With years of vacuum furnace R&D and manufacturing experience, Zhengzhou Protech Technology Co., Ltd. has identified core industrial pain points (low efficiency, high energy consumption, cumbersome maintenance) and developed a comprehensive efficiency solution via equipment structure optimization, intelligent process upgrading, and energy control. This solution shortens production cycles, cuts energy costs, and supports efficient, stable, and sustainable heat treatment lines while ensuring product precision.

1. Heating System Optimization: Shortening Core Cycles with Precise Temperature Control
The heating link is fundamental to heat treatment cycles. Traditional vacuum furnaces suffer from slow heating, excessive heat preservation, and high heat loss. Protech vacuum furnaces address these via triple optimization of heating elements, temperature control systems, and furnace structures, boosting heating efficiency and energy performance.

1.1 High-Efficiency Heating Elements & Scientific Layout
Heating element material and installation directly affect heating speed. Protech abandons traditional low-efficiency resistance wires, adopting high-density molybdenum wires or silicon carbide rods—materials with 30% faster thermal response, enabling rapid temperature attainment and lower energy loss.
A circumferential/distributed installation ensures uniform heating element placement on furnace inner walls, forming a dead-angle-free radiant zone. This avoids local heat accumulation, ensuring synchronous workpiece heating and reducing adjustment time. For 500mm-diameter mold steel modules, traditional furnaces take 2 hours to heat from room temperature to 1000℃; Protech furnaces complete this in 1.5 hours, cutting single-furnace heating time by 25%.

1.2 Multi-Stage Intelligent Heat Preservation
Efficiency in heat preservation lies in "precise matching" rather than "long constant temperature." Protech’s intelligent temperature control system uses multi-stage heat preservation, presetting temperature-specific holding times to eliminate waste from over-preservation.
For high-speed steel tool heat treatment, 30 minutes of holding at 600℃ suffices to eliminate internal stress (no need for extended high-temperature holding at 1050℃), shortening total holding time by 15%-20%. The system’s built-in material database (mold steel, high-speed steel, stainless steel, aluminum alloy) auto-matches optimal parameters, reducing process preparation time for multi-variety production.

1.3 Multi-Layer Composite Insulation Structure
Furnace insulation affects heat loss and temperature stability. Protech uses a "high-temperature ceramic fiber + lightweight insulation brick" composite structure: inner ceramic fiber blocks heat transfer, while outer insulation bricks enhance efficiency and reduce furnace weight.
This design cuts furnace heat loss by 40% vs. traditional models, reducing heating element reheat frequency during preservation. This saves energy, avoids temperature fluctuations, and speeds thermal equilibrium. An auto parts enterprise increased daily heat treatment output from 8 to 11 furnaces after adopting Protech furnaces, with heating efficiency as a key driver.

2. Cooling System Upgrade: Breaking Cycle Bottlenecks
Cooling speed and uniformity determine workpiece mechanical properties and total heat treatment cycles. Traditional vacuum furnaces have slow flow rates, uneven distribution, and weak continuous operation. Protech upgrades gas and oil quenching systems, combining intelligent control to boost cooling efficiency and quality.

2.1 Vacuum Gas Quenching: High-Speed Airflow & Uniformity
Gas circulation speed and distribution are critical for gas quenching efficiency. Protech uses large-flow centrifugal fans and optimized deflectors, achieving over 30m/s cooling gas (nitrogen/argon) flow—1.5x faster than traditional furnaces. High-speed airflow breaks workpiece surface air film resistance, accelerating heat exchange.
For 20mm-thick 40Cr steel parts, Protech’s gas quenching furnace cools from 850℃ to 200℃ in 3 minutes (40% faster than traditional equipment) under 0.6MPa nitrogen pressure. Porous deflectors ensure uniform gas distribution, controlling cooling uniformity within ±5℃ and reducing post-correction processes.

2.2 Vacuum Oil Quenching: Double-Circulation Stability
Protech’s oil quenching furnaces use a double-circulation system: internal circulation cools workpieces directly, while external circulation cools oil via heat exchangers, limiting quenching oil temperature rise to ≤10℃. This maintains consistent cooling capacity during continuous production, cutting single-furnace cooling time by 20% vs. traditional models.
A mold factory processing Cr12MoV molds achieves stable 8-minute cooling per furnace with Protech equipment, enabling 3 additional daily furnace runs and relieving delivery pressure.

2.3 Intelligent Dynamic Cooling Control
Protech’s intelligent cooling system adjusts intensity based on real-time workpiece temperature: maximum power above 600℃ (speeding past pearlite transformation zones) and reduced speed below 300℃ (minimizing internal stress). This ensures quenching hardness, eliminates wasted cooling time, and boosts cooling energy efficiency by 25%.

3. Automation & Intelligent Control: Minimizing Human Intervention
Manual operation cumbersome ness and uncertainty limit heat treatment efficiency. Protech integrates automated equipment and intelligent controls, enabling minimal-human operation from loading to unloading, enhancing production continuity and stability.

3.1 Automatic Loading/Unloading: Efficient Material Flow
Protech furnaces integrate with industrial robots or conveyors, automating workpiece grabbing, positioning, loading, and unloading via preset programs. For bearing ring mass processing, robots complete one furnace’s loading/unloading in 3 minutes (2x faster than manual operation) with ±1mm accuracy, ensuring uniform workpiece distribution.
A bearing enterprise reduced heat treatment labor costs by 60% and eliminated collision damage, raising qualification rates from 98% to 99.5% after adopting this system.

3.2 Intelligent Process Management
Protech’s control system includes over 1000 standard process recipes (mold steel, high-speed steel, stainless steel, titanium alloy). Operators input workpiece material, size, and performance requirements to auto-call parameters (heating temperature, holding time, cooling speed), eliminating manual calculations.
The system supports real-time parameter modification with immediate effect, cutting changeover preparation time. A tool factory reduced process preparation from 1 hour to 10 minutes, improving small-batch flexibility.

3.3 Intelligent Fault Diagnosis & Early Warning
Sensors monitor 20+ core parameters (vacuum pump pressure, heating element current, cooling water temperature). Abnormalities trigger audio-visual alarms and display fault points/solutions (e.g., "Low vacuum pump oil—add special oil," "Insufficient cooling water flow—check filter").
This predictive maintenance extends mean time between failures by 50%. An aviation parts enterprise reduced unplanned downtime, adding 8 monthly effective production hours.

Conclusion
Industrial heat treatment efficiency improvement requires coordinated advances in core processes, equipment performance, and intelligence. Zhengzhou Protech Technology integrates innovation with practical needs, achieving efficiency leaps in vacuum furnaces via heating/cooling optimization and intelligent upgrades. For efficiency-focused enterprises, Protech vacuum furnaces shorten cycles, cut costs, improve quality, and lay a foundation for sustainable development in competitive markets.
