Can Tube Furnaces Burn Liquids?

As a common heating equipment, the tube furnace is widely used in scientific research experiments and industrial production. As to whether it can burn liquids or wet substances, we need to analyze it from its working principle and design features.

1. Working principle of tube furnace

Heat conduction and convection: In a vacuum or inert gas environment, heat is mainly transferred to the sample by heat conduction and convection. Since the thermal conductivity of gas under vacuum conditions is poor, heat conduction becomes the main heat transfer method. At the same time, the temperature gradient in the furnace will drive natural convection, further promoting heat transfer.

Sample heating: The sample to be processed is placed on the sample rack in the furnace. By adjusting the power and heating time of the electric heating element, the heating temperature and insulation time of the sample can be controlled to achieve the desired heat treatment effect.

Vacuum and inert gas protection: In order to prevent the sample from oxidizing or undergoing other chemical reactions at high temperatures, the vacuum tube furnace usually uses a vacuum pump to remove the air in the furnace, and fills it with inert gas (such as argon, nitrogen, etc.) for protection when necessary. This ensures that the sample is heated in a pure environment.

2. Can the tube furnace burn liquids?

In theory, a tube furnace can be used to heat liquids if the liquid can be properly placed in the furnace tube and the furnace tube can withstand the pressure, corrosion and temperature changes that may occur during the heating of the liquid. However, in practical applications, the following points should be noted when using a tube furnace to heat liquids:

Choose the right crucible

When using a tube furnace to burn liquids, it is crucial to choose the right crucible. The crucible is in direct contact with the heat source, so high-temperature and corrosion-resistant materials must be selected. Common choices include tungsten crucibles or quartz crucibles, which can withstand high temperatures and resist chemical corrosion.

Keep the heating process stable

The burning of liquids usually takes a long time and requires precise temperature control. Therefore, the stability of heating should be ensured throughout the process to avoid overheating or cooling too quickly.

Protect site safety

Harmful gases, steam or smoke may be generated during the burning of liquids. In order to ensure the safety of operators, appropriate ventilation equipment should be equipped to effectively discharge exhaust gas and maintain the safety of the site environment.

Special precautions

For liquids containing flammable components (such as ethanol), due to their low ignition point, they are very likely to cause combustion or even explosion in a high temperature environment. Therefore, it is not recommended to heat them directly in a tube furnace. If it is really necessary to treat such liquids, the flammable components should be removed first, or other more suitable equipment and technical means should be selected.

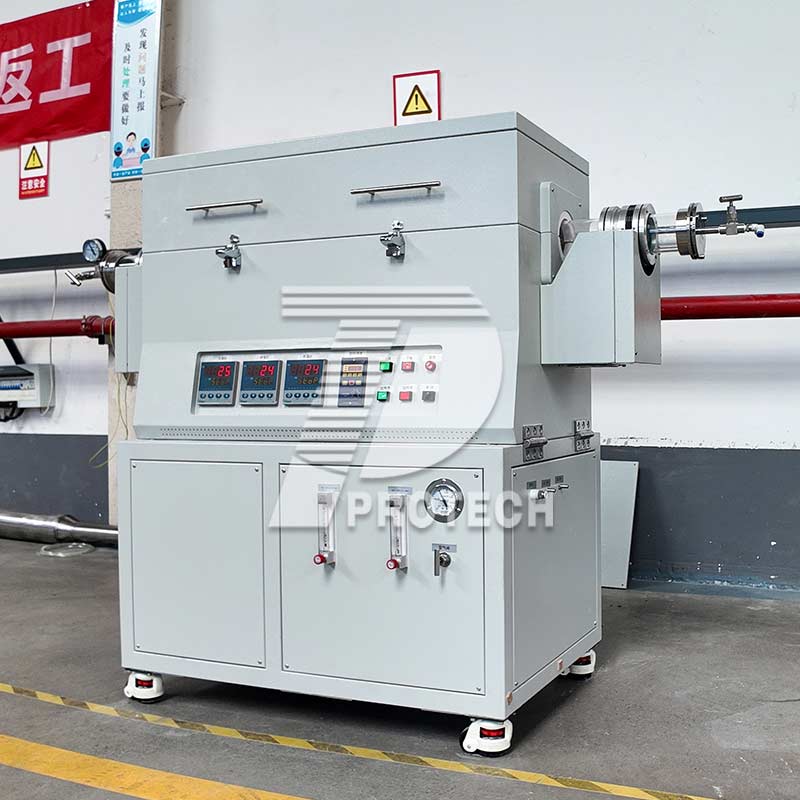

Protech Tube Furnace
click the picture to learn more

3. Can tubular furnaces burn wet substances?

Compared with liquids, wet substances are more complicated. Wet substances usually contain water and other solid components. The water evaporates during heating, and the solid components may undergo chemical reactions or physical changes. Therefore, when using a tubular furnace to burn wet substances, the following points should also be noted:

The nature of wet substances: Understand the composition and properties of wet substances, especially the water content and the characteristics of the solid components, so as to reasonably set the heating conditions and take corresponding safety measures.

Pretreatment: Pre-treat the wet material as needed, such as drying, grinding, etc., to improve its performance during heating and reduce potential risks.

Control of heating conditions: Strictly control key parameters such as heating temperature, heating rate and holding time to ensure that the wet material can be heated evenly and achieve the expected reaction effect. At the same time, pay close attention to changes in the heating process and adjust the experimental plan in time to ensure safety and controllability.

Tail gas treatment: For wet material heating experiments that may produce harmful tail gas, corresponding tail gas treatment measures need to be taken to protect the environment and the health and safety of operators.

In summary, tube furnaces can be used to burn liquids and wet materials under certain conditions. However, in practical applications, it is necessary to fully understand the properties of the material to be heated, select appropriate furnace tube materials and heating conditions, and take necessary safety protection measures to ensure the safety and controllability of the experimental process. At the same time, operators need to have corresponding professional knowledge and experimental skills to deal with various situations that may arise.
