model:PT-M1700

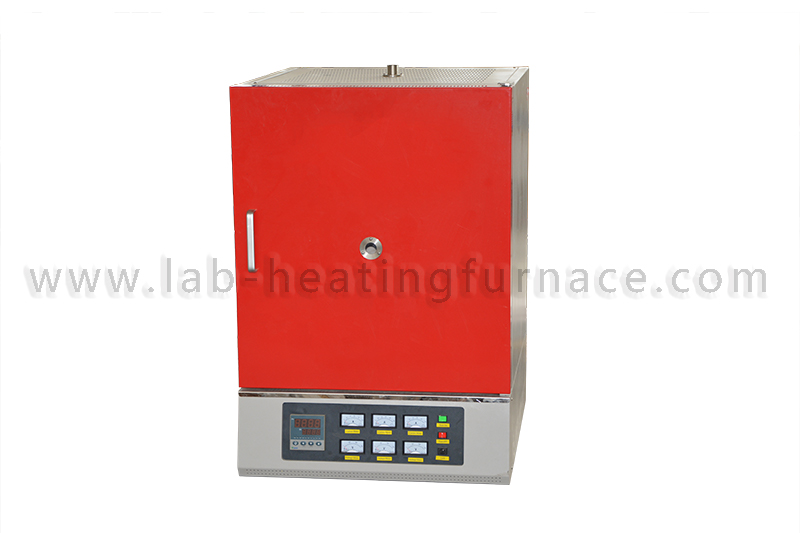

Muffle furnace with windows

Application

Contact us for customize send-email: info@lab-furnace.com

Detailed Parameters Of The Product

Product overview:
1. The muffle furnace has a window hole, which can be observed during combustion, which is very helpful to the experiment. In addition, the muffle furnace has a unique touch screen control system, which makes the graphical interface of the control more accurate and easy to operate.
2. The furnace or furnace chamber technology made of unique high-purity alumina fiber material has excellent thermal insulation performance, thus reducing power consumption by 30%
3. It can be equipped with computer software interface to monitor and operate the PC globally.
Technical parameters:

model	PT-M1700
Chamber mode	Side door
display	Touch screen (LCD)
Maximum temperature	1600 degrees Celsius
Operating temperature	<= 1500 degrees Celsius
Heating rate	It recommended 0~ 10 deg.] C / min
Temperature zone	single
accuracy	+ -1 degrees Celsius
Inner cavity size	120 * 120 * 130 (mm)
Heating element	MoSi2
Thermocouple	Type B
Highest power	1.8kw
Operating Voltage	AC 208V-240V single phase, 50/60 Hz
temperature control	PID automatic control through SCR power control
Heating curve	30 steps programmable
Cabinet material	Alumina fiber
Dimensions	390 * 430 * 620 (mm)
Guarantee	One year limited warranty (for wearing parts, such as heating elements Not covered by warranty)
