Multi-zone tube furnaces help a German research institution achieve high-precision synthesis of graded functional materials.

1. Client Introduction

Client Name: Advanced Materials Research Center in Germany

Industry: New Materials R&D, Functionally Graded Materials, Thermoelectric Devices

Core Needs: Independent control of different temperature zones within a single furnace tube for one-step synthesis of functionally graded materials (such as thermoelectric materials and gradient-doped semiconductors), avoiding interface contamination and thermal mismatch caused by multiple sintering processes in traditional single-zone furnaces.

This research center has long been dedicated to the development of new energy conversion materials and devices, with a particular focus on thermoelectric materials (such as Bi₂Te₃, PbTe, and squartz systems) and solid-state electrolytes. To improve material conversion efficiency, researchers have discovered that constructing gradient materials with continuously varying composition/microstructure along the heat flow direction can significantly optimize the performance of thermoelectric devices. However, traditional single-zone tube furnaces can only provide a uniform temperature field and cannot simultaneously achieve heat treatment of different temperature zones on the same sample. The client requires a multi-zone independently temperature-controlled tube furnace capable of creating multiple different temperature zones within the same furnace tube to achieve in-situ reaction and diffusion bonding of precursors at specific temperature gradients.

2. Equipment Introduction

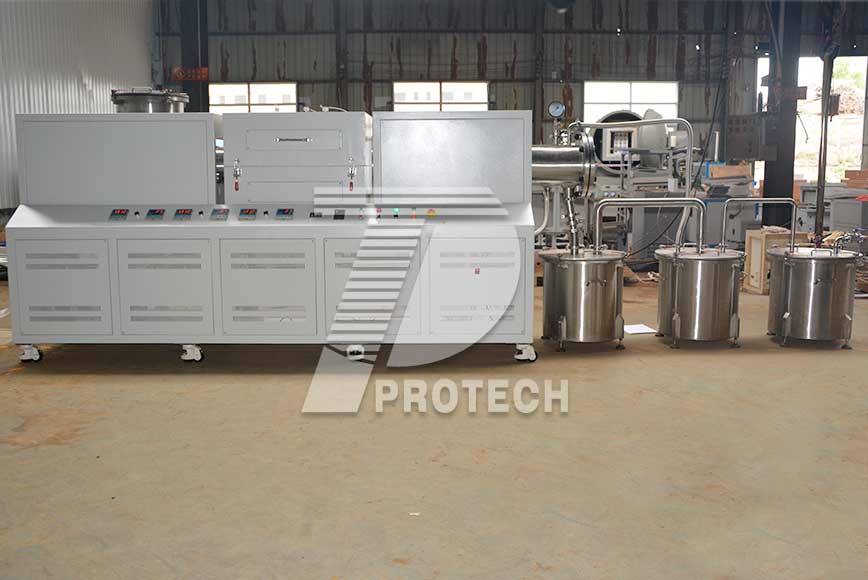

Equipment Name: Multi-zone Tube Furnace
Product Model: PT-RT1000-3Z
Operating Temperature: ≤1200℃ (Common Operating Temperature: 400～1100℃)
Tube Material: High-purity quartz tube or corundum tube (outer diameter 50/60/80/100mm optional)
Temperature Zone Configuration: 3 independent heating zones (2～5 zones can be customized), each zone is 150～300mm long
Heating Element: Molybdenum resistance wire/Fe-Cr-Al alloy wire, evenly wound in each zone
Insulation Material: High-purity alumina polycrystalline fiber, low heat capacity, energy-saving and efficient
Temperature Control System: Each zone is equipped with an independent PID controller + SCR power regulation, 30-segment programmable, temperature control accuracy ±1℃
Temperature Gradient Capability: Adjacent zones can be set with a temperature difference of 200～300℃ without interference
Atmosphere Control: Sealed flange system (stainless steel + silicone ring), vacuum possible (≤10⁻³) (Pa) or introduce Ar, N₂, H₂/Ar mixture, etc.
Control System: 7-inch touchscreen centralized control (optional), real-time display of temperature curves for each temperature zone and vacuum/atmosphere parameters
Safety Features: Over-temperature alarm, thermocouple breakage protection, furnace tube overpressure relief, electrical overcurrent protection

The core advantage of this series of multi-temperature zone tube furnaces lies in the ability to independently control the temperature of multiple zones within the same furnace tube, thereby creating a stable axial temperature gradient or segmented temperature plateau during the same experiment. This feature allows researchers to simulate the reaction, diffusion, and phase transition behavior of materials at different temperature zones, making it particularly suitable for the synthesis of functionally graded materials, temperature zone control in chemical vapor deposition (CVD), and the continuous completion of multi-step reactions within the same furnace tube.

3. Equipment Application

Specific Process: One-step synthesis of functionally graded thermoelectric materials (taking Bi₂Te₃/Sb₂Te₃ graded materials as an example)

Processing Objects:
Bi₂Te₃-based thermoelectric materials (p-type and n-type);
PbTe-based graded structural materials;
Gradient-doped solid electrolytes.

Process Principle: Three different temperature zones are set up inside the furnace tube, corresponding to the reaction synthesis zone, diffusion bonding zone, and annealing zone of the material, respectively. Powder precursors or pressed samples are placed in a specially designed quartz boat. Through mechanical pushing or gradual movement, the sample sequentially passes through different temperature zones, ultimately obtaining a graded material with continuously changing composition or doping concentration along its length.

4. Customer Feedback

*“We chose this three-zone tube furnace because it perfectly matches our needs for synthesizing gradient thermoelectric materials. Previously, we had to use multiple independent tube furnaces or employ complex sample moving mechanisms. Now, we simply place a quartz boat containing the precursor inside the furnace tube, and by setting different isothermal temperatures in the three zones through a program, the sample can sequentially undergo high-temperature synthesis, gradient diffusion, and low-temperature annealing under the same protective atmosphere. What we are most satisfied with is the thermal insulation design between the temperature zones—even if zone 1 is set to 600℃, zone 3 can be stably controlled at 300℃, and the intermediate temperature zones are independently adjustable without affecting each other. In addition, the furnace heats up very quickly (approximately 15℃/min to 600℃), and the power fluctuation during the holding phase is minimal. We have already used this equipment to develop three new gradient thermoelectric materials and plan to purchase a five-zone model for more complex multilayer gradient structure research. Your company's technical support response was also very timely, helping us optimize the gas path arrangement under the temperature gradient. Highly recommended to colleagues engaged in functionally graded materials, CVD, and solid-state reaction research.”*

— Dr. Markus Weber, Senior Researcher at an Advanced Materials Research Center in Germany
