model:PT-T1700-80(400mm)

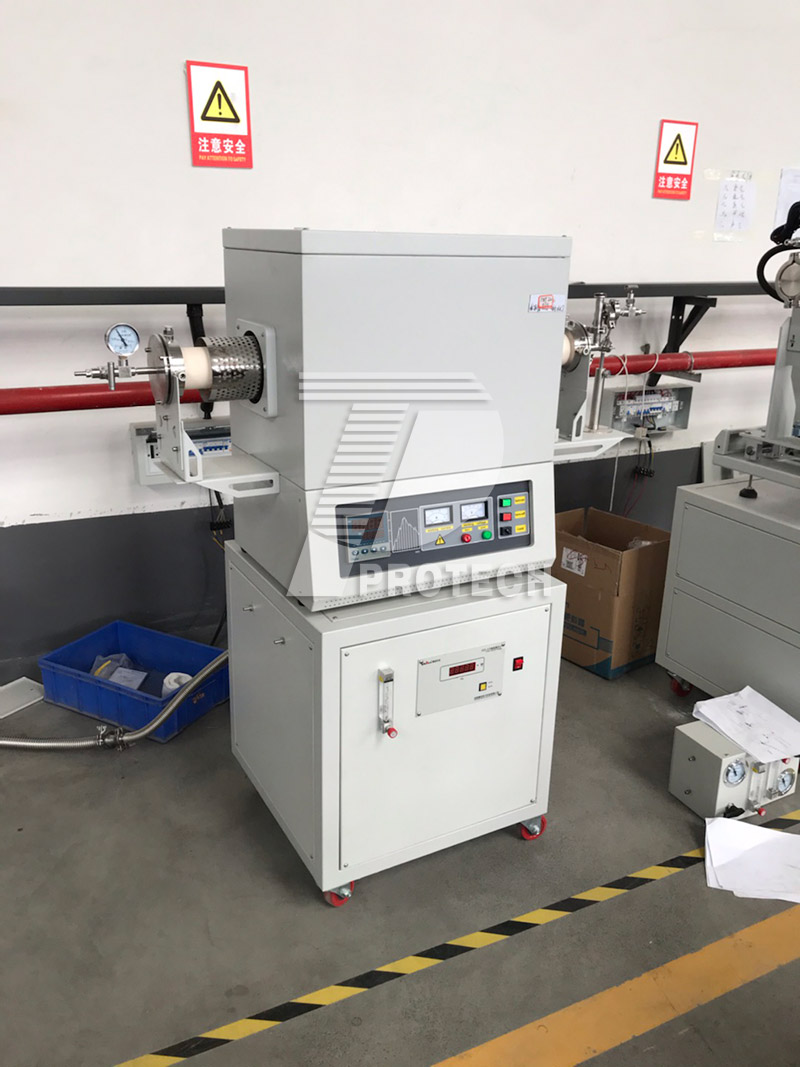

1700℃ Vacuum tube furnace

Application

Detailed Parameters Of The Product

Brief Introduction:
The vacuum tube furnace is mainly used in crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protection sintering, vacuum deposition, CVD experiment, material composition determination and other fields.Belongs to the conventional tube furnace series.
Technical Parameter:

Part 1 Tube furnace system

Model		PT-T1700-80(400mm)
Tube furnace	Display	LED Display
	Max. Temperature	1700℃
	Continuous Working Temperature	≤1600℃
	Heating Zone	single zone 400mm
	Heating Element	MoSi2 rod
	Thermocouple	B type
	Temperature Control Accuracy	±1℃
	Tube Size	OD 80mm ID 74mm Total length 1200mm
		Material: Alumina tube
	Temperature Control	PID automatic control via SCR power control
	Heating curves	30 steps programmable
	Heating rate	0-10C/min
	Protection	Over-heated protection
	Chamber material	Ceramic fiber
	Vacuum Flange	Mechanical pressure gauge and Stainless Steel vacuum flange(as is shown) (-0.1-0.15MPa)
	Power Supply	220V, 50Hz, about 5KW
	Standard Accessory	Alumina tube×1
		Thermal gloves×1
		Crucible hook×1
		Thermocouple
		Tube block×2
		User Manual×1
Gas system		One way float flowmeter Like N2: 25-250ml/min Gas flow range according to your need.
Part 2 Vacuum system
Vacuum pump+ connecting fittings		Vacuum rate -0.1MPa (rough vacuum) Vacuum pumping speed 120L/min
