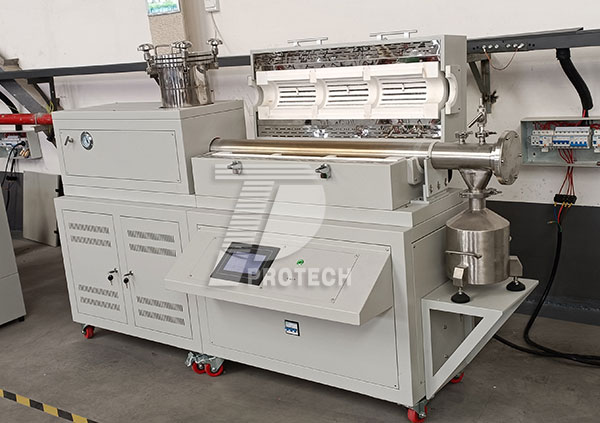

Three-zone Upper Feeding Rotary Tube Furnace
model:PT-T8-3

Three-zone Upper Feeding Rotary Tube Furnace

    Application:  The PT-T89-3 upper feeding three temperature zone rotary tube furnace uses molybdenum resistance wires as heating elements. The maximum temperature inside the furnace can reach 900 ℃.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
IntroductionvaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
PT-T89*220*3 Three-zone spiral feeding tube furnace uses resistance wire with Mo as heating element. Max. temperature inside furnace can be reached at 900℃. The furnace temperature profile can be set up to 16 curves by 30 segments and run automatically by the advanced temperature controller. It is multiple heating zone design for sample uniform heating, user can also set temperature gradient. Screw feeder inside the stainless tube and connect to motor shaft, good magnetic fluid seal for motor, screw feeder rotates along with motor working, samples get forward, so it can handle the samples continuously, meantime rotation speed is adjustable, from 0.05~2RPM, user can adjust sample dwell time in the hot zones. It is excellent for material research, ceramic research labs to develop various new materials.Belongs to a type of tube furnace.vaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Three-zone upper feeding rotary tube furnacevaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

vaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical Specifications
Chamber Structure Split design
Display LCD touch screenvaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Can be customized according to customer needs)
Working Temperature 900℃
Heating Rate 0~20C/min (suggest 0~15℃/min )
Tube material 310S
Tube with screw feeder Outer diameter: 89mmm  inner diameter:77mmvaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Can be customized according to customer needs)
Heating zone num 3
Unit heating zone length 220mmvaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Can be customized according to customer needs)
Heating Element Resistance wire with Mo
Thermocouple N Type
Temperature Control PID automatic control via SCR power control
Heating curves 16 curves, 30 steps programmable
Hopper volume 5L
Chamber material Alumina Fiber
Gas inlet and outlet Stainless steel gas inlet&outlet with needle valve
Limit working pressure 0.02MPa
Pressure Gauge Mechanical pressure gauge
Warranty One year warranty (Consumable parts such as heating elements and insulation material are not covered by the warranty)

vaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 Three-zone upper feeding rotary tube furnacevaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Three-zone upper feeding rotary tube furnacevaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vaJMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
