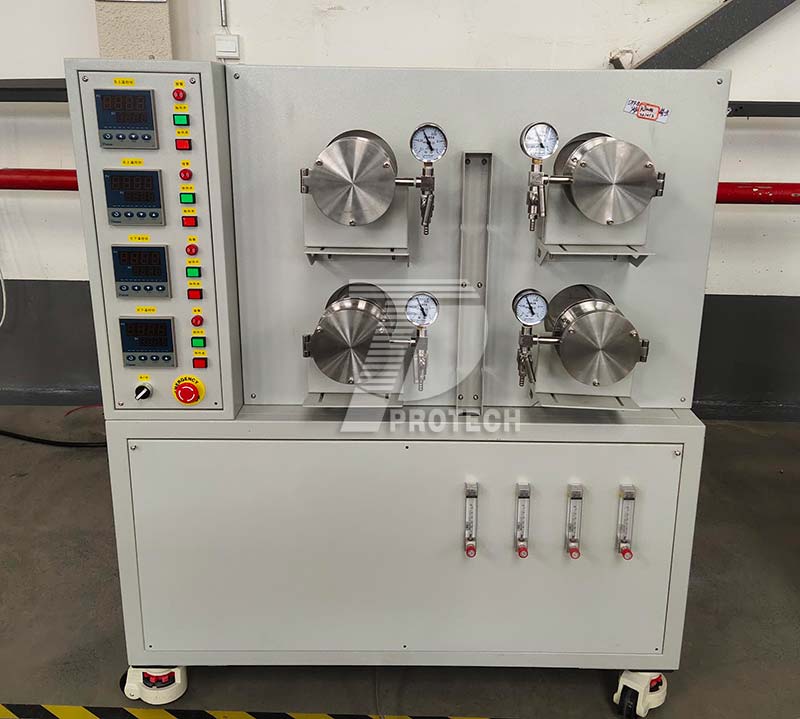

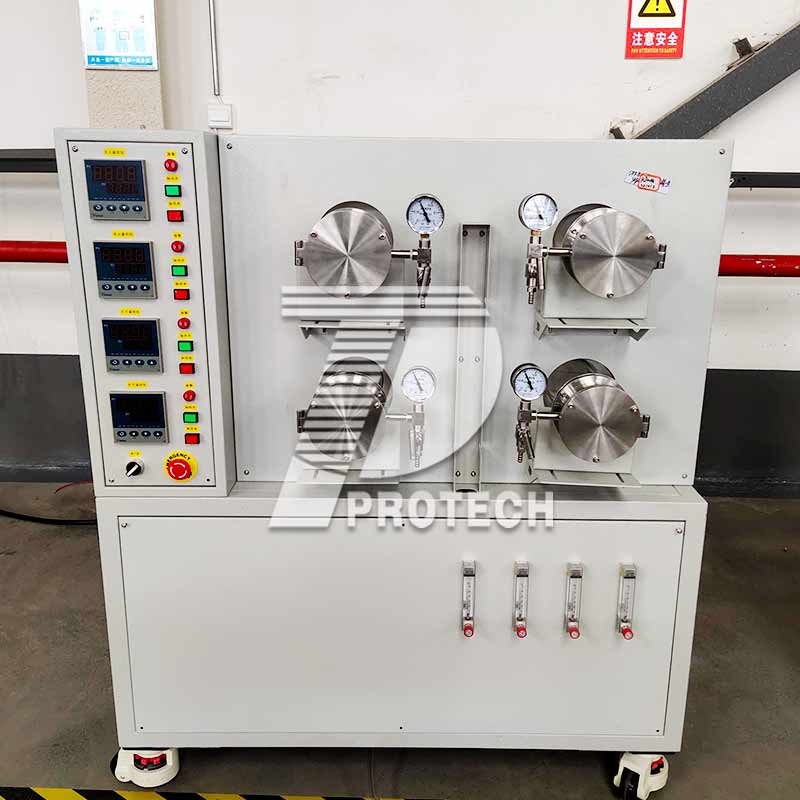

Four-channel tube furnace
model:PT-TG600-S100LB4

Four-channel tube furnace

    Application:  This multi-channel tube furnace has a furnace tube diameter of 100mm, which can be used for high-throughput sintering.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Product description:
Four-channel tube furnace has a furnace tube diameter of 100mm, which can be used for high-throughput sintering. The maximum temperature can reach 1200 degrees. Each heating module has an independent temperature control system.Each furnace tube adopts a vacuum-sealed flange It is airtight and can hold 4 samples at the same time for heat treatment at different temperatures under vacuum or atmosphere protection. It occupies a small area and has low energy consumption. It is an ideal product for high-temperature sintering and quality inspection in universities, scientific research institutes, and industrial and mining enterprises.Belonging to a type of
Multi-zones Tube Furnace.

Product name Four-channel tube furnace
Model PT-TG600-S100LB4
Working temperature 500℃
Max.temperature 600℃
Chamber material Alumina refractory fiber
Temperature Control System 30-segment programmable automatic control in PID mode for each channel; (touch screen integrated control is also optional)
Temperature control accuracy ± 1℃
heating rate 0~10 ℃ / min
temperature protection With over-temperature and broken couple alarm function
Furnace tube size per channel  Φ100mmX1000mm subject to actual needs
heating zone per channel Heating zone length 400mm
Vacuum Sealing System Each channel is equipped with a set of stainless steel vacuum sealing flanges
Heating element High resistance electric heating alloy wire
Operating Voltage AC 380       50 Hz
Maximum power approx. 12KW
Temperature measuring element K-type thermocouple temperature measurement, each channel thermocouple, to achieve ready temperature measurement and control
furnace tube High-purity quartz furnace tube
Precautions The pressure in the furnace tube should not be higher than 0.02MPa.
Due to the high internal pressure of the gas cylinder, when the gas is passed into the furnace tube, a pressure reducing valve must be installed on the gas cylinder to make it safer to use.
When the furnace is at high temperature, the furnace tube cannot be in a vacuum state, and the air pressure in the furnace tube must be equal to the atmospheric pressure and kept at normal pressure
