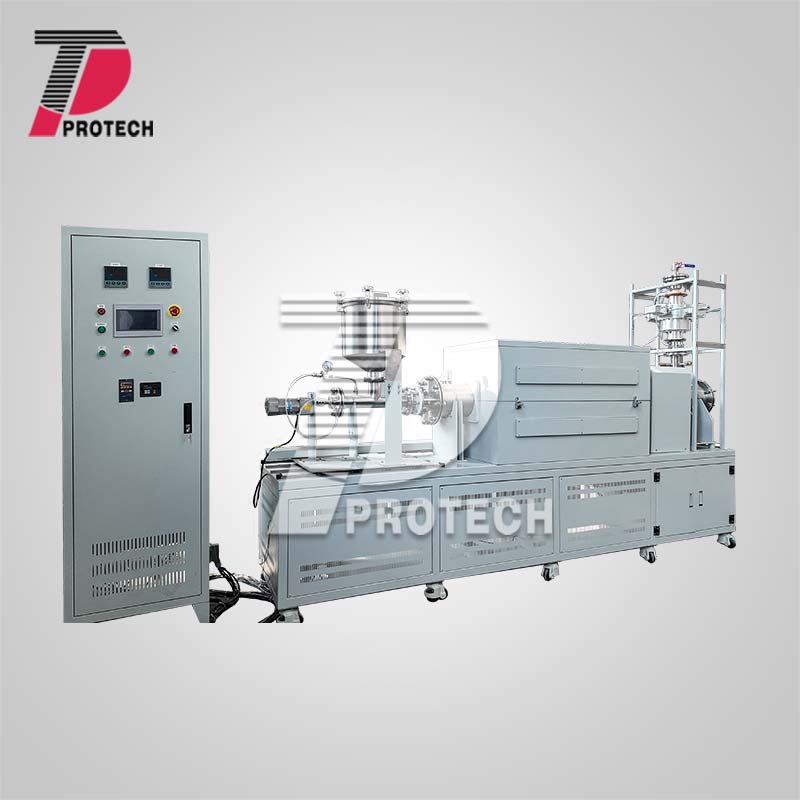

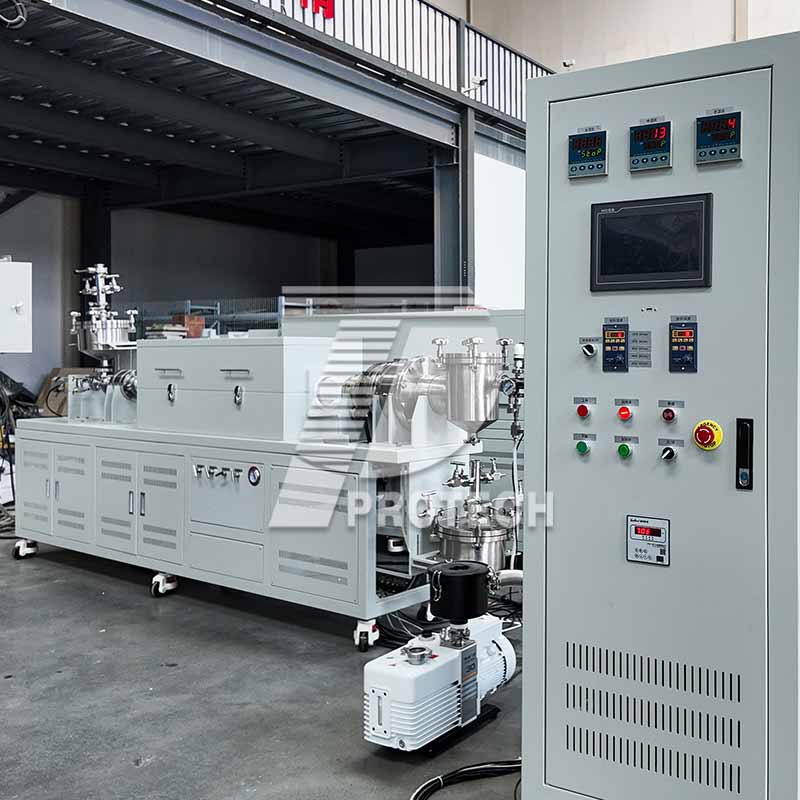

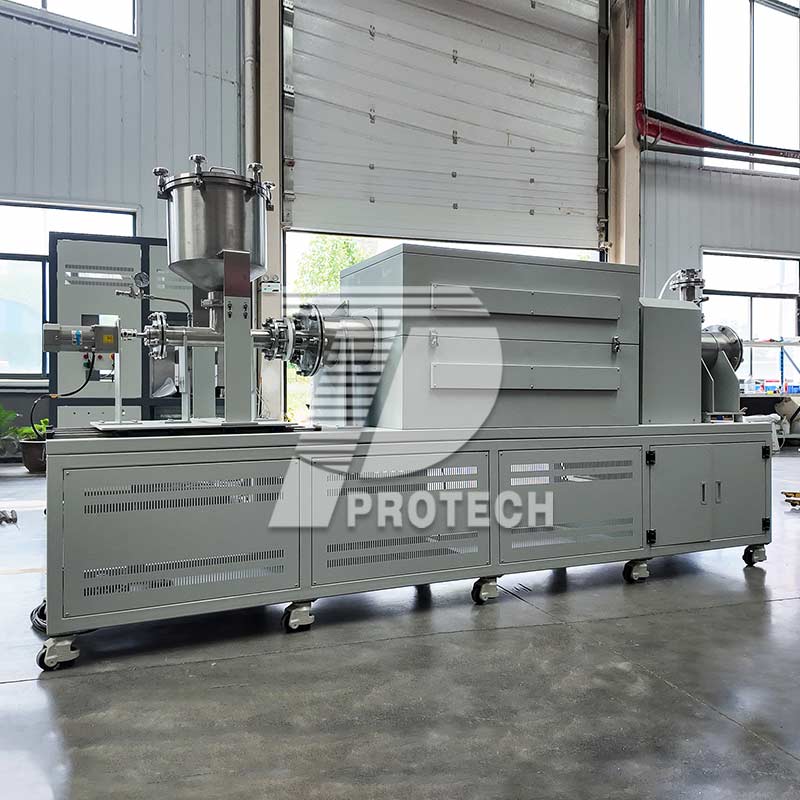

Continuous Metal Liner Small Rotary Kiln
model:PT-TX1000-H219

Continuous Metal Liner Small Rotary Kiln

    Application:  It is mainly used for continuous sintering and heat treatment of powder metallurgy, new energy materials (such as positive and negative electrodes of lithium batteries), ceramics and metal alloys.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Introduction65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The continuous in-and-out rotary tilting tube furnace is a high-temperature processing equipment that integrates a rotating tube, an adjustable tilting mechanism and a continuous feeding system. The furnace temperature range is 1200℃~1700℃. It uses corundum or quartz furnace tubes. The motor drives the furnace tube to rotate (frequency conversion speed regulation) and hydraulic/electric tilt adjustment (±90°) to achieve dynamic and uniform sintering of materials. It is suitable for continuous calcination, reduction and synthesis of powders and particles under atmosphere or vacuum conditions, and is widely used in material research and development and industrial production.65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Features65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Dynamic processing advantages: The tilted rotation design (adjustable angle) allows the material to be heated evenly, reduces temperature gradient stress, improves gas diffusion efficiency, and significantly improves material density and performance.65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Precision control: Temperature control accuracy reaches ±1°C, supports multi-stage programming temperature rise (0~20°C/min)13; can pass inert gas (N₂/Ar) or vacuum (to 10⁻³Pa) to prevent oxidation and improve material purity.65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Continuous operation design: spiral feeding + rotating furnace tube (0~7RPM), combined with the tilt angle to adjust the discharge speed, to achieve automated continuous production.65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Safety and structure: double-layer air-cooled furnace shell, multiple protection devices (overtemperature/leakage/vacuum protection), and sealing system to ensure atmosphere stability.65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
65eMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical Parameters
Technical Parameters
Product Model PT-TX1000-H219
Shell structure Double shell. Equipped with air cooling system
Furnace tube material 310S stainless steel pipe Customizable
Furnace tube length The outer diameter is 219 mm , the total length is about 2150 mm (subject to the actual length), the lifting plate is welded inside , the right end sealing flange is reserved for a spare port and a pressure relief valve , and the spare port is sealed with a blind plate
Heating zone length 500mm+500mm Customizable
Continuous working temperature 600 ℃
Maximum temperature 1000 ℃
Temperature control method Adopt PID controller, intelligent 30-segment programmable control
Ultra-high temperature alarm With ultra-high temperature alarm
Furnace material Alumina Polycrystalline Fiber
Furnace door Electric opening
Heating rate 0--20℃/min adjustable, 10℃/min recommended
Heating elements High quality silicon carbon rod
Temperature measuring element N-type thermocouple
Electronic control system Independent distribution cabinet
Sealed structure Dynamic seal
Rotating structure Chain
Tilt angle 0-5 degrees (adjustable)
Inlet and outlet system The left end of the furnace tube is reserved for air inlet, the right end is for pyrolysis gas outlet, the pyrolysis gas end is reserved for water vapor, argon gas interface, sampling port, and the rear end is connected to a water cooling flange
Corundum tube High purity corundum tube 60*500 Customizable
Corundum tube seal Water-cooled flange, cooling water circulation, to protect the sealing rubber ring
Water Cooler A separate water cooler provides cooling water for the water-cooled flange
Feed silo 304 stainless steel material 35L sealed structure Customizable
Receiving silo 304 stainless steel material 35L sealed structure Customizable
Support system Set up a bracket to support the rear four-port reflectometer and corundum tube
