model:PT-TX800-H150CK3
PT-TX800-H150CK3 Biomass Pyrolysis Laboratory Equipment
Application: The continuous biomass pyrolysis laboratory apparatus is designed to test the pyrolysis process of different kinds of biomass raw materials. It consists of Control Cabinet, Raw Material Feeder, Pyrolysis Reactor, Syn-gas Burning Device, Gas Sampling Interface and Gas Pipes, etc.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacEquipment Introduction:2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The PT-TX800-H150CK3 continuous biomass pyrolysis laboratory apparatus is designed to test the pyrolysis process of different kinds of biomass raw materials. It consists of Control Cabinet, Raw Material Feeder, Pyrolysis Reactor, Syn-gas Burning Device, Gas Sampling Interface and Gas Pipes, etc.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
PT-TX800-H150CK3 Biomass Pyrolysis Laboratory Apparatus
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Due to the electric heating system and PID temperature controlling & monitoring system, the apparatus can process the biomass raw materials at any set temperature exactly. The sensitive sensors provide precision experimental data of pyrolysis temperature, gas flow volume and so on. Different stages of biomass pyrolysis experiments can be conducted by this apparatus, such as torrefaction, carbonization, etc.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The compact design of the equipment enables the operator to conduct biomass pyrolysis experiments in a limited space. The simple and accurate operation of this equipment help the clients, who will set up commercial biomass pyrolysis projects, to collect the relevant experimental data for further analysis and research, then improve commercial operation.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFeatures:2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac1.The equipment is adopted with PID intelligent temperature controlling & monitoring system, which makes sure the precise and best reacting temperature;2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.The specialized control cabinet enables simple operation & adjustment;2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Accessible Gas Sampling: It is convenient to collect the syngas through the special designed syngas sampler at Sampling Interfaces.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Including syngas burners, and flame temperature detector.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.Modular design contributes to minimizing clients’ installation and commissioning work. Before delivery, all of the mechanical and electrical components will be mounted on specially designed operation platform.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5.Optional Syngas Online Monitoring and Analysis Module enables the researcher to gain complete data of synthetic gas, such as composition, proportion, thermal value, etc., and to graph dynamic data curves. Detectable gas range: CO, CH4, H2, CO2, N2, C2H6,2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6.Biomass pyrolysis system can process materials: wood pellets, coconut shells, fruit shells, rice husk powder, bamboo charcoal, wood pellet charcoal, cocoa shells and other biomass materials. 2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac1. Reacting Raw Materials:small particle biomass raw materials, moisture content ≤15%, particle size less than 10mm.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Pyrolysis Temperature: 200-800 ℃, or customized upon client’s requirement.2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. Raw Material Processing Amount:≥ 5 Kg/H2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. Size of Reactor: Φ150×2264 mm (Can be customized according to customer needs)2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Heat Source: uniquely designed electric heating device2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

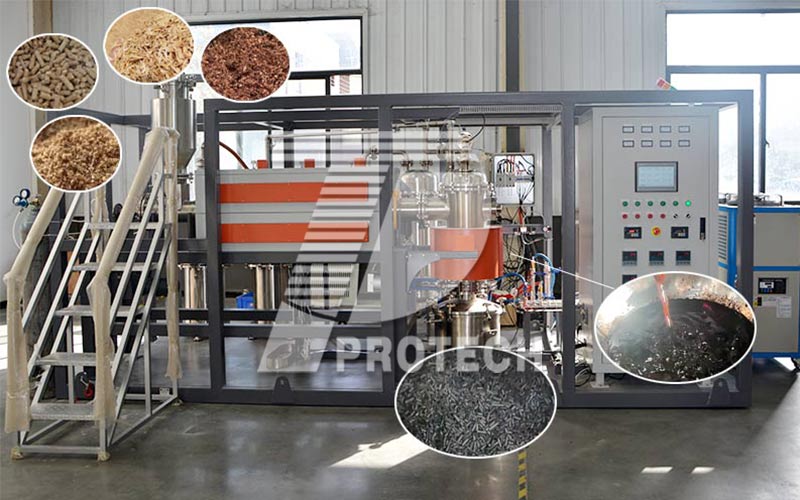

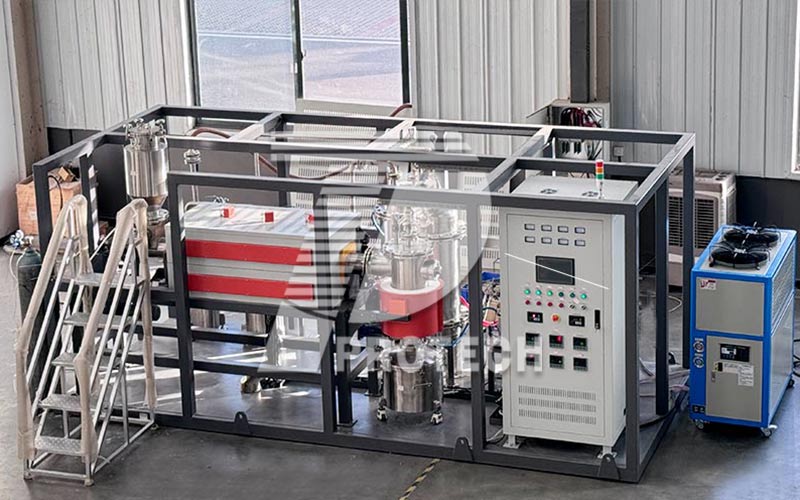

Photos of Biomass Pyrolysis Laboratory Equipment in our factory:
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFeed: Biomass pellets2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The produced biomass carbonized particles2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Tar produced2yOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
