model:PT-TX1600-L60LB2

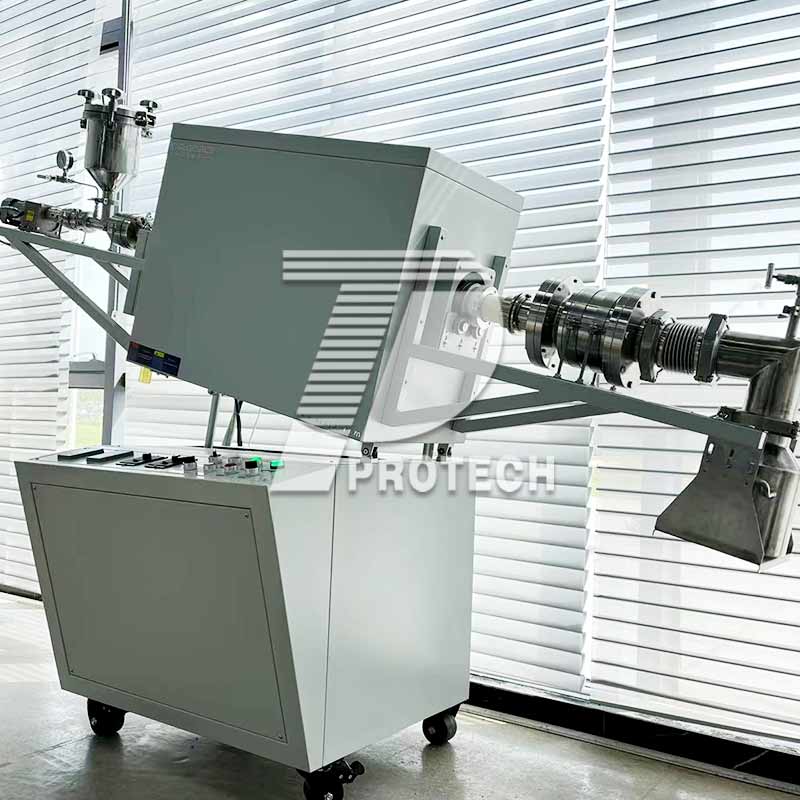

Double temperature zone high-temperature rotary furnace

Application

Detailed Parameters Of The Product

Product description:
Double temperature zone high-temperature rotary furnace is heated by silicon-molybdenum rods with dual temperature zones. Each temperature zone can be controlled by a 30-segment program temperature control system, phase-shift trigger, silicon controlled rectifier control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and the double-layer furnace shell The room is equipped with an air-cooling system, which can quickly heat up; it is equipped with a sealed automatic feeder and a sealed receiving device. The furnace body can be tilted, and the furnace tube can be rotated 360 degrees.Belongs to a type of inclined rotary tube furnace.
Applications:
This equipment is specially used to coat the conductive layer on the cathode material of lithium-ion batteries, and can also prepare si/c anode materials by CVD.
It can realize the coating and modification of powder materials by continuous CVD method.
Features:
The furnace tube can be placed and the furnace body can be tilted.
It can automatically quantitatively load materials into the furnace tube under the atmosphere protection environment
It can collect materials by itself under the atmosphere protection environment
Accurate temperature control, fast heating speed and high work efficiency.
It can be vacuumed and shielded gas can also be passed.
It can be used as special equipment or general equipment.

Technical parameters:

Product name	Double temperature zone high-temperature rotary furnace
Model	PT-TX1600-L60LB2
shell structure	Double-layer shell. Equipped with air cooling system
Furnace tube material	Corundum tube (rounded at both ends)
Temperature zone length	Dual temperature zones, the total length of the temperature zone is 400mm
Working temperature	The temperature is not higher than 1500°C under continuous operation; the maximum temperature: 1600°C
Temperature control method	Using PID controller, intelligent 30-segment programmable control
Super high temperature alarm	Super high temperature alarm
Marriage Reminder	There is a reminder
chamber material	High Purity Alumina Refractory Fiber
Heating rate	0--10℃/min(1000°C or higher recommended ≤5°C/min)
Heating element	High quality silicon molybdenum rod
Temperature measuring element	B type thermocouple
Operating Voltage	220V 50HZ
tiltable angle	0-10 degrees adjustable, the angle can be displayed through the digital display inclinometer
Furnace tube speed	Up to 10 revolutions per minute (adjustable speed and direction of rotation)
In and out	Sealed inlet and outlet, adjustable feeding speed
Mobile box	The lower box of the equipment is a movable box, which can also be used as a material rack, and the furnace is easy to move as a whole.
other sizes available
Heating zone size（mm）		Heating zone size（mm）
Φ50×300		Φ50×400
Φ60×300		Φ60×400
Φ80×300		Φ80×400
