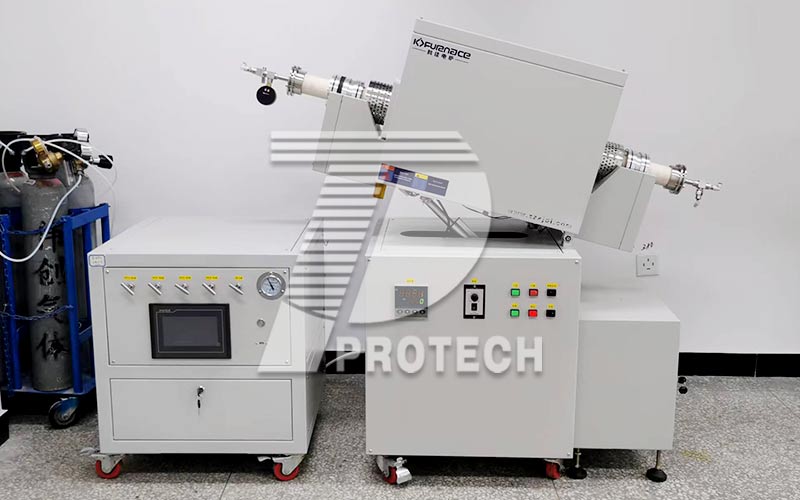

Inclined Rotary Vacuum Tube Furnace
model:PT-R1600-L60Z4

Inclined Rotary Vacuum Tube Furnace

    Application:  The rotary tube furnace is heated by silicon-molybdenum rods, 30-segment program temperature control system, phase-shift trigger, thyristor control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and there is an air cooling system between the double-layer furnace shells. Can heat up quickly.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Product Description:
Inclined rotary vacuum tube furnace is heated by silicon-molybdenum rods, 30-segment program temperature control system, phase-shift trigger, thyristor control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and there is an air cooling system between the double-layer furnace shells. Can heat up quickly.Belonging to a type of inclined rotary tube furnace.

Scope of application:
This equipment is professionally used in laboratory calcining and drying of battery positive and negative electrode materials, non-strong acid-base powder materials, and granular materials. Users can choose to fire under vacuum or under atmosphere protection according to the materials to be fired.

Technical Parameters:
Product name Inclined Rotary Vacuum Tube Furnace
Model PT-R1600-L60Z4
Shell structure Double-layer shell. Equipped with air cooling system
Furnace tube size Outer diameter 60*Length about 1200mm - Subject to actual needs
Tube material Corundum tube
Temperature zone length The total length is 300mm
Working temperature The temperature is not higher than 1600°C under continuous operation; the maximum temperature: 1700°C
Temperature control method Using PID controller, intelligent 30-segment programmable control
Super high temperature alarm With super high temperature alarm
Marriage Reminder There is a reminder
Furnace chamber material High Purity Alumina Refractory Fiber
Heating rate 0--10℃/min (Recommend ≤5℃/min above 1400℃)
Heating element High quality silicon molybdenum rod
Temperature measuring element Type B thermocouple
Operating Voltage 220V     50HZ
tiltable angle 0-35 degrees (adjustable)
Furnace tube speed 0.1-13 rpm (adjustable speed, adjustable rotation direction)
sealing flange Stainless steel metal flange, with valves and related interfaces, easy to disassemble and assemble, can be vacuumed and filled with protective gas to slightly positive pressure (less than 0.02MPA)
Airway assembly 4-way touch screen mass flow meter, which can control the gas flow through the valve.
