model:PT-T1000R

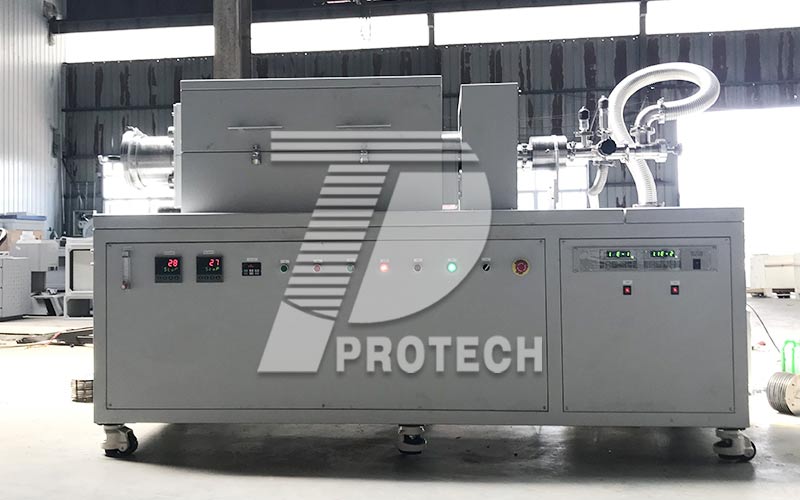

High vacuum rotating tilt tube furnace

Application

Detailed Parameters Of The Product

Introduction:
Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity.

Technical Parameter:

Model	PT-T1000R
Display	LED
Continuous working Temperature	≤1000℃
Heating Rate	Suggestion 0~10℃/min
Temperature Zone	2 zones: 400mm+400mm
Temperature Control Accuracy	±1℃
Tube Diameter	Ф200 mm
Tube Material	310S Stainless steel
Tube Length	1500mm
Heating Element	Resistance Wire With Mo
Tube Rotating Speed	0-15 RPM
Furnace Tilt Angle	0~10℃
Thermocouple	K Type
Max. Power	25 KW
Working Voltage	AC 380V three phases, 50 Hz
Temperature Control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Gas Inlet	1/4” gas inlet on left flange.
Flowmeter	One float flowmeter for Argon Gas Flow range will be according to customer’s requirement.
Warranty	One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)
