Introduction:

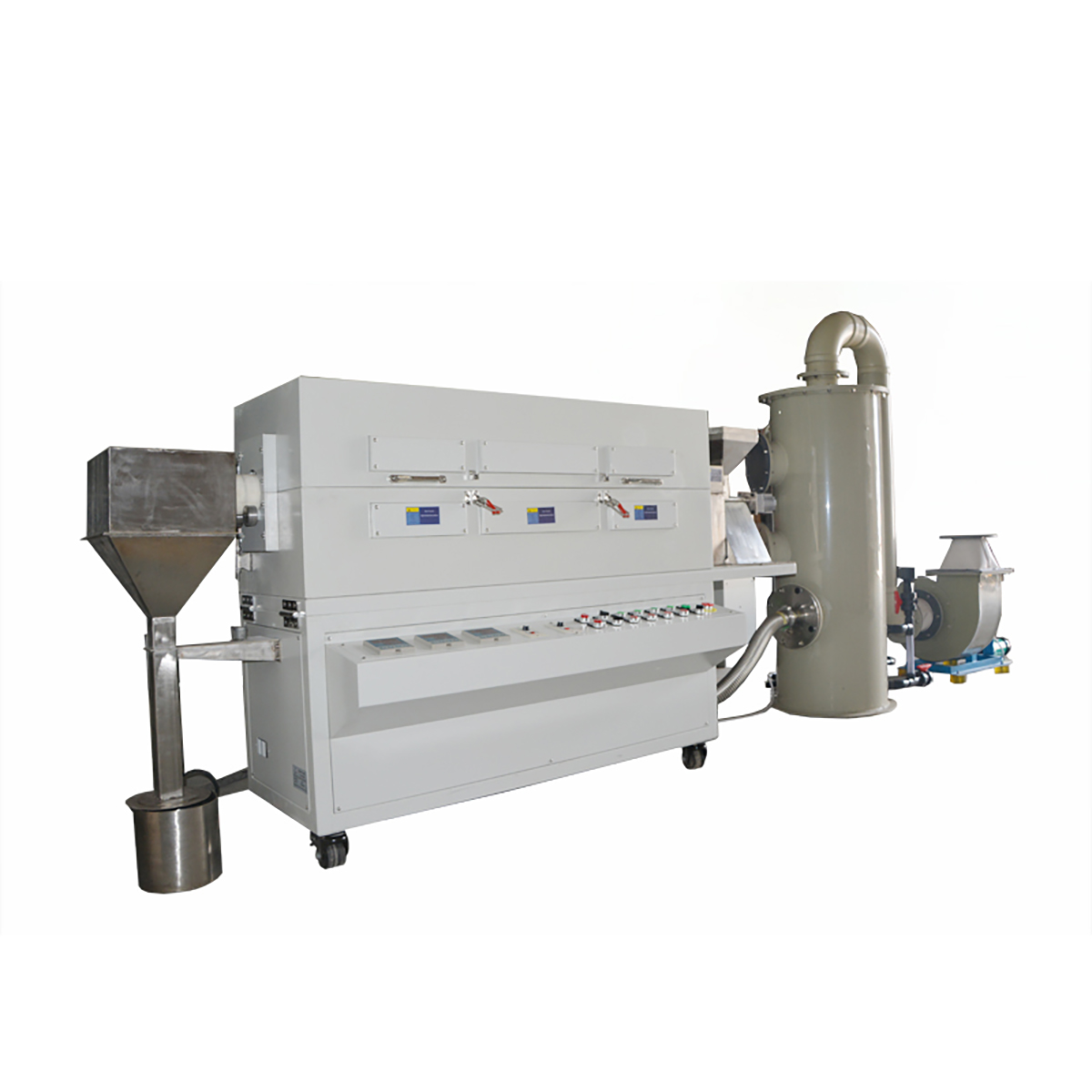

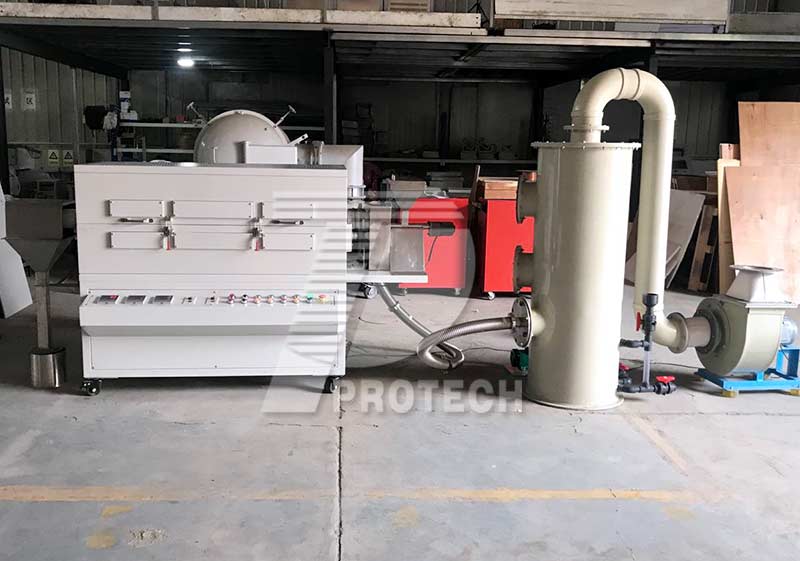

Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment
Technical Parameter:
|
Model |
KJ-T1400 |
|
Display |
LED |
|
Max. Temperature |
1400℃ Max for < 1 hours |
|
Continuous working Temperature |
≤1300℃ |
|
Heating Rate |
Suggestion 0~10℃/min |
|
Temperature Zone |
300+400+300 mm 3 hot zones |
|
Temperature Control Accuracy |
±1℃ |
|
Tube Diameter |
Ф110 mm OD |
|
Tube Material |
Mulite tube |
|
Tube sealing |
One side of tube is with feeder |
|
|
The other side is with outlet
|
|
Heating Element |
Sic heating elements |
|
Tube Rotating Speed |
0-10 RPM |
|
Furnace Tilt Angle |
0~5℃ |
|
Thermocouple |
S Type x 3 pcs |
|
Tube Function |
Rotating and tilt function.
|
|
Max. Power |
15 KW |
|
Working Voltage |
AC 380V 3 phases, 50Hz |
|
Temperature Control |
3 sets PID automatic control via SCR power control |
|
Heating curves |
30 steps programmable |
|
Chamber material |
Alumina Fiber |
|
Warranty |
One year limited warranty (Consumable parts such as heating elements and mulite tube are not covered by the warranty) |
