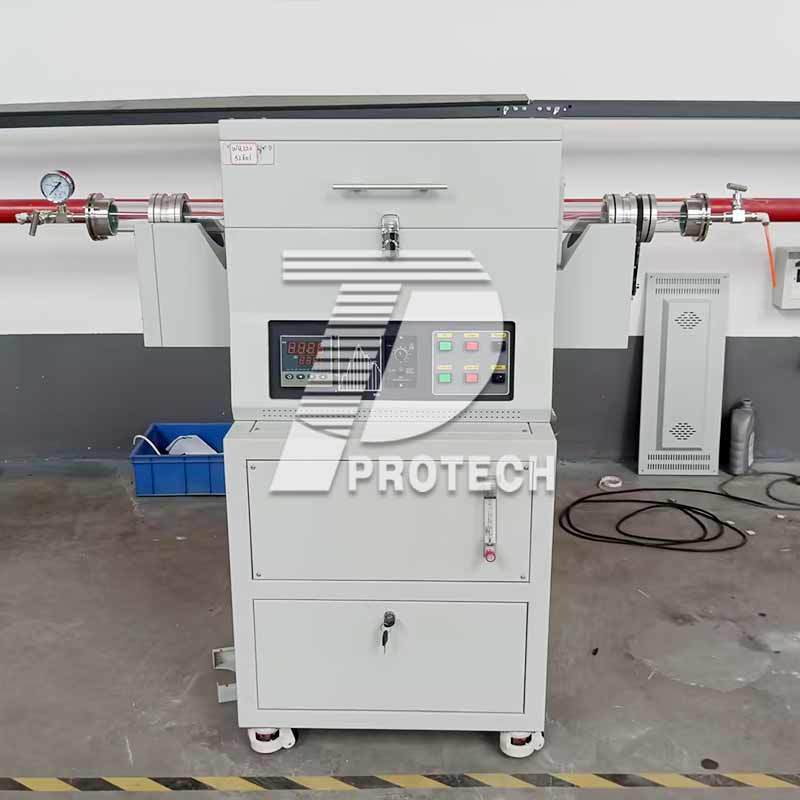

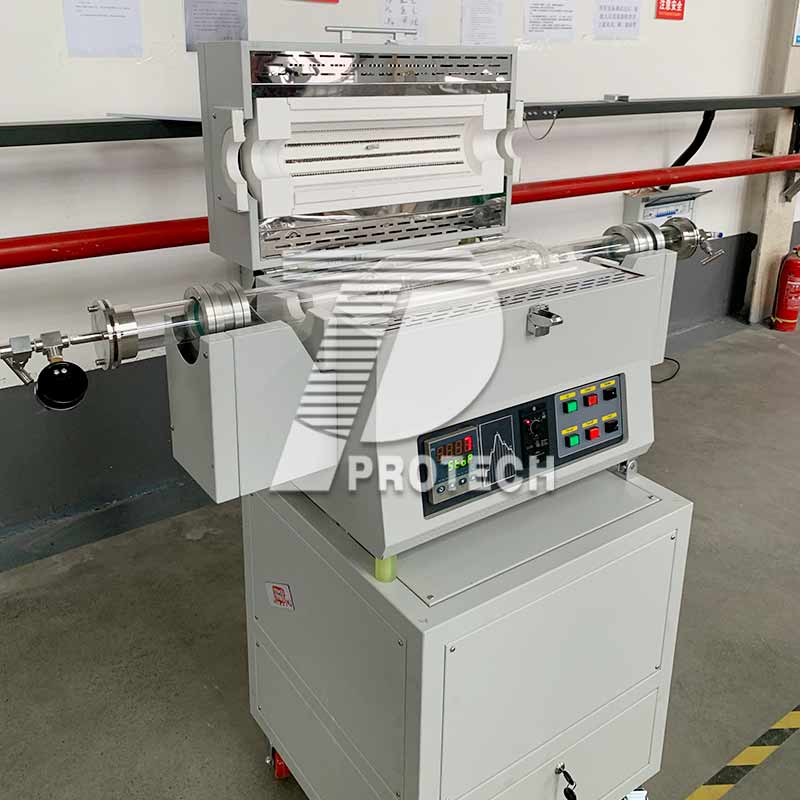

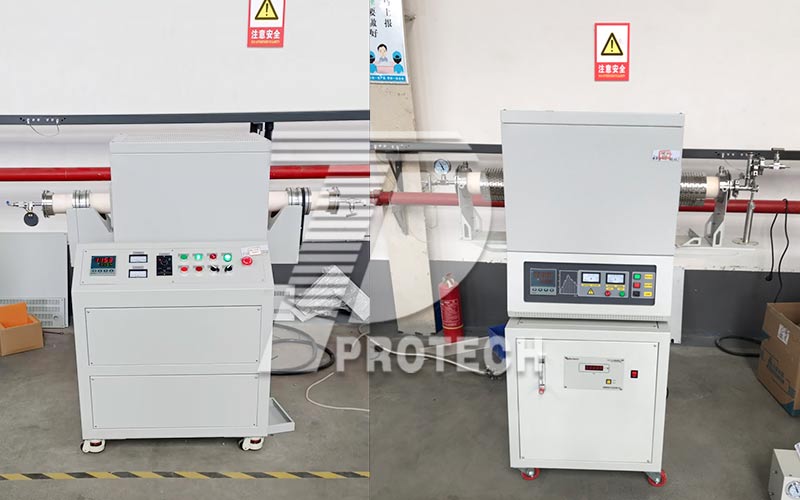

Description:
Inclined rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.
1.Features of Inclined rotary tube furnace :
(1). Rotary tube to keep uniform heating
(2). Variable diameter tube to keep uniform heating
(3). Programmable and PID automatic control
(4). Metal key or touch panel operating interface for your option
(5). Inputting protective gas or atmosphere is also possible
2.Technical parameters of Inclined rotary tube furnace:
Model | PT-1200TX |
Limiting temperature | 1200℃ |
Working temperature | ≤1150℃ |
Heating rate | Suggestion 0~20℃/min |
Temperature zone | Single |
Temperature accuracy | ±1℃ |
Tube size | Φ60×1200(mm) |
Heating element | electric wire with mo |
Thermal couple | K Type |
Temperature control | PID automatic control via SCR power control |
Heating curves | 30 steps programmable |
Angle of inclination | 0-15 degrees (Can be arbitrary adjustable) |
Furnace tube rotation speed | 0-20 r/min |
Rated power | 3KW |
Working voltage | 110-480V 50-60Hz |
Warranty | 12 month (exclusive wearing part) |
