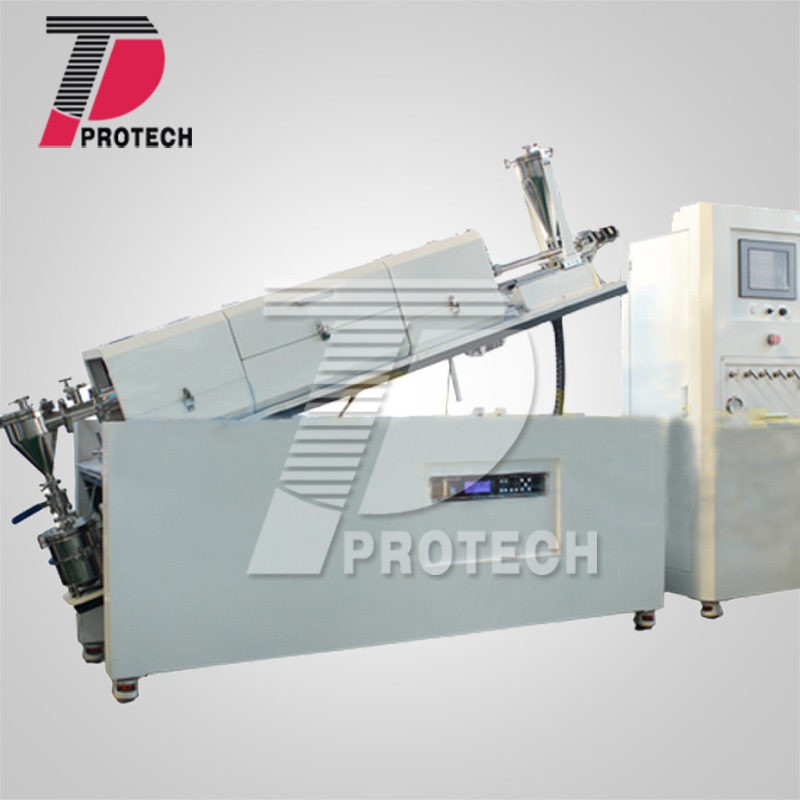

Constant feeding & discharging Plasma rotary CVD system
model:PT-1200C-RP-PECVD

Constant feeding & discharging Plasma rotary CVD system

    Application:  Application: Graphene growth, carbon nanotube development, silicon nitride film deposition, two-dimensional material growth, crystal material battery electrode field.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
 The device is a fully automated Plasma Enhanced CVD System (PECVD) with continuous temperature control and Plasma strength. Equipped with a vacuum system that can be used under low pressure conditions. The PECVD system enables the entire experimental chamber to be in the glow generation area. The light is uniform and equivalent, which solves the unstable operation of the traditional plasma. The tube of the device can rotate 360°, which helps the sintering of the powder to be more uniform, can be inclined at a large angle, and is convenient for feeding and discharging. The inclination angle is  Between 0-35°, all pipeline materials passing through  are made of non-metallic materials. For example, the inlet and outlet chambers are made of quartz, and the push rods are made of quartz and PTFE.

 BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Technical ParameterBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Heating system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Max. Temp:1200cBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Working temp.:≤ 1100cBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Tube Size:Ø60*420*2+Ø100*360mm*  CustomizableBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Furnace tube rotation rate:0~60r/minBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Furnace body inclination angle:0~35°BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Temp accuracy:±1℃BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Temp control:PID automatic control with 30 steps programmableBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Operation interface:10”LCD touch screen controlBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Heating zone length:200mm+200mm CustomizableBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Constant zone length:250mm CustomizableBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Plasma system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The system generates plasma by means of glow discharge. In the glow discharge plasma, the electron density is high, and the reaction characteristics of the non-equilibrium plasma are effectively utilized by the reaction gas discharge, which fundamentally changes the energy supply mode of the reaction system.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Feeding system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The speed is continuously adjustable. When the feeding is stopped and the furnace body is tilted to the maximum, the material will not leak . The feeding system is easy to disassemble, and the material can be manually fed after disassembly, and the equipment can operate normally.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Discharge system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The discharging system can automatically discharge when the furnace body is inclined and discharged.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Gas control system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The gas control system can control the mixing ratio of the two gases according to different flow rates, and can also be independently controlled. The mass flow meter is installed in a sealed movable cabinet, which is composed of super clean stainless steel tube and the precision double ferrule joint.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Low vacuum system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Equipped with a vacuum mechanical pump that can be vacuumed to allow the unit to react in a vacuum environment.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Separation system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

the system allows the separation of gas and material during the protection of the inflator or when vacuuming.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Filtering system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The system prevents material from entering the vacuum pump and ensures proper operation of the vacuum pump.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Furnace tube rotation system:BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Allows the  tube to rotate 360° at a constant speed. The rotation speed is continuously adjustable from 0 to 60 r/min for a long time.BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

 BvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

constant feeding & discharging Plasma rotary CVD systemBvVMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
