Technical Analysis of Radar Antenna and Waveguide Vacuum Brazing Process and Specialized Equipment

1. Industry Background: Technical Necessity and Engineering Value of Vacuum Brazing for Radar Components

1.1 Structural Characteristics and Welding Difficulties of Radar Antenna and Waveguide
Radar antennas and waveguide components feature complex cavity structures, high dimensional accuracy requirements and strict electromagnetic performance indicators, which put forward ultra-high standards for connection and forming processes.
As the core transmission and radiation components of radar systems, antennas and waveguides are mostly made of aviation-grade aluminum alloy, copper alloy and stainless steel. The components have multi-cavity closed structures, thin-wall features and dense assembly interfaces, requiring high flatness, low deformation rate and excellent air tightness after forming. Traditional fusion welding, argon arc welding and ordinary gas brazing processes are prone to problems such as weld porosity, oxidation deformation, internal slag inclusion and uneven weld seam. These defects will cause signal attenuation, electromagnetic leakage and structural strength attenuation, directly affecting the detection accuracy, stability and service life of the whole radar system.

1.2 Core Advantages of Vacuum Brazing Technology
Vacuum brazing realizes non-oxidative integral connection of precision radar components, with low deformation, high air tightness and stable electromagnetic performance, becoming the mainstream forming process for high-end radar waveguide components.
Different from traditional thermal welding processes, vacuum brazing is completed in a high-vacuum oxygen-free environment, which completely avoids surface oxidation, weld slag inclusion and thermal stress concentration. It adopts low-temperature melting filler metal for interfacial diffusion bonding, with small overall thermal damage to components and negligible structural deformation. The brazed joint has uniform texture, high bonding strength and excellent air tightness, which can meet the long-term stable operation requirements of radar antennas and waveguides in high-frequency, high-vibration and complex atmospheric environments. It solves the pain points of poor consistency, low qualification rate and unstable electromagnetic performance of traditional welding processes.

1.3 Industrial Application Orientation of Precision Vacuum Brazing
Vacuum brazing technology focuses on high-precision forming of radar waveguide transmission components, high-reliability connection of antenna array structures, and batch stable manufacturing of military and civil radar parts.
Vacuum brazing has irreplaceable application value in the field of radar component manufacturing. For waveguide components, it can realize seamless connection of multi-section waveguide pipelines, ensure smooth internal cavity, reduce signal transmission loss and avoid electromagnetic leakage. For antenna array structures, it ensures the overall flatness and assembly accuracy of the antenna array, guarantees consistent radiation performance of each unit. The technology is widely applicable to military phased array radars, civil weather radars, vehicle-mounted detection radars and aerospace communication waveguide equipment, supporting high-precision and high-reliability manufacturing of radar systems.

2. Technical Principle and Standard Process Flow of Radar Vacuum Brazing

2.1 Core Reaction Mechanism of Vacuum Brazing
Under high vacuum and precise constant temperature conditions, the brazing filler metal melts, diffuses and wets the base metal interface to realize micro-metallurgical bonding without damaging the precision structure of radar components.
Vacuum brazing relies on high-vacuum environment (10⁻³–10⁻⁵ Pa) to completely remove oxygen and moisture on the surface and inside of components, eliminating oxidation interference. According to the material characteristics of aluminum alloy, copper alloy and stainless steel radar parts, matched low-temperature brazing filler metal is selected. When the furnace temperature rises to the melting interval of the filler metal, the liquid filler metal fully wets the assembly gap under capillary action, diffuses into the base metal interface and forms a dense metallurgical combination after cooling and crystallization. The whole process has no splashing, no slag formation and no excessive thermal penetration, which protects the precision size and electromagnetic structural characteristics of radar antennas and waveguides to the greatest extent.

2.2 Standard Industrial Process of Waveguide and Antenna Brazing
The whole process includes pretreatment, precise assembly, vacuum furnace loading, staged temperature brazing, cooling and post-treatment, realizing high-precision and zero-defect batch brazing.
The standardized vacuum brazing process for radar core components is divided into five core links. First, precision pretreatment: degreasing, decontamination and oxide layer removal on the surface of antennas and waveguides to ensure clean assembly interface. Second, precise tooling assembly: positioning and clamping through special precision tooling to control assembly gap within the process allowable range. Third, vacuum furnace loading and air exhausting: components are loaded into special vacuum brazing equipment, and the furnace cavity is pumped to high vacuum to eliminate gas interference. Fourth, staged temperature brazing: segmented heating, constant-temperature brazing and heat preservation according to material and structural characteristics to ensure full filler metal diffusion. Fifth, gradient cooling and post-treatment: uniform cooling to control deformation, followed by air tightness detection, size calibration and flaw detection to complete finished product manufacturing.

2.3 Core Process Control Points of Precision Brazing
Vacuum degree stability, staged temperature control, assembly gap accuracy and constant-temperature heat preservation time are the four core guarantees for high-quality brazing of radar components.
In the industrial brazing production of radar antennas and waveguides, high vacuum must be maintained throughout the process to prevent secondary oxidation of the weld interface. Adopt multi-stage gradient heating: low-temperature heating for degassing and drying, medium-temperature preheating for stress relief, high-temperature constant-temperature brazing for interfacial bonding. Strictly control the assembly gap of components, excessive gap will cause insufficient filler metal filling, and too small gap will lead to poor diffusion. Match accurate heat preservation time according to component thickness and structure to avoid incomplete brazing caused by insufficient heat preservation or component deformation caused by overheating.

3. Structural Performance and Electromagnetic Value of Vacuum Brazed Joints

3.1 Mechanical Structural Performance of Brazed Joints
Vacuum brazed joints have uniform microstructure, high bonding strength and strong fatigue resistance, meeting the long-term vibration and impact resistance requirements of radar equipment.
The metallurgical bonding layer formed by vacuum brazing is dense and uniform without microscopic defects such as pores and cracks. The joint tensile strength, shear strength and impact toughness are consistent and stable, with no weak areas in the whole component. After brazing, the overall structural rigidity of radar antenna and waveguide components is significantly improved, which can resist long-term mechanical vibration and environmental temperature alternation. The overall deformation of precision components is controlled within 0.02mm/m, which fully meets the high-precision dimensional tolerance standards of aerospace and military radar components.

3.2 Electromagnetic Transmission Performance Advantages
Smooth inner cavity and seamless brazed interface eliminate electromagnetic leakage and signal attenuation, ensuring high-efficiency and stable transmission of radar microwave signals.
Traditional welding processes are easy to form weld protrusions, pits and internal slag inclusion, resulting in uneven waveguide inner wall, increased microwave signal reflection loss and serious signal attenuation. Vacuum brazing realizes seamless transition at the assembly interface, smooth and flat inner cavity of waveguide components, extremely low signal transmission loss and no electromagnetic leakage. The consistent structural impedance of the antenna array ensures uniform radiation performance of each antenna unit, effectively improving radar detection accuracy, anti-interference ability and signal stability.

3.3 Environmental Adaptability and Service Life Value
The non-oxidative dense brazed layer has excellent corrosion resistance and high and low temperature resistance, realizing long-life stable operation of radar components in harsh environments.
The vacuum brazed joint has no oxide inclusion and dense structure, with excellent salt spray resistance, humidity and heat resistance and high and low temperature cycle resistance. It can maintain stable structural performance and electromagnetic performance in extreme environments such as high altitude, coastal humidity and low temperature freezing. Compared with traditional welding components, vacuum brazed radar parts have a service life increased by more than 30%, reducing equipment maintenance frequency and replacement cost, and improving the long-term operational reliability of the whole radar system.

4. Brazing Process Parameter Coupling and Precision Regulation Technology

4.1 Brazing Adaptability of Different Radar Component Materials
Aluminum alloy waveguide is suitable for low-temperature vacuum brazing, copper alloy antenna is suitable for medium-temperature precise brazing, and stainless steel structural parts are suitable for high-temperature enhanced brazing.
Aviation aluminum alloy radar waveguide has low thermal tolerance, which is suitable for low-temperature vacuum brazing process to avoid matrix softening and structural deformation. High-purity copper alloy antenna array has high thermal conductivity, requiring medium-temperature rapid heating and constant-temperature brazing to ensure uniform filler metal diffusion. Stainless steel reinforced structural parts need high-temperature brazing to improve joint strength and high-temperature stability. For multi-material composite radar components, segmented temperature rise and adaptive parameter matching are required to balance brazing quality and structural stability.

4.2 Directional Precision Brazing Parameter Matching Scheme
Through precise coupling of vacuum degree, heating rate, brazing temperature and heat preservation time, realize full-scene high-quality brazing of different radar components.
For aluminum alloy waveguide components: control vacuum degree at 5×10⁻⁴–1×10⁻³ Pa, brazing temperature 580–620℃, low-speed uniform heating, heat preservation 15–25min to ensure full filling of small gaps. For copper alloy antenna components: vacuum degree stably above 3×10⁻⁴ Pa, brazing temperature 650–700℃, medium-speed staged heating, heat preservation 10–20min to avoid copper oxidation and grain growth. For stainless steel structural components: high vacuum above 1×10⁻⁴ Pa, brazing temperature 780–850℃, staged heat preservation to improve joint fatigue resistance and structural rigidity.

4.3 Core Optimization Technology for Brazing Quality Balance
Multi-stage gradient temperature rise and vacuum dynamic stabilization technology solve the problems of component deformation, insufficient brazing and poor consistency in traditional single-temperature brazing.
The traditional single-temperature brazing process is prone to defects such as incomplete degassing of components, uneven filler metal diffusion and local overheating deformation. The optimized multi-stage gradient temperature rise process realizes low-temperature degassing, medium-temperature pre-stress relief and high-temperature brazing forming. The dynamic vacuum stabilization technology maintains constant vacuum degree in the whole furnace, avoids micro-oxidation of weld interface, ensures uniform brazing quality of each batch of components, and realizes dual improvement of dimensional accuracy and electromagnetic performance of radar antennas and waveguides.

5. Classification and Technical Adaptability of Special Vacuum Brazing Equipment

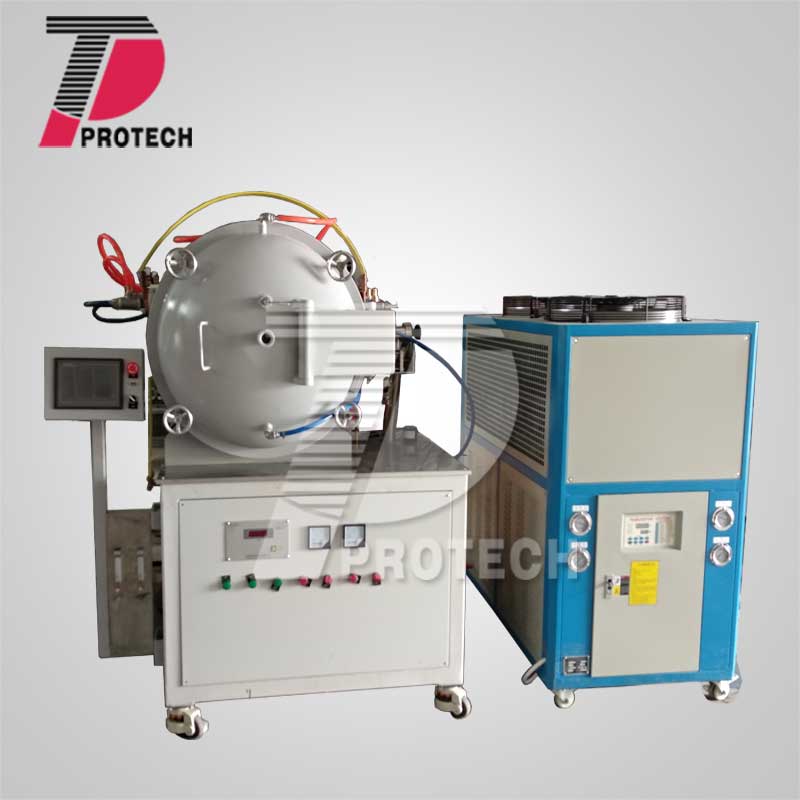

5.1 Single-Chamber Vacuum Brazing Furnace: Suitable for Small-Batch High-Precision Antenna Components
Single-chamber equipment has stable vacuum environment and precise temperature control, suitable for small-batch customized processing of high-precision radar antenna parts.
The single-chamber vacuum brazing furnace has simple and reliable structure, excellent vacuum holding performance and temperature control accuracy within ±3℃. It is suitable for small-batch and high-precision brazing of radar antenna array units, small-size precision waveguides and key structural parts. The equipment has low temperature fluctuation, stable brazing atmosphere and high finished product qualification rate, which can meet the precision manufacturing requirements of military customized radar components, and is suitable for laboratory research and development and small-batch trial production scenarios.

5.2 Double-Chamber Continuous Vacuum Brazing Furnace: Mainstream Equipment for Mass Production of Waveguide Components
Double-chamber furnace realizes separated feeding and heating, with high production efficiency and stable batch consistency, suitable for large-scale standardized production of radar waveguides.
The double-chamber vacuum brazing furnace adopts separated structure of transition chamber and brazing chamber, which realizes non-stop vacuum feeding and continuous brazing production. It avoids vacuum fluctuation caused by frequent furnace opening, ensures stable brazing environment of each batch of components, and greatly improves production efficiency. The equipment has strong adaptability to batch waveguide components, stable product size and performance consistency, and is the core mainstream equipment for large-scale industrial manufacturing of civil and military radar waveguide components.

5.3 Multi-Zone Temperature-Controlled Vacuum Brazing Furnace: High-End Equipment for Complex Structural Radar Components
Independent multi-zone temperature control and uniform temperature field, suitable for high-precision brazing of large-size and complex cavity radar integrated components.
The multi-zone temperature-controlled vacuum brazing furnace is equipped with independent temperature adjustment modules, which can realize regional precise temperature control and eliminate furnace temperature deviation. The internal temperature field is uniform and stable, which can solve the problems of inconsistent brazing quality and unbalanced deformation of large-size radar antennas and complex multi-cavity waveguide components. It is widely used in high-end fields such as phased array radar integral antenna panels, large-scale waveguide assembly components and aerospace precision radar equipment manufacturing.

6. Industrial Pain Points, Process Optimization and Engineering Benefit Analysis

6.1 Common Technical Bottlenecks in Precision Brazing Production
Unstable vacuum environment, unreasonable temperature curve, inaccurate gap matching and imperfect post-processing detection restrict the improvement of brazing precision and yield.
At present, the common problems in industrial brazing of radar components are as follows: vacuum fluctuation in the furnace causes micro-oxidation of welds; single temperature curve leads to insufficient local brazing or matrix overheating deformation; unreasonable assembly gap leads to insufficient filler metal penetration or excessive residual solder; imperfect flaw detection and air tightness detection process lead to hidden quality dangers of electromagnetic leakage. These bottlenecks affect the dimensional accuracy, electromagnetic performance consistency and batch qualification rate of radar components.

6.2 Comprehensive Process Optimization and Upgrading Scheme
Precision pretreatment system + multi-stage intelligent temperature control + dynamic vacuum stabilization + full flaw detection screening realize zero-defect precision brazing.
A complete set of optimization system is established for production pain points: build a professional ultrasonic degreasing and oxide removal pretreatment line to ensure zero impurity on the assembly interface; adopt intelligent multi-stage temperature curve matching for different materials and structures; equip with real-time vacuum dynamic adjustment system to maintain constant high vacuum in the whole process; configure full-scale air tightness detection, X-ray flaw detection and microwave performance testing links to screen defective products in full dimension, comprehensively improving brazing precision and batch stability.

6.3 Engineering and Economic Dual Benefits
Vacuum brazing technology improves the precision, reliability and consistency of radar components, reducing subsequent maintenance costs and equipment failure risks, with prominent engineering application value.
In terms of engineering benefits, vacuum brazing solves the problems of deformation, electromagnetic leakage and unstable performance of radar components, greatly improving the overall precision and operational reliability of radar equipment. In terms of economic benefits, batch standardized brazing production reduces manual correction and rework costs, improves product qualification rate and production efficiency, and reduces equipment maintenance and replacement frequency. The technology supports large-scale standardized manufacturing of radar equipment, and has strong popularization and application value in military industry, aerospace, civil radar and communication fields.

7. Technology Iteration and Industry Development Trend
Intelligent precise brazing and integrated forming technology have become the core development direction of high-end radar component manufacturing.
With the continuous upgrading of radar equipment towards high precision, miniaturization and integration, the traditional single-process brazing mode is gradually eliminated. The vacuum brazing industry is iterating towards intelligent parameter adaptive matching, integrated tooling positioning, one-time integral brazing forming and full-process digital monitoring. Equipment temperature control accuracy, vacuum stabilization level and intelligent manufacturing capability are continuously improved to meet the manufacturing requirements of new-generation phased array radars and precision communication components.
Digital twin brazing and ultra-precision forming technology will further release the high-end manufacturing value of radar core components.
In the future, the industry will build a digital twin vacuum brazing system to realize real-time monitoring and predictive adjustment of furnace temperature, vacuum degree and brazing state. Through the deep integration of intelligent equipment, precise process and digital detection, the dimensional precision, electromagnetic performance stability and batch consistency of radar antennas and waveguides will be comprehensively improved, helping the high-end upgrading of aerospace precision manufacturing and radar communication equipment industry.
