Automobile Radiator & Intercooler Brazing: Vacuum Brazing Furnace Mass Production Process Sharing

1. Industry Background: Process Upgrading of Automotive Heat Exchanger Manufacturing

1.1 Application Value of Automobile Radiator and Intercooler
Automotive radiators and intercoolers are core heat exchange components for vehicle thermal management, whose brazing quality directly determines engine heat dissipation efficiency and vehicle operation stability.

Automotive radiators and turbo intercoolers are typical aluminum plate-fin heat exchangers, widely used in fuel vehicles, new energy commercial vehicles and passenger vehicles. The radiator undertakes engine circulating water cooling to control operating temperature; the intercooler cools turbocharged intake air, improves air density and increases engine power. Both components work under long-term alternating load of high temperature, high pressure and thermal cycling. The airtightness, bonding strength and heat conduction uniformity of brazed joints are the key indicators to ensure no liquid leakage, no air leakage and stable heat dissipation of the whole vehicle heat management system.

1.2 Defects of Traditional Heat Exchanger Brazing Processes
Traditional flux atmosphere brazing is prone to residual corrosion, pore defects and uneven welding, resulting in short service life and high failure rate of automotive heat exchangers.
Most traditional automotive heat exchangers adopt continuous atmosphere flux brazing. Residual corrosive flux remains in the internal micro-channels after welding, which will slowly corrode the aluminum matrix and brazed joints during long-term vehicle operation, causing micro-leakage and component failure. In addition, ordinary atmosphere furnaces have unstable temperature field and poor oxide removal effect, leading to insufficient filler metal wetting, excessive weld pores and uneven batch quality. It is difficult to meet the higher durability and reliability standards of high-end vehicle heat exchangers.

1.3 Mass Production Advantages of Vacuum Brazing Process
Flux-free vacuum brazing realizes clean, high-strength and corrosion-free integral connection, becoming the mainstream mass production process for high-quality automotive heat exchangers.

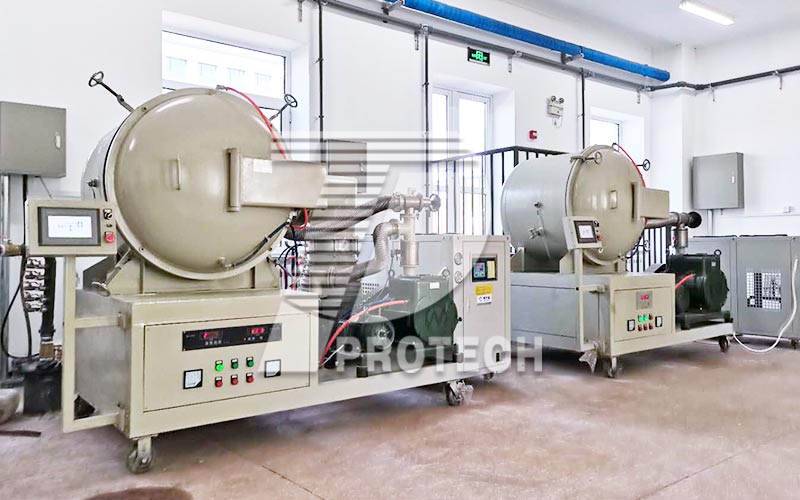

Vacuum brazing furnace adopts high-vacuum oxygen-free environment for flux-free brazing, which completely avoids flux residue corrosion. It can uniformly remove aluminum surface oxide films through precise segmented temperature control, realizing full wetting and dense bonding of brazing filler metal on plate-fin joints. The welded product has smooth welds, no internal residue, high structural strength and excellent thermal cycling resistance. It perfectly adapts to batch mass production of automotive radiators and intercoolers, and solves the pain points of short service life and unstable quality of traditional brazing processes.

2. Core Technical Difficulties of Automobile Heat Exchanger Brazing

2.1 Aluminum Oxide Film Causes Incomplete Joint Bonding
Dense inert oxide film on aluminum surface hinders filler metal diffusion, easily causing virtual welding and microscopic leakage defects of plate-fin joints.
Automotive radiators and intercoolers are all made of thin-walled aluminum alloy plate-fin structures. A dense and stable alumina passivation film is easily formed on the surface during stamping and placement. Traditional single-temperature heating cannot completely decompose the oxide layer. The residual oxide film isolates the combination of brazing filler metal and aluminum matrix, resulting in discontinuous weld bonding, tiny pores and unfilled gaps. Under long-term vehicle vibration and pressure impact, microscopic defects expand rapidly, causing coolant leakage and air leakage failure of heat exchangers.

2.2 Thin-Walled Plate-Fin Structure Is Prone to Thermal Deformation
Multi-layer thin-fin stacked structure has low rigidity and high temperature sensitivity, which is easy to collapse and deform during high-temperature brazing.
Automotive heat exchangers adopt multi-layer stacked composite structure with dense fins, thin wall thickness and complex internal flow channels. The overall structural rigidity is weak. Ordinary furnace temperature fluctuation and local overheating will cause asynchronous thermal expansion of fins and plates, resulting in fin collapse, channel blockage, overall warping and flatness deviation. Deformed heat exchangers have reduced heat exchange efficiency and unsmooth internal circulation, which seriously affects vehicle power performance and heat dissipation stability.

2.3 Strict Batch Consistency and Durability Requirements
Vehicle-grade heat exchangers require zero leakage and long-cycle corrosion resistance, and traditional processes are difficult to achieve stable batch qualification rate.
As safety-related components of the whole vehicle, radiators and intercoolers have extremely high requirements for brazing consistency, internal cleanliness and anti-fatigue performance. Flux residue and weld pores of traditional processes will cause delayed corrosion and local failure after long-term service. Ordinary equipment has poor temperature uniformity and unstable atmosphere environment, leading to large batch quality differences, which cannot meet the standardized mass production requirements of automobile OEMs.

3. Core Advantages of Vacuum Brazing Furnace for Heat Exchanger Mass Production

3.1 Flux-Free Vacuum Environment Achieves Clean Welding
High-purity vacuum environment completely removes aluminum oxide films without flux, realizing corrosion-free and high-cleanliness brazing connection.
The vacuum brazing furnace maintains an ultra-high vacuum environment better than 5×10⁻³ Pa during operation. Through segmented high-temperature treatment, it efficiently decomposes and removes surface oxide films of aluminum heat exchangers without relying on corrosive flux. The internal flow channel and weld joints have no residual impurities, completely eliminating hidden dangers of delayed corrosion and leakage. The flux-free brazing process significantly improves the long-term service life and corrosion resistance of automotive heat exchangers.

3.2 Ultra-Uniform Temperature Field Controls Structural Deformation
Full-area synchronous heating ensures consistent temperature of plate-fin structures, effectively avoiding fin collapse and overall warping deformation.
The vacuum furnace adopts multi-zone balanced radiation heating design, with extremely small temperature deviation in the effective heating zone. It realizes synchronous heating and uniform thermal expansion of multi-layer fins and thin plates of radiators and intercoolers, avoids local overheating stress concentration, and effectively controls micro-deformation of thin-walled structures. The overall flatness and flow channel dimensional accuracy of mass-produced products are stable, ensuring consistent heat exchange performance of each heat exchanger.

3.3 Segmented Gradient Process Improves Weld Compactness
Customized temperature rise, constant temperature brazing and gradient cooling curve ensures full filler metal diffusion and high-density weld forming.
Aiming at the structural characteristics of automotive aluminum heat exchangers, the vacuum brazing process adopts standardized segmented temperature control: slow preheating degassing removes internal moisture and residual gas; medium-temperature stable transition eliminates structural stress; high-temperature constant temperature brazing (595~615℃) ensures full melting and diffusion of brazing filler metal; gradient slow cooling releases thermal stress step by step. The welds are dense and pore-free, with high bonding strength and excellent pressure resistance.

3.4 Stable Batch Process Improves Mass Production Yield
Closed-loop vacuum atmosphere and temperature control system ensures consistent quality of each batch of products, meeting OEM mass delivery standards.
The vacuum brazing furnace is equipped with a full-process parameter monitoring system, which stably controls core indicators such as vacuum degree, temperature uniformity and heating rate. The standardized and solidified process parameters eliminate human intervention errors, realizing highly consistent brazing quality for large-batch radiators and intercoolers. The product qualification rate and batch stability are far higher than traditional atmosphere brazing processes, adapting to the high-efficiency and high-quality production rhythm of the automotive industry.

4. Standardized Mass Production Process of Automotive Heat Exchanger Vacuum Brazing

4.1 Pre-Production Ultra-Clean Pretreatment Process
Strict degreasing, decontamination and drying treatment eliminate initial defects and lay a foundation for high-quality brazing.
Before furnace loading, stamped fins, plates and brazing materials must undergo ultrasonic degreasing and pure water cleaning to completely remove surface oil stains, dust and metal debris. After high-temperature drying, no residual moisture is ensured to avoid gasification and pore generation during brazing. The assembled heat exchangers are precisely positioned and clamped to control the assembly gap within the process standard range, avoiding virtual welding and missing welding caused by excessive gaps.

4.2 Vacuum and Atmosphere Precision Control Specifications
Multi-stage vacuum pumping and inert gas purification maintain ultra-low oxygen and clean environment throughout the brazing process.
Before heating, the furnace is pumped to high vacuum state, and multiple cycles of gas replacement are carried out to remove residual air and moisture. The whole process maintains stable vacuum degree below 5×10⁻³ Pa and ultra-low oxygen environment. Real-time dynamic monitoring of vacuum fluctuation ensures no air leakage and no oxidation during production, stably maintaining the oxide removal effect and brazing interface activity of heat exchanger workpieces.

4.3 Exclusive Brazing Temperature Curve Matching
Adopt aluminum heat exchanger segmented temperature control process to balance brazing quality and structural accuracy.
Implement exclusive multi-stage temperature curve for automotive aluminum heat exchangers: slow heating below 300℃ to avoid rapid temperature rise deformation; stable heating in medium temperature section to fully remove internal gas; precise constant temperature at 595~615℃ for 5~15 minutes to ensure sufficient filler metal wetting and diffusion; staged gradient cooling to uniformly release residual stress. Effectively avoid fin collapse, weld pores and structural warping defects.

4.4 Post-Brazing Cooling and Full Inspection Standards
Slow cooling shaping + full batch tightness testing ensures zero leakage delivery of vehicle-grade heat exchangers.
After brazing and heat preservation, the workpieces are cooled slowly with the furnace to avoid rapid cooling stress and micro-crack generation. After cooling to room temperature, all products undergo air tightness testing and water pressure leakage detection to screen out micro-defective products. Establish batch process parameter files and quality inspection records to realize full-process traceability, meeting the whole vehicle factory quality audit standards.

4.5 Daily Equipment Maintenance and Process Stability Management
Regular furnace cleaning and vacuum system maintenance avoid volatile pollution and ensure long-term stable batch production.
Regularly clean furnace cavity volatile attachments and aluminum oxide deposits to prevent secondary pollution of workpieces. Inspect furnace body sealing and vacuum pump unit performance regularly to ensure stable vacuum degree and temperature field uniformity. Standardize daily parameter recording and process verification mechanisms to eliminate batch quality fluctuations caused by equipment aging and parameter drift.

5. Industry Application and Development Prospect
Vacuum flux-free brazing has become the preferred high-quality process for mass production of automotive radiators and intercoolers.
With the continuous upgrading of vehicle emission standards and heat management system requirements, high-end automobiles have higher and higher requirements for heat exchanger service life, cleanliness and anti-corrosion performance. Vacuum brazing completely solves the pain points of flux residue corrosion and unstable welding quality of traditional processes, and has become the mainstream process for high-quality automotive heat exchanger manufacturing. It is widely adopted by mainstream automobile supporting factories and has strong industrial promotion value.

Intelligent precise brazing and high-efficiency vacuum process iteration will further improve the manufacturing level of automotive heat exchangers.
In the future, vacuum brazing furnace equipment will develop towards intelligent parameter self-adaptation, high-precision temperature control and energy-saving and efficient vacuum system optimization. The continuous upgrading of flux-free vacuum brazing technology will further reduce product deformation rate and leakage rate, improve heat exchanger heat exchange efficiency and service life, and strongly support the high-quality development of automobile thermal management system manufacturing industry.
