Low-Temperature Vacuum Brazing of Aluminum Alloy: Practical Atmosphere Furnace Process Guide

1. Industry Background: Process Characteristics and Pain Points of Aluminum Alloy Brazing

1.1 Application Value of Aluminum Alloy Precision Brazing
Aluminum alloy low-temperature vacuum brazing is a key precision connection process for lightweight components, achieving high-strength, deformation-free and high-air-tightness welding effects.
Aluminum alloy features low density, high thermal conductivity, good ductility and lightweight advantages, widely used in new energy vehicle thermal management, aerospace lightweight parts, refrigeration equipment, electronic heat sinks and precision mechanical components. Most thin-walled aluminum parts, complex profile structures and multi-layer composite components require integrated brazing assembly. Traditional welding methods easily cause material burnout, large thermal deformation and poor joint sealing. Low-temperature vacuum atmosphere brazing can effectively avoid high-temperature damage to aluminum materials and become the mainstream process for high-precision aluminum alloy component manufacturing.

1.2 Technical Difficulties of Conventional Aluminum Welding Processes
Aluminum alloy’s active chemical properties and low melting point bring great challenges to traditional welding, prone to oxidation, deformation and virtual welding defects.
Aluminum alloy has extremely strong oxygen affinity, and a dense and stable alumina film quickly forms on the surface in atmospheric environment. This oxide layer hinders filler metal wetting and spreading, resulting in incomplete fusion and poor joint compactness. Meanwhile, aluminum alloy has a low melting point and high thermal sensitivity. Conventional high-temperature welding causes excessive thermal stress, leading to severe warping, distortion and size deviation of thin-walled workpieces. In addition, traditional processes require complicated post-treatment, low finished product qualification rate and unstable batch quality, which cannot meet high-standard lightweight component production needs.

1.3 Advantages of Low-Temperature Vacuum Atmosphere Brazing
Low-temperature heating and pure inert atmosphere protection effectively solve aluminum alloy’s oxidation and thermal deformation problems, realizing high-quality batch brazing.
Different from ordinary high-temperature brazing processes, aluminum alloy low-temperature vacuum brazing adopts low-temperature matching filler metal and precise atmosphere control. It removes surface oxide films through vacuum and inert atmosphere, ensures full spreading of brazing filler at low temperature, and avoids high-temperature thermal damage to aluminum substrates. The atmosphere brazing furnace provides stable low-temperature heating and uniform atmosphere environment, which significantly improves joint quality and dimensional stability, and is highly suitable for mass standardized production of precision aluminum components.

2. Core Process Difficulties of Aluminum Alloy Low-Temperature Brazing

2.1 Dense Oxide Film Causes Poor Wetting Performance
Insoluble alumina passivation film on aluminum surface is the primary cause of insufficient brazing fusion and weak joint strength.
A thin but extremely dense oxide film naturally exists on the surface of aluminum alloy. It cannot be completely removed by conventional cleaning and low-temperature heating. In an unprotected atmosphere, residual oxygen will regenerate oxide films continuously, isolating the bonding between filler metal and aluminum matrix. This leads to typical defects such as discontinuous welds, poor wetting, virtual welding and missing welding, seriously affecting the air tightness and structural strength of aluminum alloy components.

2.2 Low Melting Point Makes Temperature Control Extremely Strict
Aluminum alloy’s low softening temperature requires ultra-precise temperature control to avoid substrate overheating and melting.
Compared with copper and stainless steel, aluminum alloy has a much lower softening and melting point. Even a small temperature overrun will cause local overheating, substrate softening and partial melting deformation. Excessively fast heating or uneven temperature field will lead to inconsistent melting and spreading of filler metal, resulting in unstable brazing quality. Therefore, low-temperature brazing must strictly control the temperature range and heating rate, which puts forward higher requirements for furnace temperature uniformity and control accuracy.

2.3 Thin-Wall Structure Is Prone to Thermal Deformation
High thermal conductivity and thin-wall characteristics make aluminum parts sensitive to temperature differences, resulting in severe residual stress and deformation.
Aluminum alloy has fast heat conduction speed and low structural rigidity. Thin-walled heat sinks, profile frames and micro-precision parts are extremely sensitive to temperature changes. Unreasonable heating and cooling curves will produce unbalanced thermal stress, causing warping, bending, shrinkage and torsion deformation. Ordinary furnace equipment cannot achieve low-temperature uniform heating and gradient stress relief, resulting in high defective rate and poor batch consistency in aluminum brazing production.

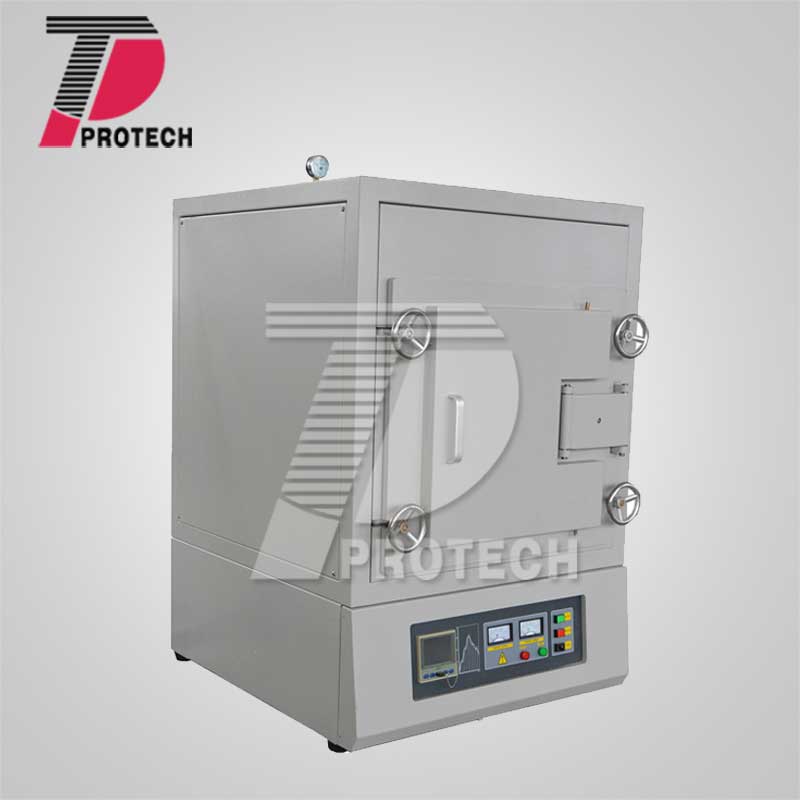

3. Working Principle and Advantages of Atmosphere Brazing Furnace for Aluminum Brazing

3.1 Ultra-Clean Inert Atmosphere Removes Oxidation Barriers
Pure vacuum inert environment decomposes oxide films and prevents secondary oxidation, ensuring full wetting of brazing filler.
Professional atmosphere brazing furnaces realize high vacuum pumping and multi-cycle inert gas replacement before heating, removing air, moisture and residual oxygen in the furnace. The stable low-oxygen atmosphere environment effectively decomposes the original oxide film on the aluminum surface and inhibits secondary oxidation during heating. Without oxide barriers, the low-temperature brazing filler metal can fully spread and infiltrate along the joint gaps, forming dense, smooth and pore-free high-quality brazing joints.

3.2 High-Uniformity Low-Temperature Heating Avoids Substrate Damage
Precise low-temperature constant temperature control matches aluminum alloy process characteristics to prevent softening and deformation.
The atmosphere brazing furnace adopts multi-zone balanced radiation heating and high-precision PID temperature control system. The temperature deviation of the effective working zone is controlled within a small range, realizing uniform low-temperature heating of aluminum workpieces. It avoids local overheating and high-temperature softening of aluminum substrates, ensures that the base metal mechanical properties remain unchanged, and effectively guarantees the dimensional accuracy and structural integrity of thin-walled aluminum parts.

3.3 Gradient Temperature Curve Eliminates Thermal Stress
Segmented heating and slow cooling process releases thermal stress step by step and controls brazing deformation accurately.
Aiming at the high deformation risk of aluminum alloy, the atmosphere brazing furnace supports customized low-temperature programming curves. Slow preheating balances internal and external temperature of workpieces and eliminates instantaneous thermal stress. Stable low-temperature brazing ensures sufficient filler diffusion. Gradient slow cooling after welding uniformly releases residual stress, effectively solving the deformation and size instability problems of aluminum precision components.

4. Practical Operation Process Guide for Aluminum Low-Temperature Vacuum Brazing

4.1 Pre-Welding Cleaning and Workpiece Pretreatment
Thorough surface cleaning and oil removal are the premise of high-quality aluminum brazing.
Before brazing, remove surface oil, dust and oxide residues of aluminum workpieces through ultrasonic cleaning, chemical deoxidation and drying treatment. Clean and dry the brazing filler metal to avoid impurity volatilization and bubble defects during heating. Standard pretreatment ensures good bonding interface between filler metal and aluminum substrate, effectively improving brazing yield and joint compactness.

4.2 Furnace Loading and Positioning Standard Operation
Reasonable workpiece placement and spacing ensure uniform atmosphere and temperature conduction.
Place aluminum workpieces neatly on the material frame according to structural characteristics, avoid stacking and shielding, and reserve uniform gaps for gas circulation and heat radiation. Ensure stable positioning of thin-walled parts to prevent gravity deformation during heating. Standardized furnace loading mode guarantees consistent temperature and atmosphere conditions for all workpieces, laying a foundation for unified batch brazing quality.

4.3 Vacuum Purification and Atmosphere Replacement
Multiple cycles of vacuuming and inert gas replacement create an ultra-low-oxygen brazing environment.
Close the furnace body and start vacuum pumping to extract internal air and humid gas. Adopt multiple positive and negative pressure replacement with high-purity inert gas to reduce furnace oxygen and moisture content to the standard range. Stable pure atmosphere eliminates oxidation interference in low-temperature brazing process and ensures stable wetting performance of brazing filler metal.

4.4 Segmented Low-Temperature Brazing Parameter Setting
Exclusive low-temperature heating curve adapts to aluminum alloy and filler metal characteristics.
Set staged temperature parameters according to aluminum grade and low-temperature filler melting point: low-temperature preheating removes residual moisture and internal stress; medium-temperature transition stabilizes heating rate to avoid temperature difference; low constant-temperature brazing ensures full melting and uniform spreading of filler metal. Strict temperature threshold control avoids substrate softening and melting defects, realizing high-quality metallurgical bonding.

4.5 Post-Welding Gradient Cooling and Discharging Control
Slow gradient cooling prevents secondary deformation and stabilizes workpiece size.
After brazing, avoid rapid cooling. Adopt staged heat preservation and slow cooling process to release internal thermal stress uniformly. When the furnace temperature drops to room temperature, open the door and discharge materials to prevent high-temperature workpieces from contacting air and causing secondary oxidation and deformation. Standard cooling and discharging process ensures stable size, flat appearance and consistent performance of aluminum alloy finished parts.

5. Industry Application and Development Prospect
Aluminum alloy low-temperature vacuum brazing has become the core process for lightweight precision component manufacturing.
With the rapid development of new energy vehicles, aerospace lightweight and high-end refrigeration industries, the demand for high-precision, low-deformation and high-air-tightness aluminum alloy components continues to grow. Low-temperature atmosphere vacuum brazing effectively solves the inherent defects of aluminum welding such as easy oxidation and large deformation, and has become the preferred process for aluminum heat sinks, profile components and lightweight structural parts.

Intelligent low-temperature process optimization will further expand the application scope of aluminum vacuum brazing.
In the future, atmosphere brazing furnaces will realize more refined low-temperature closed-loop control and intelligent unattended operation. Continuous optimization of low-temperature brazing technology will further improve the precision, efficiency and batch stability of aluminum alloy component processing, and support the high-quality development of lightweight manufacturing industry.
