Atmosphere Control for Experimental Electric Furnaces: Inert Gas Protection & Vacuum Setup

In fields such as materials science, metallurgical engineering, and new material R&D, the atmosphere control of experimental electric furnaces directly affects the preparation quality of samples and the accuracy of experimental results. Among them, inert gas protection and vacuum environment establishment are the two most commonly used atmosphere control methods. Their core lies in precisely regulating the gas composition and pressure inside the furnace to prevent samples from undergoing oxidation, nitridation, or other chemical reactions during high-temperature treatment. From a practical perspective, this article details the core principles, equipment configuration, operating procedures, and precautions of the two technologies, providing an actionable guide for researchers and technicians.

I. Practical Key Points of Inert Gas Protection Technology
The core logic of inert gas protection is to use chemically stable gases such as helium (He) and argon (Ar) to displace the air (especially oxygen and nitrogen) inside the furnace, creating an oxygen-free and non-reactive high-temperature environment for samples. This technology is widely used in scenarios such as metal powder sintering, ceramic material calcination, and polymer pyrolysis.

(I) Selection of Inert Gases and Purity Requirements
Different inert gases have significant differences in physical properties and costs, and should be reasonably selected according to experimental needs:
Argon (Ar) : The most cost-effective option, with a density higher than air and excellent displacement performance. It is suitable for most conventional experiments (such as metal sample annealing and alloy preparation). The recommended purity is ≥99.99% (4N grade), and 99.999% (5N grade) is required for high-precision experiments.
Helium (He) : Features strong thermal conductivity and fast diffusion speed, making it suitable for scenarios requiring rapid heating/cooling or where samples have specific requirements for gas diffusivity (such as nanomaterial synthesis). However, it has a higher cost, and the purity requirement is the same as that of argon.
Nitrogen (N₂) : Strictly speaking, it is not an inert gas, but it has stable chemical properties and can be used for samples insensitive to nitrogen (such as some ceramics and glass). It has the lowest cost, and a purity of ≥99.99% is sufficient.
Note: Oxygen and moisture impurities in low-purity gases can cause sample oxidation. A purification device (to remove O₂ and H₂O impurities) should be installed at the outlet of the gas cylinder.

(II) Equipment Configuration and Connection Specifications
Core Equipment : Inert gas cylinder, pressure reducing valve (double-stage pressure reducing valve to ensure stable pressure), flow meter (glass rotor flow meter or mass flow meter for precise control of gas flow rate), gas pipeline (stainless steel pipe or polytetrafluoroethylene pipe to avoid impurity adsorption by the pipeline), experimental electric furnace (equipped with a sealed furnace door and gas inlet/outlet interfaces).
Connection Requirements : Pipe connections adopt ferrule fittings to prevent air leakage; a check valve should be reserved between the cylinder and the electric furnace to prevent backflow of high-temperature gas inside the furnace; a tail gas collection device (such as a fume hood) should be installed at the furnace exhaust port to avoid oxygen deficiency caused by inert gas leakage.

(III) Operating Procedures and Parameter Control
Pretreatment Stage : Close the furnace exhaust port, open the gas inlet valve, and introduce inert gas at a flow rate of 5-10 L/min to displace the air inside the furnace. The displacement time is adjusted according to the furnace volume (usually 10-30 minutes). An oxygen detector can be placed at the exhaust port, and the displacement is completed when the oxygen content is ≤100 ppm.
Heating Stage : Maintain the continuous introduction of inert gas (adjust the flow rate to 2-5 L/min), start the furnace heating program, and set the heating rate according to the sample characteristics (conventional 5-10 ℃/min). During the process, real-time monitor the pressure inside the furnace (maintain a slight positive pressure of 0.01-0.05 MPa) to avoid air infiltration.
Heat Preservation Stage : Maintain the stable flow rate of inert gas and the pressure inside the furnace, and set the heat preservation time according to experimental needs (1-12 hours). If the pressure inside the furnace drops during the experiment, check whether the pipeline is leaking and supplement gas in a timely manner.
Cooling Stage : Turn off the heating power supply, keep the inert gas introduced until the furnace temperature drops to room temperature (or below 200 ℃), then close the gas inlet valve, open the exhaust port, and take out the sample.

(IV) Common Problems and Solutions
Sample Oxidation : May be caused by insufficient gas purity, incomplete displacement, or pipeline leakage. Replace with high-purity gas, extend the displacement time, and check for pipeline joint leakage using soapy water.
Fluctuation of Furnace Pressure : Mostly due to insufficient flow meter accuracy or pressure reducing valve failure. Calibrate the flow meter and replace the damaged pressure reducing valve.

II. Practical Guide for Vacuum Environment Establishment
Vacuum environment establishment involves extracting gas from the furnace using vacuum pumping equipment to make the pressure inside the furnace lower than atmospheric pressure, thereby reducing the impact of gas molecules on the sample. It is suitable for experiments such as vacuum melting, vacuum coating, and high-temperature degassing. According to the vacuum degree requirements, it can be divided into low vacuum (10³-10⁻¹ Pa), medium vacuum (10⁻¹-10⁻⁵ Pa), and high vacuum (≤10⁻⁵ Pa).

(I) Vacuum System Equipment Configuration

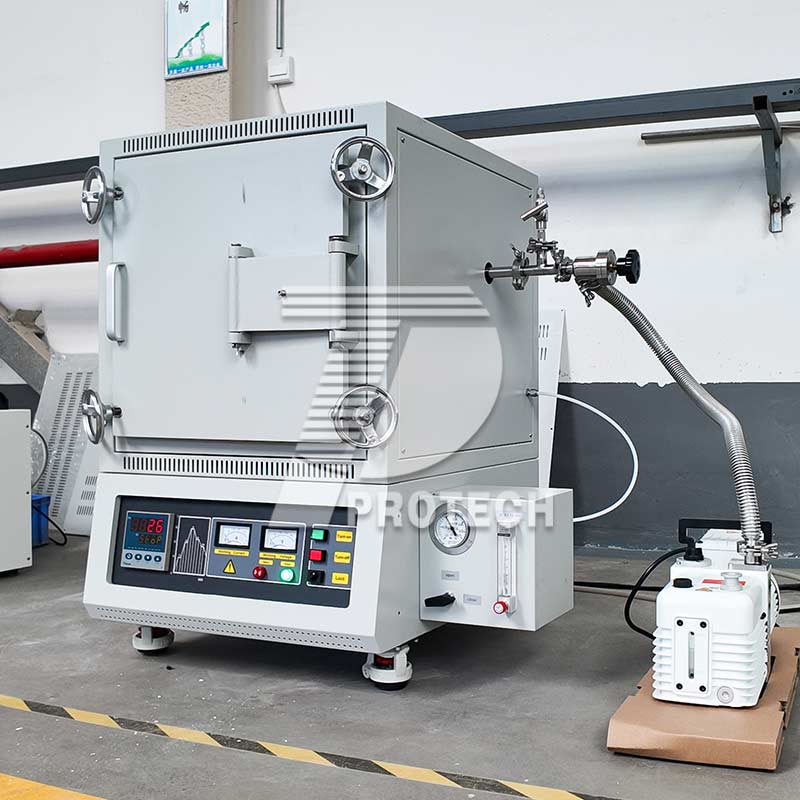

Core Equipment : Experimental electric furnace (equipped with a sealed furnace liner, mostly made of stainless steel or quartz), vacuum pump (mechanical pump as the backing pump; diffusion pump or molecular pump for medium and high vacuum), vacuum valve (gate valve, butterfly valve to control vacuum pumping and pressure maintaining), vacuum gauge (thermocouple vacuum gauge for measuring low and medium vacuum; ionization vacuum gauge for measuring high vacuum), vacuum pipeline (stainless steel bellows to reduce air leakage points).
Auxiliary Equipment : Cold trap (to prevent volatile substances inside the furnace from entering the vacuum pump and protect the pump body), vacuum grease (applied to the furnace door and pipeline interfaces to enhance sealing performance).

(II) Installation and Sealing Inspection of Vacuum System
Installation Specifications : The pipeline between the vacuum pump and the electric furnace should be as short as possible with fewer bends to avoid excessive resistance; the vacuum gauge is installed near the furnace liner to ensure accurate measurement; the cold trap is connected in series between the vacuum pump and the furnace body, and liquid nitrogen or dry ice is added to cool and intercept volatile substances.
Sealing Inspection : Close all valves, start the vacuum pump to pump to low vacuum (around 10³ Pa), close the valve between the vacuum pump and the furnace body, and let it stand for 30 minutes. If the vacuum gauge reading changes ≤10 Pa, the sealing performance is good; if the reading rises significantly, check the furnace door gasket (for aging) and pipeline joints (for looseness), reapply vacuum grease or replace the gasket.

(III) Vacuum Pumping and Pressure Maintaining Operating Procedures
Preliminary Vacuum Pumping : Start the mechanical pump, slowly open the valve between the furnace body and the vacuum pump, first pump to low vacuum (10³-10⁻¹ Pa), and continue for 30 minutes to discharge most of the air and moisture inside the furnace.
High Vacuum Pumping (if required) : If the experiment requires medium and high vacuum, start the diffusion pump (preheating for 30-60 minutes is required) or molecular pump, open the corresponding high vacuum valve, continue to pump to the target vacuum degree (such as 10⁻³-10⁻⁵ Pa), close the valve, and stop the vacuum pump.
Heating and Heat Preservation : Start the furnace heating program, and control the heating rate at 3-8 ℃/min to avoid significant fluctuations in furnace pressure due to temperature rise. Real-time monitor the vacuum degree during heat preservation; if the vacuum degree drops beyond the allowable range, re-pump vacuum.
Cooling and Aeration : After the experiment, turn off the heating power supply, wait for the furnace temperature to drop to room temperature, slowly open the aeration valve (introduce dry air or inert gas to avoid sample oxidation or furnace body damage caused by rapid air entry), and open the furnace door to take out the sample after the pressure inside the furnace balances with atmospheric pressure.

(IV) Safety and Maintenance Points
Safe Operation : Do not open the furnace door during vacuum pumping to prevent air impact; avoid touching high-temperature components (such as the diffusion pump) when the high vacuum system is working; the vacuum pump must be grounded to prevent electric leakage.
Daily Maintenance : Regularly replace the vacuum pump oil (replace the mechanical pump oil every 3-6 months), clean the cold trap and pipeline; inspect gaskets and valves, and replace aging components in a timely manner; the vacuum gauge needs regular calibration to ensure measurement accuracy.

III. Summary of Technology Selection and Application Scenarios
Inert gas protection technology, with its advantages of simple operation, moderate cost, and wide applicability, is ideal for conventional experiments like metal annealing, powder sintering, and ceramic calcination, requiring strict control of gas purity, displacement effectiveness, flow rate, and slight positive pressure to avoid sample oxidation from air infiltration; vacuum environment establishment, which excels at eliminating gas interference and facilitating volatile discharge, is better suited for gas-sensitive experiments such as vacuum melting, coating, and high-temperature degassing, with key precautions including ensuring system airtightness to maintain stable vacuum levels and precisely regulating vacuum parameters and heating rates to prevent pressure fluctuations. Ultimately, both technologies rely on "precise control" and "strict sealing"—selecting the right scheme based on sample properties and experimental requirements, and adhering to operational standards, ensures reliable results, while integrated inert gas-vacuum systems continue to enhance convenience and precision for scientific research.
