New Method for Preparing Reduced Graphene Oxide: An Analysis of Rotary Tube Furnace Process

In the field of materials science, graphene has always been the focus of researchers and the industry due to its excellent electrical, thermal, and mechanical properties. As an important derivative of graphene, reduced graphene oxide (rGO) has broad application prospects in many fields such as energy storage, catalysis, and electronic devices. However, traditional methods for preparing rGO, such as chemical reduction and electrochemical reduction, generally have problems such as complex preparation processes, low product purity, high cost, and difficulty in large-scale production, which seriously restrict the industrial application process of rGO. Against this background, a new method for preparing rGO - the rotary tube furnace process - has emerged, bringing new hope for solving the pain points of traditional preparation methods.

1. Technical Principle of Preparing rGO by Rotary Tube Furnace Process

The rotary tube furnace process for preparing rGO mainly uses graphene oxide (GO) as the precursor. Its core principle is to realize the efficient reduction and structure regulation of GO by utilizing the unique structure of the rotary tube furnace and a controllable reaction environment.

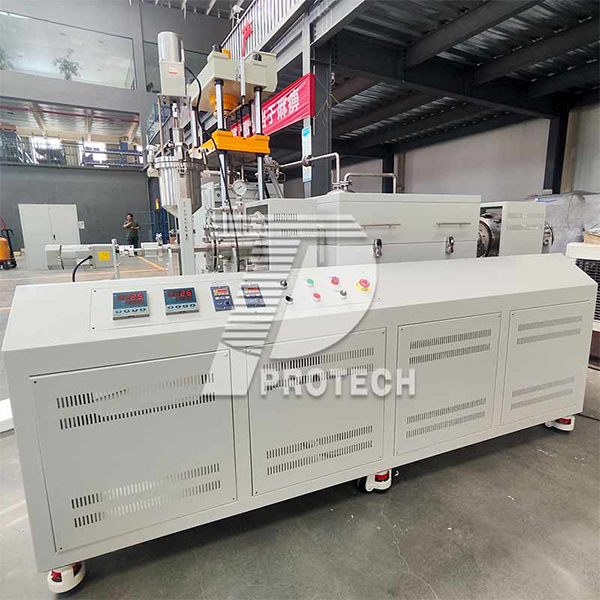

First, GO powder and an appropriate amount of inert gas (such as argon, nitrogen) are introduced into the reaction tube of the rotary tube furnace together. The reaction tube rotates slowly under the drive of a motor. This rotational movement enables the GO powder to be evenly distributed in the reaction tube, avoiding local accumulation, thereby ensuring that each GO particle can fully contact with the reaction atmosphere.

Then, the heating system of the furnace body is used to heat the reaction tube in a gradient manner. During the heating process, the oxygen-containing functional groups (such as hydroxyl, epoxy, carboxyl groups) on the surface of GO will gradually decompose and escape in the form of gases such as carbon dioxide and water. At the same time, in a high-temperature environment protected by inert gas, the carbon skeleton structure of GO will gradually recover, forming rGO with a graphene-like structure.
In addition, the process parameters of the rotary tube furnace, such as temperature, rotation speed, reaction time, and inert gas flow rate, can be precisely controlled. By optimizing these parameters, not only can the reduction degree of rGO be effectively controlled, but also the microscopic morphological characteristics such as its lamellar structure and specific surface area can be regulated, thereby preparing rGO products that meet different application requirements.

2. Advantages of Rotary Tube Furnace Process Compared with Traditional Methods

2.1 High Product Purity
Traditional chemical reduction methods usually require the use of strong reducing agents (such as hydrazine, sodium borohydride, etc.). These reducing agents are not only toxic and dangerous but also easily remain in the product, affecting the performance of rGO. The rotary tube furnace process adopts a physical thermal reduction method. Under the protection of inert gas, the introduction of impurities is effectively avoided, and the purity of the prepared rGO can reach more than 99%.

2.2 Strong Large-Scale Production Capacity
Most traditional preparation methods are limited to small-scale laboratory synthesis and are difficult to achieve industrial large-scale production. The rotary tube furnace process, on the other hand, has good continuity and large-scale production capacity. Its reaction tube can be designed into different lengths and diameters according to production needs. A single equipment can prepare several kilograms of rGO products per hour, and the production scale can be further expanded through the series combination of multiple equipment to meet the large demand for rGO in industrial applications.

2.3 Good Process Controllability
Various process parameters of the rotary tube furnace process, such as temperature, rotation speed, reaction time, and gas flow rate, can be precisely controlled through an advanced control system. Operators can flexibly adjust the process parameters according to the performance requirements of the required rGO to achieve precise control of the product structure and performance. For example, by increasing the reaction temperature and extending the reaction time, the reduction degree of GO can be enhanced, and the conductivity of the product can be improved; by adjusting the rotation speed of the reaction tube, the residence time and mixing degree of GO in the reaction tube can be changed, and the dispersibility of the product can be optimized.

2.4 Environmental Friendliness
In the current context of advocating green and environmentally friendly production, the rotary tube furnace process has significant environmental advantages. This process does not use toxic and harmful chemical reagents throughout the preparation process, and only produces a small amount of harmless gases such as carbon dioxide and water vapor, which can meet the emission standards after simple treatment. At the same time, there is less waste generated during the process, and most of it can be recycled, which conforms to the requirements of green and sustainable development.

3. Application Prospects of rGO Prepared by Rotary Tube Furnace Process

3.1 Energy Storage Field
rGO has a high specific surface area, good conductivity, and excellent electrochemical stability, making it an ideal material for preparing high-performance energy storage devices. The rGO prepared by the rotary tube furnace process can be used as an electrode material for energy storage devices such as lithium-ion batteries and supercapacitors. When compounded with other active substances (such as lithium iron phosphate, ternary materials, etc.), it can effectively improve the conductivity and ion diffusion rate of the electrode, thereby significantly improving the capacity, charge-discharge efficiency, and cycle life of the energy storage device. For example, the capacity of lithium-ion batteries using rGO prepared by this process as a conductive additive can reach 1.2-1.5 times that of traditional batteries, and the cycle life exceeds 2000 times.

3.2 Catalysis Field
The surface of rGO has abundant active sites and excellent electron transport performance, so it has broad application prospects in the field of catalysis. The rotary tube furnace process can prepare rGO with specific morphology and structure by adjusting process parameters, further enhancing its catalytic performance. For example, by compounding rGO with metal nanoparticles (such as platinum, palladium, gold, etc.), high-efficiency catalysts can be prepared for the oxygen reduction reaction of fuel cells and organic synthesis reactions. Experiments show that the rGO-based catalysts prepared by this process have significantly better catalytic activity and selectivity than traditional catalysts, and have a longer service life.

3.3 Electronic Devices Field
In the field of electronic devices, the high conductivity and good flexibility of rGO make it an important material for preparing flexible electronic devices and transparent conductive films. The rGO prepared by the rotary tube furnace process has good dispersibility and uniformity, and can be prepared into high-quality film materials through methods such as solution coating and inkjet printing. This film material not only has excellent conductivity (resistivity can be as low as below 10-6 Ω·cm) but also has good light transmittance (light transmittance can reach more than 85%) and flexibility. It can be widely used in electronic devices such as flexible displays, touch screens, and solar cells, providing strong support for the lightweight and flexible development of electronic devices.

3.4 Composite Materials Field
Compounding rGO with polymers, metals, ceramics, and other materials can prepare composite materials with excellent performance. The rGO prepared by the rotary tube furnace process has good compatibility and dispersibility, and can fully combine with the matrix material, significantly improving the mechanical, thermal, and electrical properties of the composite material. For example, adding rGO to epoxy resin can increase the tensile strength of the epoxy resin composite by 30%-50% and the thermal conductivity by 2-3 times; compounding it with aluminum alloy can prepare lightweight and high-strength metal matrix composites, which are used in aerospace, automobile manufacturing, and other fields to reduce the weight of components and improve the performance of components.

4. Conclusion
As a new method for preparing rGO, the rotary tube furnace process, with its significant advantages such as high product purity, strong large-scale production capacity, good process controllability, and environmental friendliness, effectively solves many pain points of traditional preparation methods and lays a solid foundation for the industrial production and wide application of rGO. With the continuous optimization and improvement of this process technology and in-depth exploration in various application fields, it is believed that the rotary tube furnace process will play an important role in promoting the development of the rGO industry and bring new opportunities for the progress of the materials science field and the upgrading of related industries.
For enterprises and research institutions engaged in the R&D, production, and application of rGO, adopting the rotary tube furnace process is undoubtedly an important choice to enhance product competitiveness and expand market space. In the future, we look forward to seeing more innovative achievements based on the rotary tube furnace process emerge, jointly promoting the development and application popularization of rGO technology.
