Characteristics of Nitrogen Filled Vacuum Tube Furnace and Its Advantages in Heat Treatment Process

The nitrogen-filled vacuum tube furnace is a device that combines vacuum technology with heat treatment technology. It can be filled with nitrogen during the material processing process to create a specific atmosphere. The following is a detailed analysis of the nitrogen-filled vacuum tube furnace:

nitrogen filled vacuum tube furnace

1. Working principle

The working principle of the nitrogen-filled vacuum tube furnace mainly includes the following steps:

① Vacuuming: The air in the furnace is extracted by a vacuum pump to achieve a certain vacuum degree to avoid adverse reactions between the material and oxygen or other gases in the atmosphere at high temperatures.

② Nitrogen filling: After vacuuming, nitrogen is filled into the furnace to create an inert atmosphere or for oxidation protection.

③ Heating treatment: The material is heated by heating elements (such as resistance wire, silicon carbon rod, silicon molybdenum rod, etc.) to reach the required temperature for heat treatment.

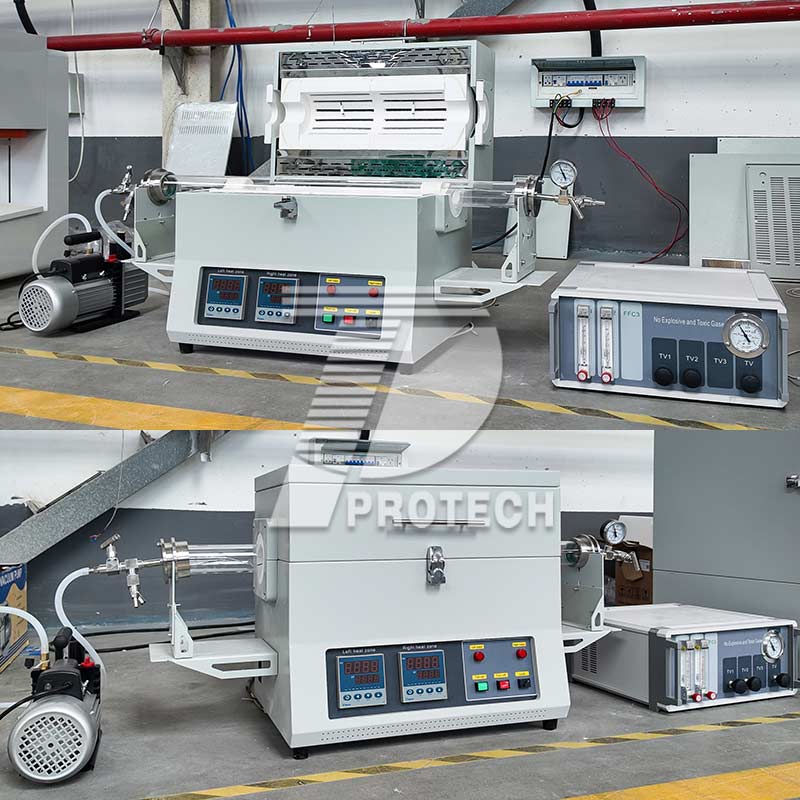

The figure below is a vacuum atmosphere tube furnace

2. Structural composition

① Furnace body: the part that holds the material and heating elements.

② Heating element: a component that provides heat, usually located inside the furnace.

③ Temperature control system: used to accurately control the temperature in the furnace to ensure the accuracy and repeatability of the heating process.

④ Vacuum system: including vacuum pumps and vacuum valves, etc., used to evacuate and maintain the vacuum degree in the furnace.

⑤ Gas delivery system: used to fill the furnace with nitrogen or other required gases.

3. Features and advantages

① Accurate temperature control: The nitrogen-filled vacuum tube furnace is equipped with a high-precision temperature control system, which can achieve automatic temperature control and high-precision temperature regulation to meet the heat treatment needs of various materials.

② High vacuum degree: A high vacuum degree can be achieved in the furnace, which effectively prevents the material from being oxidized and contaminated during the heating process, and improves the purity and quality of the product.

③ Controllable atmosphere: Nitrogen or other inert gases can be introduced according to the needs of experiments or production to create different chemical environments to meet different process requirements.

④ Energy saving and high efficiency: Due to good thermal insulation and sealing properties, energy loss is small and the energy saving effect is significant.

⑤ Safe and reliable: equipped with a variety of safety protection devices, such as over-temperature alarm, over-current protection, leakage protection, etc., to ensure the safety of the operation process.

4. Application scenarios

Nitrogen-filled vacuum tube furnaces are widely used in many fields, including but not limited to:

① Automobile manufacturing: used for heat treatment of automobile parts, such as quenching and tempering of gears, bearings, shafts and other parts.

② Electronics and semiconductors: used for heat treatment processes such as annealing and oxidation for manufacturing integrated circuits, solar panels and other products.

③ New energy: used for heat treatment of key materials such as lithium-ion batteries and fuel cells, such as sintering and annealing of positive and negative materials.

④ Biomedical engineering: can be used for the preparation and processing of biomaterials, such as sintering of bioceramics, preparation of biosensors, etc.

5. Precautions

① Operation and maintenance: The operation and maintenance of nitrogen-filled vacuum tube furnaces require professionals to ensure the normal operation of the equipment and extend its service life.

②Safety protection: During the operation, the safety operating procedures should be strictly followed to ensure the safety of personnel and equipment.

③Equipment cost: The manufacturing and maintenance costs of nitrogen-filled vacuum tube furnaces are relatively high, and enterprises should fully consider the budget and actual needs when purchasing.

In summary, the nitrogen-filled vacuum tube furnace is a powerful and widely used heat treatment equipment with the advantages of precise temperature control, high vacuum, controllable atmosphere, energy-saving and high efficiency, and safety and reliability. It plays an important role in many fields.
