What should be noted during sintering in a muffle furnace?

When using a muffle furnace for sintering, there are many key points that need to be noted to ensure the success of the sintering process and the quality of the final product.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

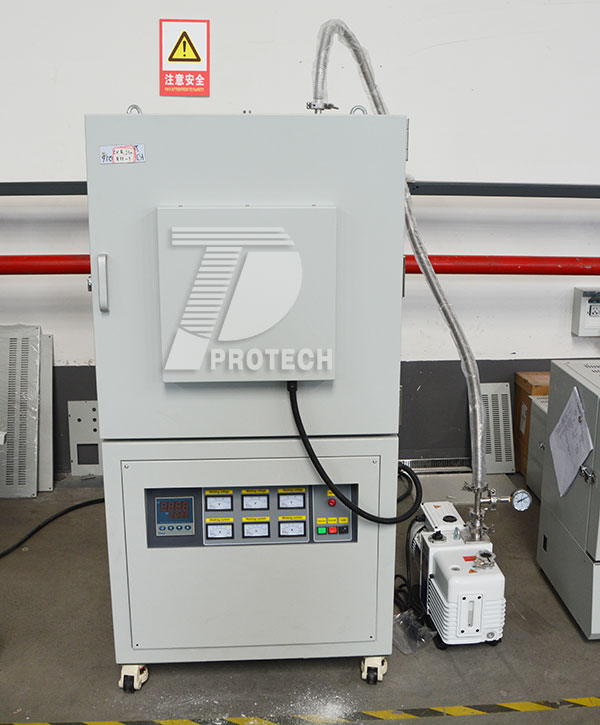

Mini muffle furnace for sintering (click on image to view product details)9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Mini muffle furnace for sintering (click on image to view product details)
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1. Temperature control9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature setting: According to the sintering temperature requirements of the material, correctly set the heating curve and maximum temperature of the muffle furnace. The sintering temperature range of different materials varies and must be strictly operated according to the process requirements.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature uniformity: Ensure uniform temperature inside the furnace to avoid material performance inconsistencies caused by uneven temperature. Regularly calibrate the temperature controller and temperature sensor to maintain their accuracy.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

2. Heating and cooling rates9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Heating rate: Control the heating rate to avoid excessive heating causing internal stress and cracks in the material. In general, the heating rate should be within the range of tens of degrees per hour.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Cooling rate: Equally important is to control the cooling rate to avoid thermal stress and cracks caused by rapid cooling. It is usually recommended to use natural cooling or follow the cooling rate required by the process.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

3. Atmosphere control9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Atmosphere selection: Select an appropriate atmosphere (such as air, nitrogen, hydrogen, vacuum, etc.) based on the properties of the sintered material. Some materials are prone to oxidation at high temperatures and require sintering in inert or reducing gases.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Atmosphere flow rate: Control the gas flow rate to ensure stable atmosphere in the furnace. Excessive or insufficient gas flow rate may affect the sintering quality.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

4. Loading method9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Loading capacity: Reasonably control the loading capacity of a sintering process to avoid uneven temperature distribution in the furnace caused by excessive loading. Excessive loading may lead to a decrease in thermal conductivity efficiency.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Workpiece placement: Workpieces should be evenly distributed within the furnace to avoid stacking or contact with the furnace wall. High temperature resistant trays or brackets can be used to ensure air circulation around the workpiece.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

5. Cleaning and maintenance9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Furnace cleaning: Regularly clean the furnace to prevent residue from affecting sintering quality. Especially for sintering of different materials, cross contamination should be avoided.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Equipment maintenance: Regularly inspect and maintain various components of the muffle furnace, including heating elements, temperature control system, and atmosphere control system, to ensure their normal operation.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

6. Safety measures9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Protective equipment: Protective gloves, goggles, and other protective equipment should be worn during operation to prevent high-temperature burns and harmful gas injuries.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Ventilation: Ensure that the laboratory or operating environment has a good ventilation system and timely discharge of harmful gases.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Emergency measures: Familiarize oneself with the emergency stop and fault handling methods of equipment to ensure quick response in case of emergencies.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

7. Process records9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Parameter recording: Detailed recording of the process parameters for each sintering, including temperature rise curve, insulation time, atmosphere type, and flow rate.9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Quality monitoring: Regularly inspect the quality of sintered products, accumulate experience, and gradually optimize the sintering process.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

8. Pre sintering treatment9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Material pretreatment: Before sintering, necessary pretreatment is carried out on the material, such as powder mixing, compression molding, etc., to ensure the smooth progress of the sintering process and the quality of the final product.
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

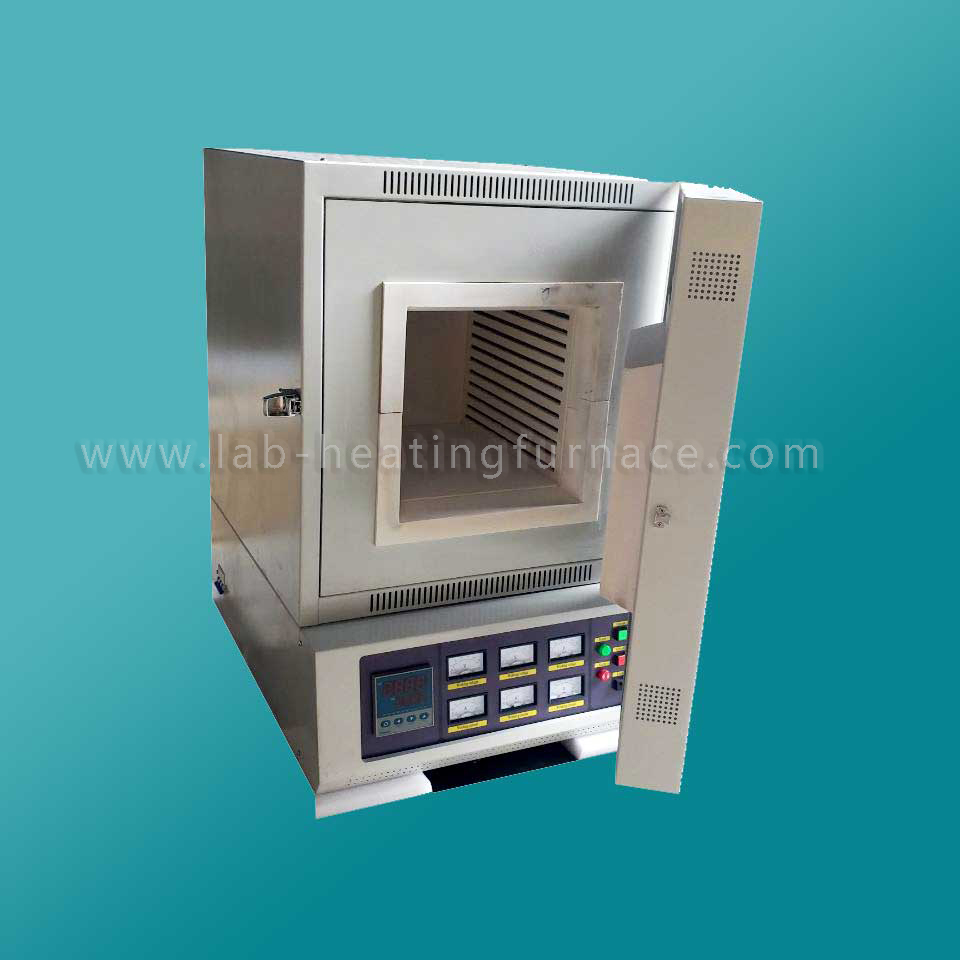

A multi sided heating muffle furnace that can be used for sintering, which adopts a six sided heating temperature field for more uniform heating (click on the picture to view product details)9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
A multi sided heating muffle furnace that can be used for sintering,9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
which adopts a six sided heating temperature field for more uniform heating (click on the picture to view product details)
9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

By strictly controlling the above links, the success rate and product quality of the muffle furnace sintering process can be improved, ensuring the stability and consistency of material properties.Click to learn more muffle furnace! Or click on online customer service to learn more about product information!9UvMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
