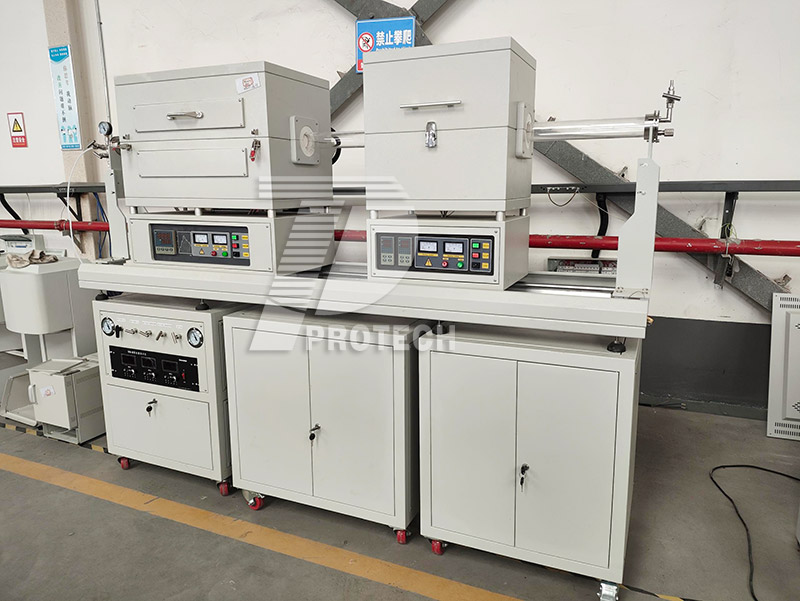

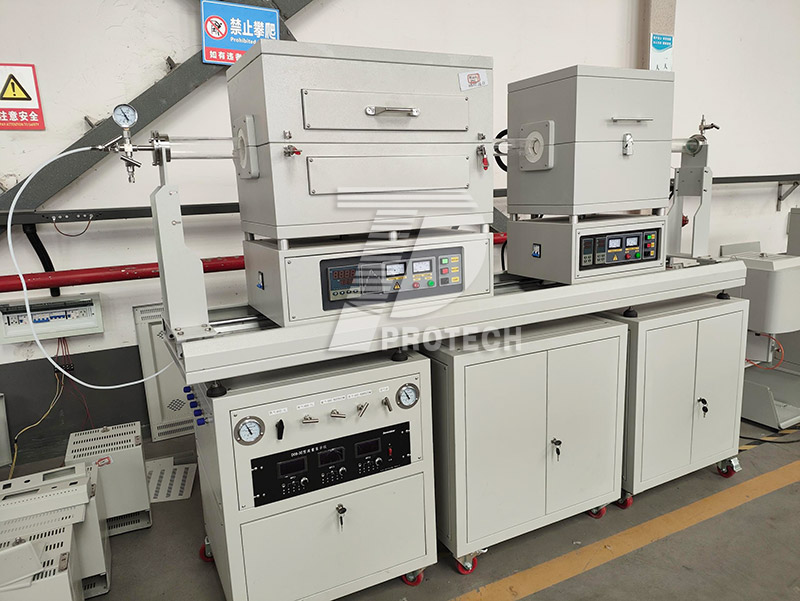

CVD Double Furnace Sliding Tube Furnace
model:PT-T1200-S60LK2

CVD Double Furnace Sliding Tube Furnace

    Application:  CVD Double Furnace Sliding Tube Furnace is composed of a 1400°C tube furnace, a 1200°C tube furnace and a gas system. The hearth is made of high-quality high-purity alumina polycrystalline fiber. The material has good thermal insulation performance.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Product description:EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

PT-T1200-S60LK2 sliding tube furnace can heat samples in different environments such as vacuum, atmosphere, and air. It is mainly used for rapid annealing, silicidation, diffusion, crystallization and densification of various materials.EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac



Main product advantages:EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(1).Double-layer steel structure with cooling fan.EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(2). A pair of sliding rails are installed on the bottom of the furnace, and the furnace can be moved left and right manually.EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(3). Install vacuum flange and mechanical pressure gauge, ready for immediate use.EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac


1400℃ tube furnace part
Furnace structure Double-layer shell structure, equipped with cold air system, automatic cooling furnace shell temperature does not exceed 50 ℃
Furnace material High-quality high-purity alumina polycrystalline fiber solidified furnace with vacuum adsorption molding technology from Japan. The material has good thermal insulation performance, high reflectivity, and balanced temperature field.
maximum temperature 1400℃
continuous working temperature ≤1300℃
Heating rate Recommended ≤10°C/min, the fastest heating rate is 20°C/min
Furnace tube material Depending on the temperature of use, replace the tubes of different materials
Furnace tube size Outer diameter: 60mm
Heating zone length 500mm
Temperature Control System The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functionsEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Adopt PID method to adjust temperature control, and can set 30 heating and cooling programsEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Temperature control accuracy ±1ºCEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. With over-temperature protection and burnout protectionEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. The instrument has the function of temperature self-tuning
Heating element High temperature silicon carbide rod
Temperature measuring element S type thermocouple
Working power AC220V,50Hz
rated power 5KW(subject to actual power)
sliding device Cr-plated thick steel plate two-way slide rails can realize the movement of the tube furnace to achieve rapid heating and coolingEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Shared slideway with 1200℃ tube furnace
1200℃ tube furnace part
Furnace structure Double-layer shell structure, equipped with cold air system, automatic cooling furnace shell temperature does not exceed 50 ℃
Furnace material High-quality high-purity alumina polycrystalline fiber solidified furnace with vacuum adsorption molding technology from Japan. The material has good thermal insulation performance, high reflectivity, and balanced temperature field.
continuous working temperature ≤1100℃
Heating rate Recommended ≤10°C/min, the fastest heating rate is 20°C/min
Furnace tube size Φ60mm (The length is subject to the actual temperature)
Heating zone length 300mm
Temperature Control System The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functionsEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Adopt PID method to adjust temperature control, and can set 30 heating and cooling programsEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Temperature control accuracy ±1ºCEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. With over-temperature protection and burnout protectionEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. The instrument has the function of temperature self-tuning
Heating element Molybdenum alloy resistance wire
Temperature measuring element K type thermocouple
Working power AC220V,50/60Hz
rated power 3KW (subject to actual power)
sliding device Cr-plated thick steel plate two-way slide rails can realize the movement of the tube furnace to achieve rapid heating and coolingEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Shared slideway with 1400℃ tube furnace
Flange seal The 1400°C tube furnace and the 1200°C tube furnace share a quartz tube and slideway, the two ends of the quartz tube are sealed with stainless steel flanges, the left flange has an air inlet, and the right flange is an air outlet
Air system part
Mass flowmeter Three-way precision mass flowmeter: digital display, automatic control of gas flow.EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
MFC1 Range: 0-500 sccm (range optional)EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
MFC2 range: 0-500 sccm (range optional)EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
MFC3 range: 0-500 sccm (range optional)EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Air way: 3 wayEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Flow accuracy: 0.2%EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Inlet and outlet ports: 1/4" ferrulesEzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Each gas path has an independent stainless steel needle valve control.EzmMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The gas flow is adjusted by the knob on the control panel.
Standard configuration 1 host, 1 set of gas system, 1 set of flange, 1 piece of quartz tube, 2 pieces of furnace plug, 1 piece of crucible hook, 1 pair of high-temperature gloves, 1 copy of instruction manual, 1 copy of certificate and warranty card
