PT-V1200 Vertical Fluidized Bed Furnace
model:PT-V1200

PT-V1200 Vertical Fluidized Bed Furnace

    Application:  PT-V1200 is a vertical fluidized bed tube furnace, which is specially designed for CVD experiments of solid vapor deposition. The furnace tube is high-purity quartz special-shaped, with a quartz mesh embedded and fixed in the furnace tube. Powder 2 is feeded in on this mesh from top of the tube. The other mesh is fixed on the movable flange holder part. Then introduce the Nitrogen and Acetylene to blow the the powder 1 gas to pass through the above mesh and arrive at the coating reacting area, to blow up the Powder 2 particles in the reacting area for deposition experiments.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech Zhengzhou Protech
Detailed Parameters of the Product
r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Brief Introduction:  r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
PT-V1200 is a vertical fluidized bed tube furnace, which is specially designed for CVD experiments of solid vapor deposition. The furnace tube is high-purity quartz special-shaped, with a quartz mesh embedded and fixed in the furnace tube. Powder 2 is feeded in on this mesh from top of the tube. The other mesh is fixed on the movable flange holder part. Then introduce the Nitrogen and Acetylene to blow the the powder 1 gas to pass through the above mesh and arrive at the coating reacting area, to blow up the Powder 2 particles in the reacting area for deposition experiments.r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical Parameter:
Vertical Tube Furnace Part
Model PT-V1200 Vertical Fluidized Bed Furnace
Heat zone length 300+300mm, two heat zones (Can be customized according to customer needs)
Tube size Φ50*1200mm (Can be customized according to customer needs)
Tube material High-purity quartz tube with built-in 5-20um mesh (customized)
Working temperature ≦1100℃
Max. Temperature 1200℃
Thermocouple N type
Temperature Control System Intelligent 30-segment PID automatic control via SCR power control and automatic tuning function.r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Built-in protection for the over-heated and broken thermocouple.
Temperature Control accuracy ±1℃
Heating Rate 0-20ºC/min(suggestion: 0-10ºC/min)
Heating Element Resistance wire Fe-Cr-Al Alloy doped by Mo
Chamber Material Ceramic fiber
Vacuum Flange Stainless Steel vacuum flange with valves and needles
Vacuum Pump Rotary Vane Vacuum Pump
Gas Route Two Way Float flow meters for Nitrogen and Acetylene, adjustable gas flow to fluidize the material. Flow range: 0-1L/min.
Warranty One year limited warranty with lifetime technical supportr3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Consumable parts such as heating elements, quartz tube and flanges are not covered by the warranty)
r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Some vertical fluidized bed equipment we have made:

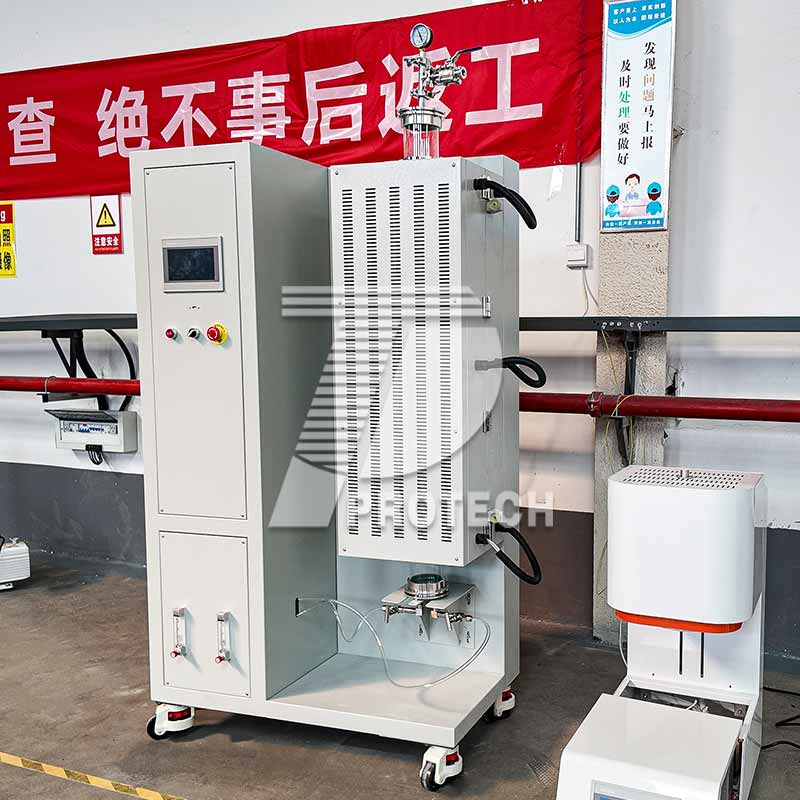

Vertical Fluidized Bed Furnacer3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

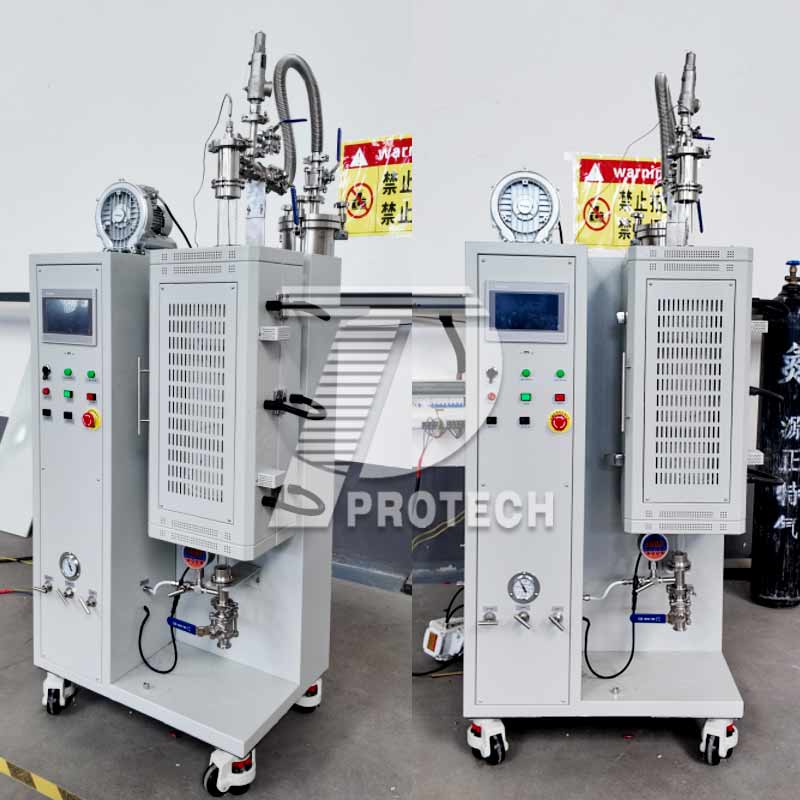

vertical fluidized bed r3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

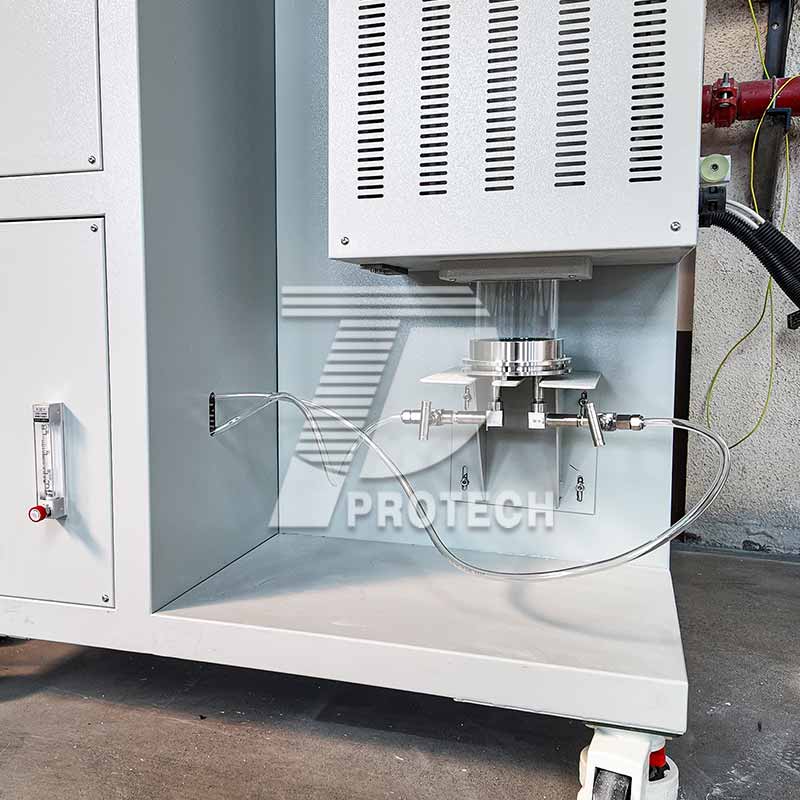

 vertical fluidized bed  systemr3WMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vertical fluidized bed system
