High temperature rotary tube furnace with replaceable furnace tubes
model:PT-TX1300-L100LK1

High temperature rotary tube furnace with replaceable furnace tubes

    Application:  This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Specific Introduction:

This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell. The room is equipped with an air cooling system that can heat up quickly; the furnace body can be tilted 0-10° (Button control), and the furnace tube can rotate 360 degrees.Click to view more Inclined rotary tube furnace!or consult online customer service for detailed product information!OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

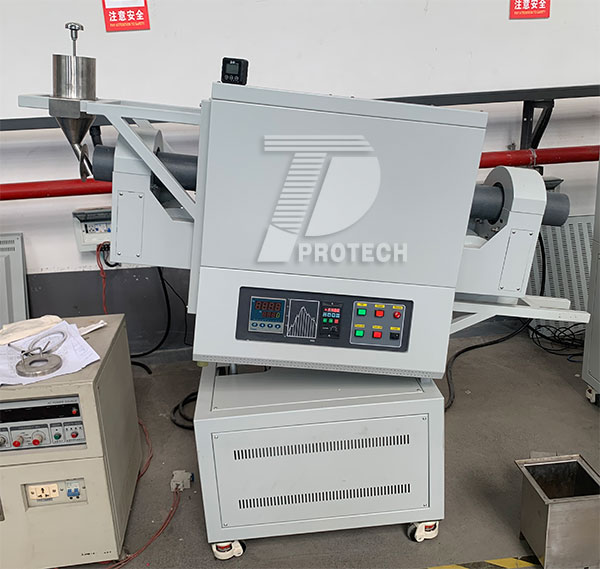

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubesOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

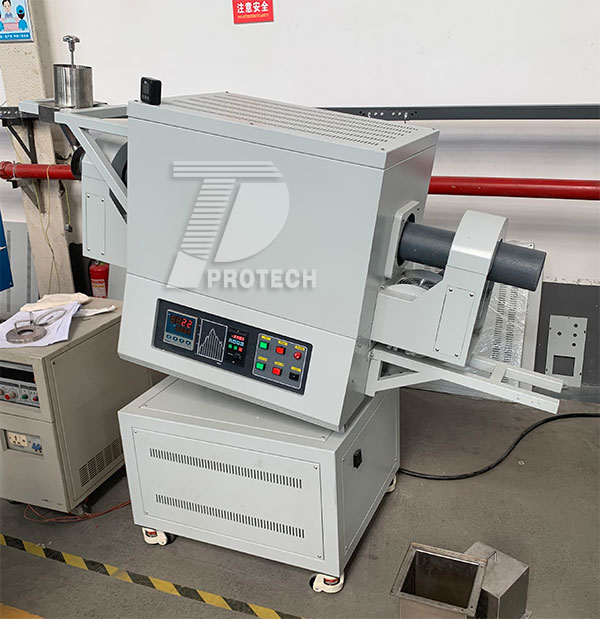

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubesOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:
Structure

Carbon steel outside shellOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Two layers of Alumina fiber boardsOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
  · 1400deg.C alumina fiber OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
  ·  1600deg.C alumina fiber OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Cooling fans
OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Tube

Alumina ceramic tubeOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
OD.100mm,ID.92mm×Len.1260mmOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Quartz tubeOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
OD.100mm,ID.92mm×Len.1260mmOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Silicon carbide tubeOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
OD.100mm,ID.80mm×Len.1260mm
OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Sealing

SS 316 Flanges with rubberOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(With analog vacuum gauge)
OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Working Temperature

≦1300℃ ( Alumina ceramic tube)OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
≦1300℃ ( Silicon Carbide Tube)OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
≦1100℃ ( Quartz tube)
OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature sensor

S-type Thermocouple
OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature Control

PID automatic control via SCR (Silicon controlled rectifier)OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Power control with phase angle fired, current limiting resistorOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
30 programmable segments for precise controlOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Over temperature protection and alarm allows for operation without attendant
Heating Rate 0~15℃/min (suggestion: ≤10℃/min)
Temperature control Accuracy  +/-1℃
Heating Element SiC heating rods
Rotary Speed  0-30RPM variable (speed regulator)
Tilting Angle  0-10°variable (Button control)
Working Voltage AC 220V, Single Phase, 50 Hz
Max. Power  5.0 kW
Warranty Period 1 year (Consumable parts such as tube,heating rods and thermocouple are not covered)

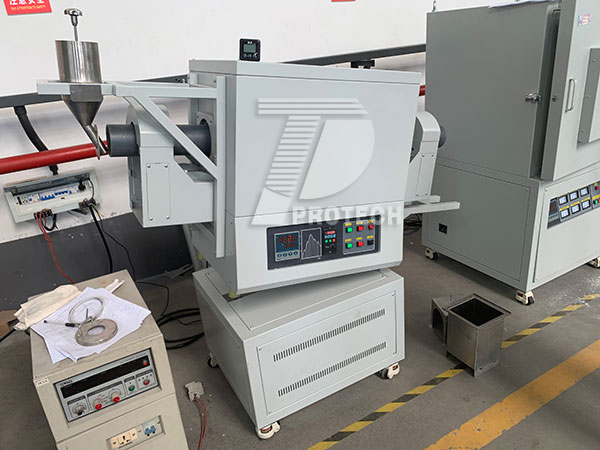

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubesOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubesOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 OF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubesOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Actual photo of a high-temperature rotating tube furnace with replaceable furnace tubesOF3Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
